| Prod Model: |
photovoltaic DC link capacitor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
500VDC~15000VDC |
| Operating Temperature: |
-40°c~+85°c |
| Capacitor Deviation: |
±5% ±10% |
| Capacitor Case: |
Aluminum/Plastic/304 Stainless Steel |
| Capacitor Standards: |
IEC61071;IEC61881 |
| Case And Material: |
Aluminum Case,Resign Filled |
| Using: |
Wind Poer,Solar Power and Ect. |
| Size: |
According to Customer Requirement Design |
| Producing Time: |
After The Order About 7days. |
| Factory: |
Anhui Safe Electronics Co.,Ltd. |
| Type: |
Polypropylene Capacitor |
| Application: |
Inverter Welder, Potovoltaic Power;Solar Plant |
| Package Type: |
Through Hole |
| Capacitance: |
0.47UF~12000UF |
| Filter: |
DC Link |
Product Description

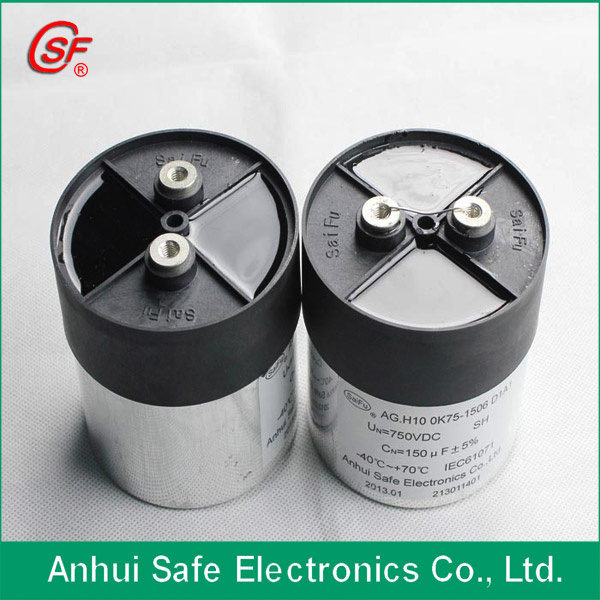

DC-LINK Capacitor(photovoltaic wind power cylinder)
Features:
1.Used in DC-Link circuits, Can replace electrolytic capacitor
2.Low ESR, high ripple current handling capabilities
3. Low Inductance
4. Self-healing property
5. Long lifetime
6. Aluminum case, resin Filled
Applications
1.Used in wind power, solar power or other industrial frequency converter
2.Used in DC support filter circuit
Technical Specification:
| Cn | Rs | Imax | Î | WN | Ls | D x L | Drawing | m | Order No. |
| (uf) | (mΩ) | (A) | (KA) | (Ws) | (nH) | (mm) |
| (Kg) |
|
| Un 700VDC Us 1050v Ur 200V U t-t 1050 VDC Ut-c 3000 VAC |
| 370 | 2.1 | 40 | 2.0 | 86 | 50 | Φ76 x 130 | A,B,C,D | 0.7 | AG.H13 0K70-3706D76 |
| 440 | 1.8 | 40 | 2.3 | 103 | 50 | Φ76 x 145 | A,B,C,D | 0.8 | AG.H14 0K70-4406D76 |
| 470 | 1.7 | 55 | 2.5 | 110 | 40 | Φ86x 130 | A,B,C,D | 0.9 | AG.H13 0K70-4706D86 |
| 560 | 1.4 | 40 | 3.0 | 132 | 60 | Φ76 x 181 | A,B,C,D | 1.0 | AG.H18 0K70-5606D76 |
| 590 | 1.3 | 55 | 3.1 | 137 | 40 | Φ86x 145 | A,B,C,D | 1.0 | AG.H14 0K70-5906D86 |
| 730 | 1.1 | 55 | 3.9 | 171 | 50 | Φ86x 181 | A,B,C,D | 1.2 | AG.H18 0K70-7306D86 |
| 1030 | 1.0 | 55 | 5.1 | 252 | 70 | Φ86x 225 | A,B,C,D | 1.5 | AG.H22 0K70-1037D86 |
Cn
(uf) | Rs
(mΩ) | Imax
(A) | Î
(KA) | WN
(Ws) | Ls
(nH) | D x L
(mm) | Drawing | m
(Kg) | Order No. |
| Un 900VDC Us 1350v Ur 200V U t-t 1350 VDC Ut-c 3000 VAC |
| 350 | 2.1 | 40 | 2.0 | 148 | 50 | Φ76 x 130 | A,B,C,D | 0.7 | AG.H13 0K90-3506D76 |
| 410 | 1.2 | 40 | 2.3 | 178 | 50 | Φ76 x 135 | A,B,C,D | 0.8 | AG.H13 0K90-4106D76 |
| 470 | 1.0 | 55 | 2.5 | 191 | 40 | Φ86x 135 | A,B,C,D | 0.9 | AG.H13 0K90-4706D86 |
| 540 | 1.4 | 40 | 3.0 | 229 | 60 | Φ76 x 181 | A,B,C,D | 1.0 | AG.H18 0K90-5406D76 |
| 560 | 1.3 | 55 | 3.1 | 238 | 40 | Φ86x 145 | A,B,C,D | 1.0 | AG.H14 0K90-5606D86 |
| 700 | 1.1 | 55 | 3.9 | 297 | 50 | Φ86x 181 | A,B,C,D | 1.2 | AG.H18 0K90-7006D86 |
| 1020 | 1.0 | 60 | 5.1 | 413 | 70 | Φ86x 225 | A,B,C,D | 1.5 | AG.H22 0K90-1027D86 |
| Un 1100VDC Us 1650v Ur 250V U t-t 1650 VDC Ut-c 3000 VAC |
| 240 | 3.3 | 50 | 1.5 | 170 | 50 | Φ76 x 130 | A,B,C,D | 0.7 | AG.H13 1K10-2406D76 |
| 300 | 2.6 | 50 | 1.9 | 216 | 60 | Φ76 x 145 | A,B,C,D | 0.8 | AG.H14 1K10-3006D76 |
| 320 | 2.4 | 65 | 2.0 | 232 | 40 | Φ86x 130 | A,B,C,D | 0.9 | AG.H13 1K10-3206D86 |
| 380 | 2.2 | 50 | 2.3 | 270 | 60 | Φ76 x 181 | A,B,C,D | 1.0 | AG.H18 1K10-3806D76 |
| 400 | 2.0 | 65 | 4.2 | 242 | 50 | Φ86x 156 | A,B,C,D | 1.2 | AG.H15 1K10-4006D86 |
| 500 | 1.5 | 70 | 6.0 | 303 | 60 | Φ86x 186 | A,B,C,D | 1.3 | AG.H18 1K10-5006D86 |
| 600 | 1.6 | 60 | 4.2 | 363 | 70 | Φ86x 225 | A,B,C,D | 1.5 | AG.H22 1K10-6006D86 |
| 1200 | 0.9 | 100 | 7.8 | 726 | 80 | Φ120x 230 | A,B,C,D | 2.5 | AG.H23 1K10-1207D120 |
| Un 1200VDC Us 1800v Ur 250V U t-t 1800 VDC Ut-c 3000 VAC |
| 320 | 2.5 | 62 | 2.88 | 230 | 65 | Φ76x 155 | A,B,C,D | 1.1 | AG.H15 1K20-3206D76 |
| 420 | 1.8 | 65 | 2.97 | 238 | 50 | Φ86x 175 | A,B,C,D | 1.2 | AG.H17 1K20-4206D86 |
| 470 | 1.7 | 65 | 4.00 | 338 | 60 | Φ86x 195 | A,B,C,D | 1.5 | AG.H19 1K20-4706D86 |
| Un 1300VDC Us 1950v Ur 300V U t-t 1950 VDC Ut-c 3000 VAC |
| 160 | 2.1 | 40 | 1.8 | 138 | 50 | Φ76 x 130 | A,B,C,D | 0.7 | AG.H13 1K30-1606D76 |
| 200 | 2.2 | 40 | 2.0 | 168 | 60 | Φ76 x 145 | A,B,C,D | 0.8 | AG.H14 1K30-2006D76 |
| 220 | 2.0 | 50 | 2.2 | 185 | 40 | Φ86x 130 | A,B,C,D | 0.9 | AG.H13 1K30-2206D86 |
| 250 | 2.1 | 40 | 2.4 | 208 | 60 | Φ76 x 181 | A,B,C,D | 1.0 | AG.H18 1K30-2506D76 |
| 270 | 1.4 | 50 | 2.6 | 227 | 50 | Φ86x 145 | A,B,C,D | 1.0 | AG.H14 1K30-2706D86 |
| 330 | 1.6 | 50 | 3.0 | 281 | 60 | Φ86x 181 | A,B,C,D | 1.2 | AG.H18 1K30-3306D86 |
| 460 | 2.1 | 60 | 4.1 | 390 | 70 | Φ86x 225 | A,B,C,D | 1.5 | AG.H22 1K30-4606D86 |
Cn
(uf) | Rs
(mΩ) | Imax
(A) | Î
(KA) | WN
(Ws) | Ls
(nH) | D x L
(mm) | Drawing | m
(Kg) | Order No. |
| Un 1500VDC Us 2250v Ur 300V U t-t 2250 VDC Ut-c 3000 VAC |
| 110 | 2.1 | 35 | 1.6 | 133 | 50 | Φ76 x 130 | A,B,C,D | 0.7 | AG.H13 1K50-1106D76 |
| 140 | 2.2 | 35 | 2.0 | 159 | 60 | Φ76 x 145 | A,B,C,D | 0.8 | AG.H14 1K50-1406D76 |
| 150 | 1.8 | 45 | 2.2 | 174 | 40 | Φ86x 130 | A,B,C,D | 0.9 | AG.H13 1K50-1506D86 |
| 190 | 1.7 | 35 | 2.8 | 217 | 60 | Φ76 x 181 | A,B,C,D | 1.0 | AG.H18 1K50-1906D76 |
| 250 | 1.3 | 45 | 3.5 | 278 | 50 | Φ86x 181 | A,B,C,D | 1.2 | AG.H18 1K50-2506D86 |
| 345 | 1.9 | 60 | 5.0 | 389 | 70 | Φ86x 225 | A,B,C,D | 1.5 | AG.H22 1K50-3456D86 |
| Un 1800VDC Us 2700v Ur 400V U t-t 2700 VDC Ut-c 3000 VAC |
| 120 | 1.6 | 50 | 1.8 | 198 | 50 | Φ86 x 130 | A,B,C,D | 0.9 | AG.H13 1K80-1206D86 |
| 140 | 2.0 | 40 | 2.0 | 226 | 60 | Φ76 x 181 | A,B,C,D | 0.9 | AG.H18 1K80-1406D76 |
| 185 | 1.4 | 50 | 2.5 | 299 | 60 | Φ86 x 181 | A,B,C,D | 1.2 | AG.H18 1K80-1856D86 |
| 260 | 2.4 | 60 | 3.0 | 424 | 70 | Φ86 x 225 | A,B,C,D | 1.5 | AG.H22 1K80-2606D86 |
| Un 2200VDC Us 3200v Ur 500V U t-t 3200 VDC Ut-c 4000 VAC |
| 75 | 1.4 | 50 | 2.2 | 222 | 50 | Φ86 x 130 | A,B,C,D | 0.9 | AG.H13 2K20-7505D86 |
| 90 | 2.0 | 40 | 3.2 | 260 | 60 | Φ76 x 181 | A,B,C,D | 1.0 | AG.H18 2K20-9005D76 |
| 120 | 1.2 | 50 | 3.5 | 346 | 60 | Φ86 x 181 | A,B,C,D | 1.2 | AG.H18 2K20-1206D86 |
| 165 | 1.9 | 60 | 4.5 | 477 | 70 | Φ86 x 225 | A,B,C,D | 1.5 | AG.H22 2K20-1656D86 |
| Un 2600VDC Us 4000v Ur 700V U t-t 4000 VDC Ut-c 4500 VAC |
| 50 | 1.4 | 50 | 1.6 | 181 | 50 | Φ86 x 130 | A,B,C,D | 0.9 | AG.H13 2K60-5005D86 |
| 65 | 1.5 | 40 | 2.0 | 218 | 60 | Φ76 x 181 | A,B,C,D | 1.0 | AG.H18 2K60-6505D76 |
| 80 | 1.2 | 50 | 2.5 | 283 | 60 | Φ86 x 181 | A,B,C,D | 1.2 | AG.H18 2K60-8005D86 |
| 115 | 2.0 | 60 | 3.3 | 392 | 70 | Φ86 x 225 | A,B,C,D | 1.5 | AG.H22 2K60-1156D86 |
Note:Other Specifications and size outside table are negotiable.
