Fire Retardant PVC Electrical Insulation Tape

Name: Fire Retardant PVC Electrical Insulation Tape
Brand: all-electronics-online.com
SKU: 754222905
Availability: InStock
Rating: 4.3 (117 reviews)

Price:	US $ 0.07-0.53/Roll
Trade Terms:	FOB,CIF
Min Order:	5000/Roll
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	multi
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness:	0.11mm, 0.13mm, 0.15mm, 0.17mm, 0.19mm
Width:	15mm, 19mm, 20mm, 35mm
Length:	6yds, 8yds, 10yds, 20yds, 10m, 20m
Available Single Color:	Red, Yellow, Green, Blue, Black, White
Double Color:	Yellow-Green
Tensile Strength:	1.0-2.5 Kn/M
Elongation:	100-180%
180° Peel Strength:	120-180n/M
Unit Packing:	1 PC Per Plastic Wrapping
Packing:	10 PCS Per Plastic Shrinking
Application:	Insulating Varnish
Type:	Insulation Tape
Chemistry:	Inorganic Insulation
Material:	Plastic
Maximum Voltage:	<10KV
Brand:	Tosunlux

Product Description

Specification

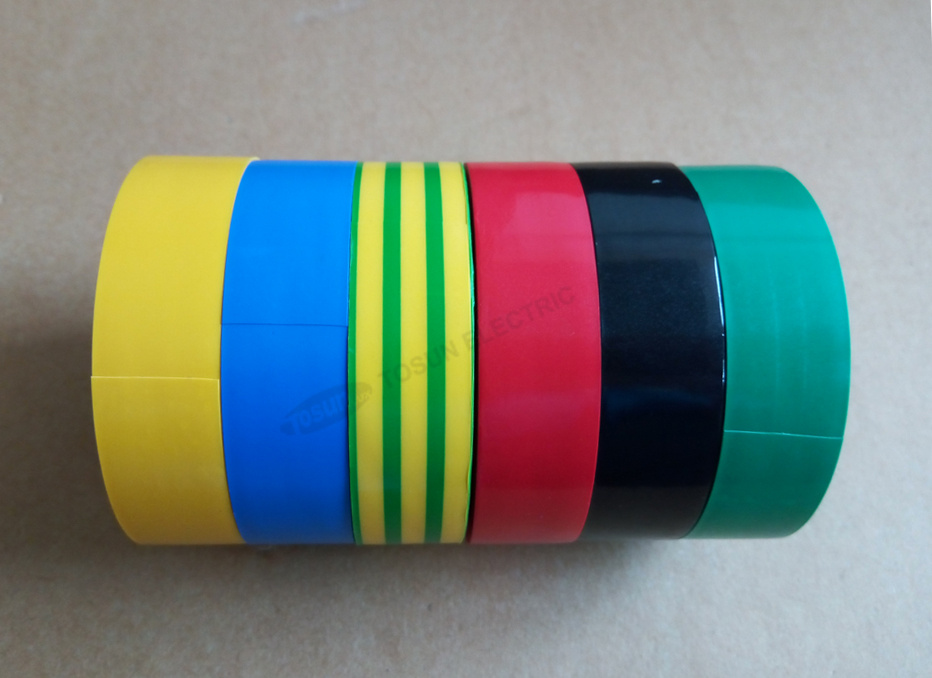

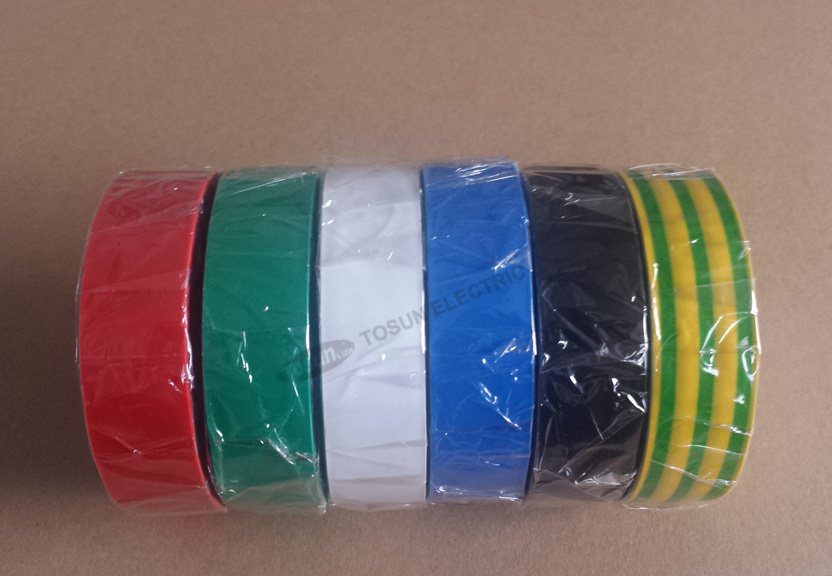

Color: red, yellow, green, blue, black, white, yellow-greeen.

Thickness	Width	Length	Tensile Strength	Elongation	180° Peel Strength	Electric Strength
0.11mm	15mm, 19mm, 20mm, 35mm	6yds, 10yds, 20yds, 5m, 10m, 20m	1.0kn/m	100%	120n/m	3.0
0.13mm			1.8kn/m	150%	150n/m	4.0
0.15mm			2.0kn/m	160%	170n/m	5.0
0.17mm			2.2kn/m	170%	180n/m	5.5
0.19mm			2.5kn/m	180%	180n/m	6.0

Pictures

Why us?

1. Over 24 years' Experince.

2. Experienced salesmen offer one-to-one service.

3. Reasonable price and good source of raw material.

4. A group of professional inspectors monitor quality.

5. TUV, SEMKO, CE, CB, ROHS Approval for products.

5. Unique design for packing.

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.
