| Prod Model: |
YJV |
| Conductor Material: |
Copper or Aluminium |
| Color: |
Yellow or Black |
| Cross Section: |
10~400 mm² |
| Packing: |
as Your Requirement |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
CE |
| Model: |
Yjlv |
| Brand: |
Upward |
Product Description

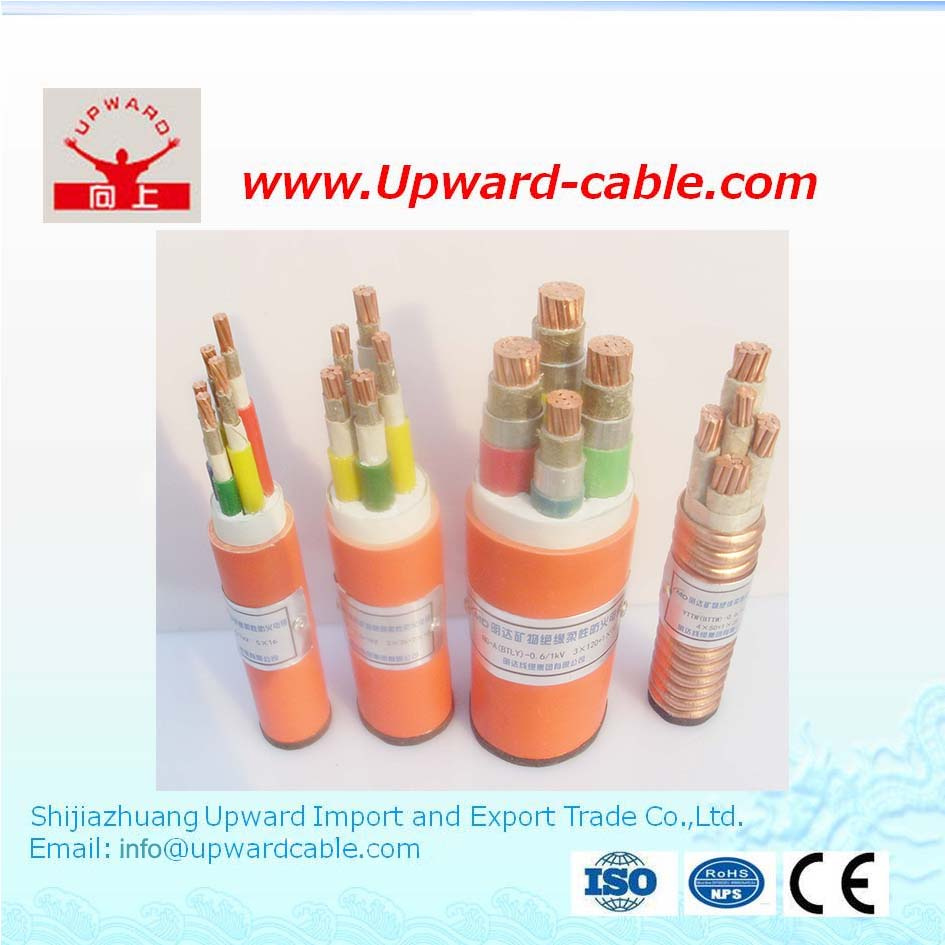

Fireproof power cable Free samples fire resistant power cable
Technical Parameters
| Reference Standard | CE Standard |
| Rated temperature | 80 ºC |
| Rated voltage | 0.6/1KV. |
| Insulation | XLPE/XLPO |
| Material of conductor | Copper |
| Service Life | <25 years |
| Color | Optional |
| Advantage | Fire Resistance |
| Produce Experience | More than 10 years |
Product Features
NYY-O and NYY-J PVC Insulation PV Power Cable
1. XLPE insulated power cable has number of advantages over paper insulated and PVC insulated cable. XLPE insulated power cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting anti-chemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
2. XLPE cable having higher long-term working temperature and greater current rating, at the same enviroment XLPE cable may be reduced size(nominal cross-section)1 or 2 class in comparison with paper and PVC cable. This is not only improve the quality and properties of products, but also reduce cable's production costs
3. The products are mainly complying with IEC 60502, IEC 60332, and IEC 60754.standard, also can be produced according to OEM requirements and other standards, such as BS standard, DIN standard, ASTM standard, etc.
Product Structure
| Type | Name | Main Application |
| Cu Core | Al Core |
YJV
YJY | YJLV
YJLV | XLPE insulated
PVC or PE Sheathed Power Cable | For laying indoor,tunnel,channel and undergroud,Unable to
bear external mechanical force,but bear the traction force
during laid. |
YJV22
YJV22 | YJLV22
YJV22 | XLPE Insulated,Steel Tape Armoured
PVC or PE Sheathed Power Cable | For laying indoor,tunnel,channel and undergroud Able
to bear external mechanical force,but unable to bear
large pulling force. |
YJV32
YJV32 | YJLV32
YJLV32 | XLPE Insulated,Fine Steel Wire Armoured
PVC or PE Sheathed Power Cable | For laying in shaft with large difference of level. Able to
bear external machanical force and maderate pulling force |
YJV42
YJV42 | YJLV42
YJLV42 | XLPE Insulated,Thick Steel Wire Armoured
PVC or PE Sheathed Power Cable | Able to bear positive pressure and pulling force |
Packaging & Shipping
Packaging Detail: 1. Hollow/Plastic/Wooden Drum: 100M/Drum,500M/Drum,1000M/Drum.
Delivery Detail: 7-15 working days after order payment confirmed.
Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.
The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
