| Prod Model: |
CS12-200D lead acid battery |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
12V Solar Battery |
| Size: |
L*W*H=522*240*218mm |
| Weight: |
56kgs Solar Battery |
| Maximum Power: |
300ah Deep Cycle Battery |
| Warranty: |
3 Years Power Battery |
| Expected Cycle Time: |
10-12 Years AGM Battery |
| Delivery Time: |
7days Lead Acid Battery |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global Storage Battery |
| Terminal: |
as Customer Request |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

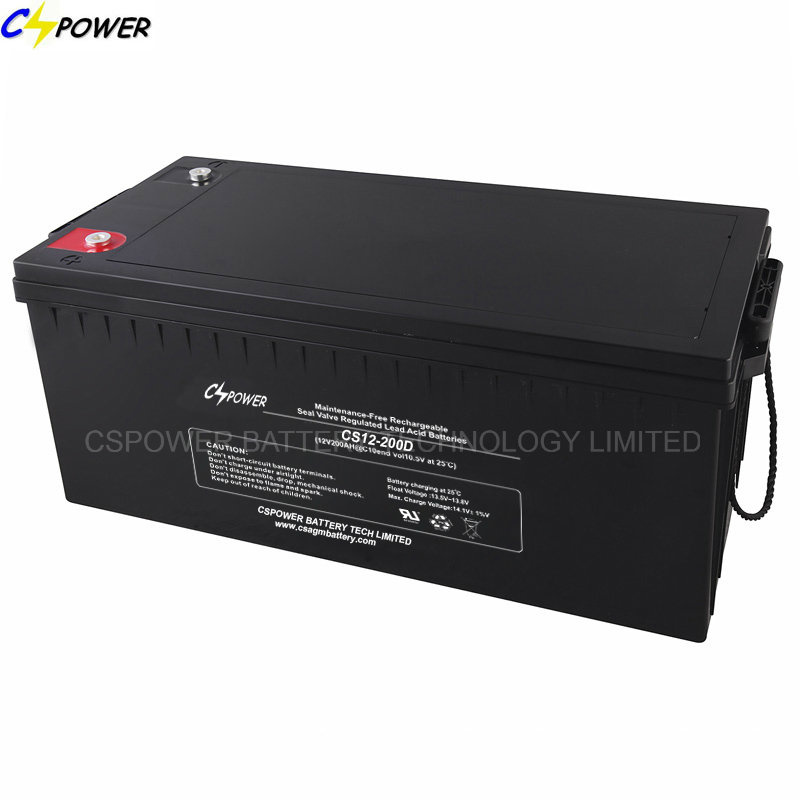

First Class Quality Solar Lead Acid Storage Battery 12V200ah
Main products of CSPOWER are 2V/6V/12V AGM lead acid battery, solar storage battery, deep cycle battery, Solar GEL battery, sealed free maintenance battery upto 2V3000Ah, 6V300Ah, 12V300Ah, total over 400models, mainly used for solar power, wind power, ups system, inverter system, telecom, golf cart, electric vehicles and so on.
Advantage
1. Excellent safety performance
2. Good dischargeing performance
3. Good stock-proof performance
4. Good impact-proof performance:
5. Good resistance to overdischarge
6. Good resistance to overcharge
7. Good resistance to high current
CHARACTERISTICS
| Model No | Rated Voltage(V) | Capacity (Ah) | Dimension | Weight | Terminal Type |
| Length | Width | Height | Total Height | kg |
| mm | mm | mm | mm |
| CS12-200D | 12 | 200 | 522 | 240 | 218 | 242 | 56 | T11
|
Capacity
25'C (77'C) | 10 hour rate(20.0A ) | 200.0AH |
| 5hour rate(34.5A ) | 179.0AH |
| 3hour rate(52.0A ) | 156.0AH |
| 1 hour rate(122.0A ) | 126.0AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 2.7milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than 60 A |
| (Cycle use) Voltage 14.6-15.0V |
| (Float use) Voltage 13.6-13.8V |
Application
- Alarm System
- Cable Television
- Communication Equipment
- Control Equipment
- Security System
- Medical Equipment
- UPS
- Power Tools
- Toys
- Emergency Power System
About CSPOWER:
Our office is in Shenzhen, factories located in Dongguan and Shaoguan China.
We have obtained CE, ISO, IEC certificates and SGS test report for battery.
CSPOWER Battery Tech Co.,Ltd supply our customers reliable products with high quality and competitive price, since we have our own Lead mine & smelter factory & plate factory & SLA battery assembling factory, the purity quotient of our lead is99.998%.
Contact CSPOWER Details:
Web: www.csbattery.net
www.csagmbattery.com
www.cssolarbattery.com
http://cspower.en.made-in-china.com/
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 10hrs/25ºC | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CS12-7D | 12 | 7 | 2.2 | 4.84 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-12D | 12 | 12 | 3.65 | 8.03 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-18D | 12 | 18 | 5.5 | 12.1 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-20D | 12 | 20 | 5.8 | 12.76 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-22D | 12 | 22 | 6.5 | 14.3 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3/T12 |
| CS12-24D | 12 | 24 | 8.1 | 17.82 | 166 | 6.54 | 126 | 4.96 | 174 | 6.5 | 181 | 7.13 | T32 |
| CS12-28D | 12 | 28 | 8.9 | 19.58 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-33D | 12 | 33 | 10.2 | 22.44 | 196 | 7.7 | 131 | 5.16 | 155 | 6.10 | 180 | 7.09 | T16 |
| CS12-35D | 12 | 35 | 10.4 | 22.88 | 197 | 7.76 | 130 | 5.12 | 163 | 6.42 | 180 | 7.09 | T6/T16 |
| CS12-40D | 12 | 40 | 13.5 | 29.7 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-45D | 12 | 45 | 14.5 | 31.9 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T5 |
| CS12-55D | 12 | 55 | 16.2 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/16 |
| CS12-65D | 12 | 65 | 20.5 | 45.10 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CS12-70D | 12 | 70 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 215 | 8.46 | T14 |
| CS12-80D | 12 | 80 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.30 | 229 | 8.46 | T14 |
| CS12-90D | 12 | 90 | 27 | 59.40 | 307 | 12.1 | 169 | 6.65 | 211 | 8.30 | 215 | 8.46 | T16 |
| CS12-100D | 12 | 100 | 31.1 | 68.42 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-120D | 12 | 120 | 36.5 | 80.3 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-134D | 12 | 134 | 41 | 90.20 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 287 | 11.3 | T9/T20 |
| CS12-150D | 12 | 150 | 45 | 99.00 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CS12-180D | 12 | 180 | 56.5 | 124.3 | 522 | 20.6 | 240 | 9.45 | 216 | 8.5 | 240 | 9.45 | T9 |
| CS12-200D | 12 | 200 | 60 | 132 | 522 | 20.6 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-230D | 12 | 230 | 64 | 140.8 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 240 | 9.45 | T9 |
| CS12-250D | 12 | 250 | 69 | 151.8 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
| CS6-100D | 6 | 100 | 17 | 37.4 | 195 | 7.67 | 170 | 6.69 | 206 | 8.11 | 211 | 8.31 | T16 |
| CS6-105D | 6 | 105 | 18.5 | 40.70 | 280 | 11.02 | 128 | 5.03 | 203 | 7.99 | 203 | 7.99 | T16 |
| CS6-120D | 6 | 120 | 19 | 41.80 | 195 | 7.67 | 170 | 6.69 | 206 | 8.11 | 211 | 8.31 | T16 |
| CS6-150D | 6 | 150 | 27 | 59.40 | 260 | 10.2 | 180 | 7.09 | 247 | 9.22 | 252 | 9.92 | T16 |
| CS6-180D | 6 | 180 | 28 | 63.80 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 252 | 9.92 | T16 |
| CS6-200D | 6 | 200 | 29 | 61.60 | 306 | 12.04 | 169 | 6.63 | 223 | 8.77 | 228 | 8.97 | T16 |
| CS6-225D | 6 | 225 | 34.5 | 75.90 | 243 | 9.57 | 188 | 7.4 | 275 | 10.83 | 275 | 10.83 | T16 |
| CL2-300 | 2 | 300 | 18.8 | 41.4 | 171 | 6.7 | 151 | 5.9 | 330 | 13.0 | 366 | 14.4 | T20 |
| CL2-350 | 2 | 350 | 24.5 | 53.90 | 211 | 8.31 | 176 | 6.92 | 331 | 13 | 356 | 14 | T20 |
| CL2-400 | 2 | 400 | 26.7 | 58.7 | 210 | 8.27 | 176 | 6.93 | 329 | 13.0 | 366 | 14.4 | T20 |
| CL2-500 | 2 | 500 | 31 | 68.20 | 242 | 9.5 | 172 | 6.8 | 331 | 13.0 | 366 | 14.4 | T20 |
| CL2-600 | 2 | 600 | 38 | 83.80 | 301 | 11.9 | 175 | 6.89 | 331 | 13.0 | 366 | 14.4 | T20 |
| CL2-800 | 2 | 800 | 53 | 116.60 | 410 | 16.1 | 175 | 6.89 | 330 | 13.3 | 365 | 14.4 | T20 |
| CL2-1000 | 2 | 1000 | 63 | 138.60 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14.02 | T20 |
| CL2-1500 | 2 | 1500 | 101 | 223 | 401 | 15.8 | 351 | 13.8 | 342 | 13.5 | 369 | 14.5 | T20 |
| CL2-2000 | 2 | 2000 | 132 | 290. | 491 | 19.3 | 351 | 13.8 | 343 | 13.5 | 369 | 14.5 | T20 |
| CL2-3000 | 2 | 3000 | 195 | 430 | 710 | 28.0 | 352 | 13.9 | 342 | 13.5 | 369 | 14.5 | 20 |
