Fish Scale / Postal Scale / Handle Scale Weighing Sensor (QL-C5-1)

Name: Fish Scale / Postal Scale / Handle Scale Weighing Sensor (QL-C5-1)
Brand: all-electronics-online.com
SKU: 682089191
Availability: InStock
Rating: 4.3 (44 reviews)

Price:	US $ 1.5-2.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-C5-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Aplication:	Handle Scale,Kitchen Scale,Fish Scale,Post Scale
Type:	Micro Load Cell
Capacity:	10~40kg
Excitation Voltage:	5 ~ 10 VDC
Dimension:	4010H mm
Pattern:	Mini Load Cell

Product Description

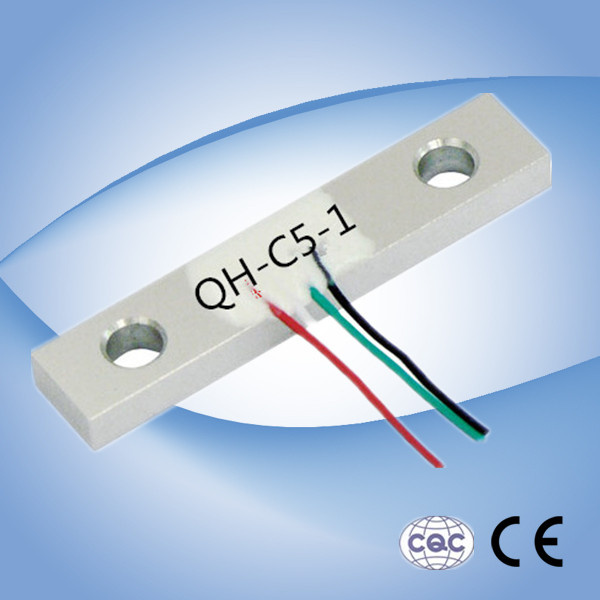

Fish Scale / Postal Scale / Handle Scale Weighing Sensor (QL-C5-1)

Model: QL-C5-1
Category: micro load cell
Range: 10~40kg
Dimension:40*10*h mm
Material: Alloy Aluminum
Application: handle scale,kitchen scale,fish scale,post scale
Characteristic:postal scale load cell, handle scale load cell

Specification
comprehensive error:	0.2FS	output resistance:	1000±10Ω
Rated output:	1.1±0.03mv/v	Insulation resistance:	≥2000MΩ(100VDC)
Non-linearity:	0.2%FS	Excitation voltage:	5~10VDC
Hysteresis:	0.2%FS	compensated temp:	-10~+40ºC
Repeatability:	0.2%FS	use temperature:	-20~+55ºC
Creep:	0.2%FS/10MIN	temp effect on zero:	0.2%FS/10ºC
Zero balance:	1±0.1%FS	Temp effect on span:	0.2%FS/10ºC
Input resistance:	1090±10Ω	defend grade:	IP66

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
