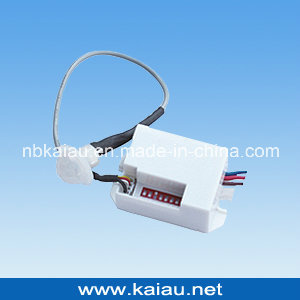

Fitting Ceiling Lamp Infrared Motion Detector (KA-S12A)

Name: Fitting Ceiling Lamp Infrared Motion Detector (KA-S12A)
Brand: all-electronics-online.com
SKU: 683263305
Availability: InStock
Rating: 5 (139 reviews)

Price:	US $ 2.8-4.2/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KA-S12A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	Two Years
Samples Delivery Time:	Within 2 Days
Bulk Order Delivery Time:	Within 25 Days
Usage:	All Kinds of Lamp
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	NPN (',Three-Wires)
Standard:	Standard
Certification:	CE
Application:	Corridor, Warehouse, Garage, Toilets etc.

Product Description

KA-S12A Fitting Ceiling Lamp Infrared Motion Detector specifications:
1. Sense range: 100°
2. Sense distance: 8m (22º C)
3. Power supply: 180~240V/AC; 110~130V/AC
4. Rated load: 800W. Resistive load(180~240V/AC)
150W. Fluorescent load(180~240V/AC)
5. Working temperature: -10º C ~ +40º C
6. Working humidity: ≤ 93%RH
7. Time-delay: 5s\30s\1Min\3 Min\5 Min\8 Min.
8. Working light: < 10LUX~2000LUX

KA-S12A Product introduction:
Infrared sensor is an energy automatic sensor switch, it can identify day and night. It adopts infrared detector, IC and SMD technology, when someone enter its detecting range and triggered it work, the infrared detector turn on the lamp, after he leave its range, the lamp will turn off automatically.
Features:
1. Adopts 8-bit DIP switch:
You can select working light to work only in the light below 10lux or in any light;
Adjustable sensitivity;
Choose working time-delay of the load: 5s, 30s, 1Min, 3Min, 5Min, 8Min.
2. The time that the load work can delay automatically: It re-computes time after the last sensing;
3. Out connect infrared detector and sensitization resistor;
4. Simple structure and using convenient.

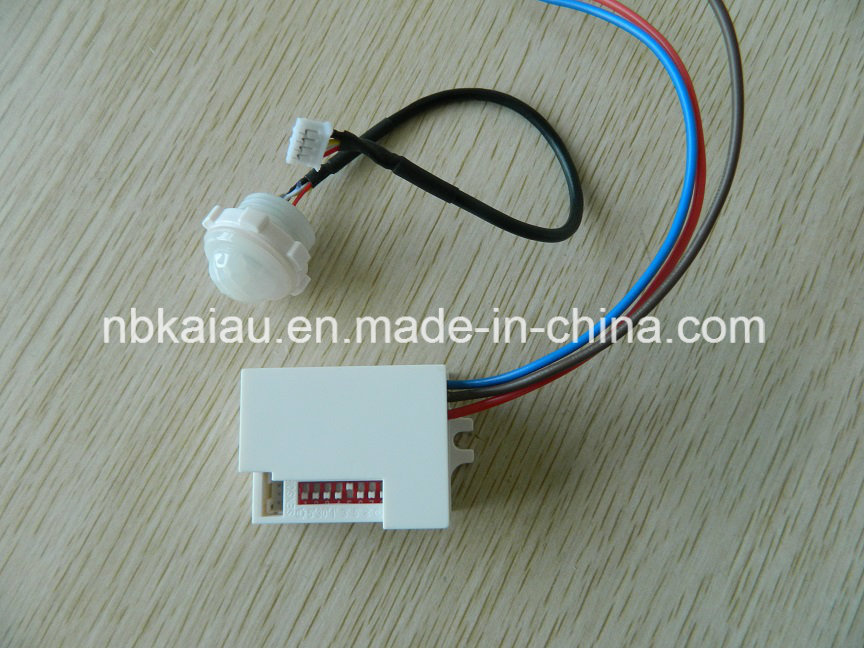

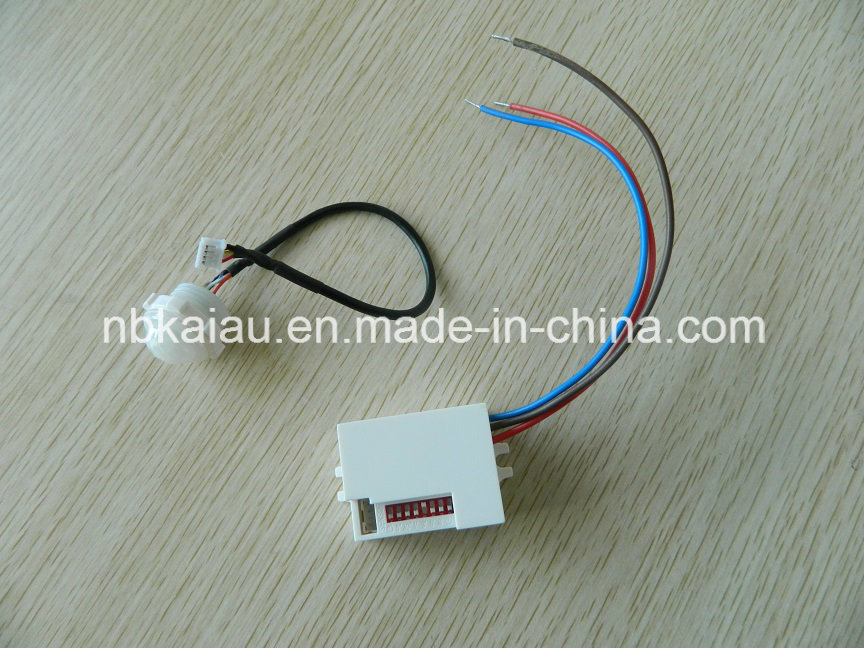

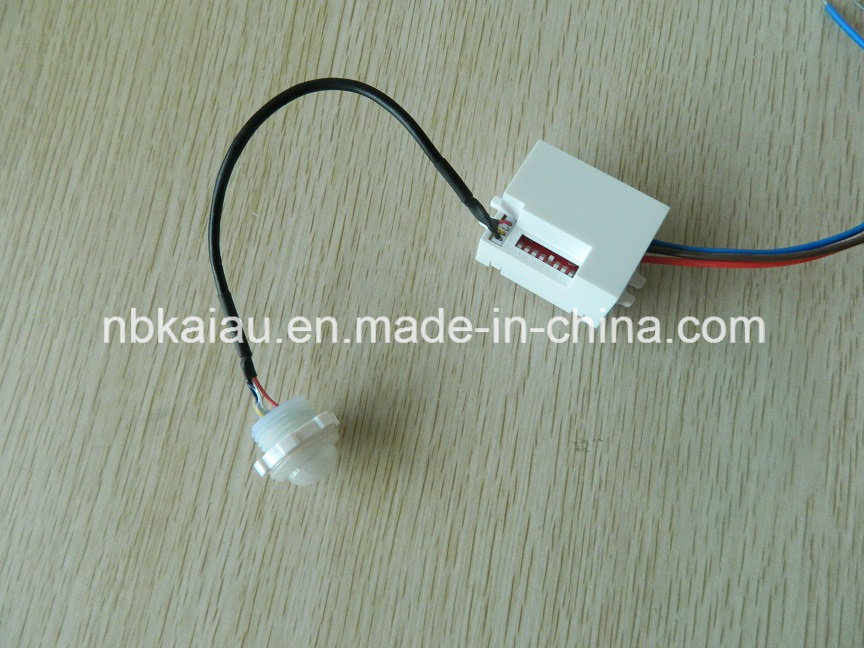

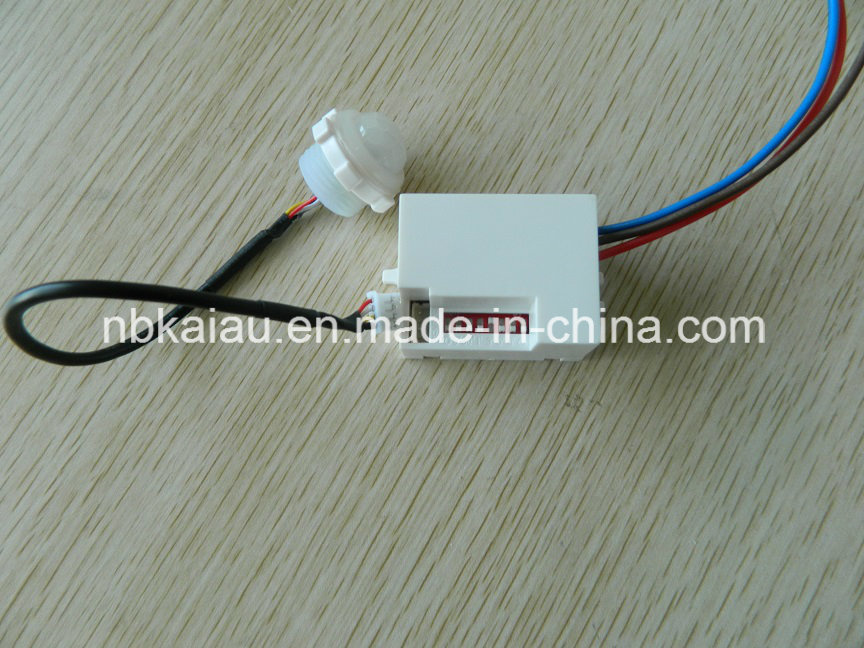

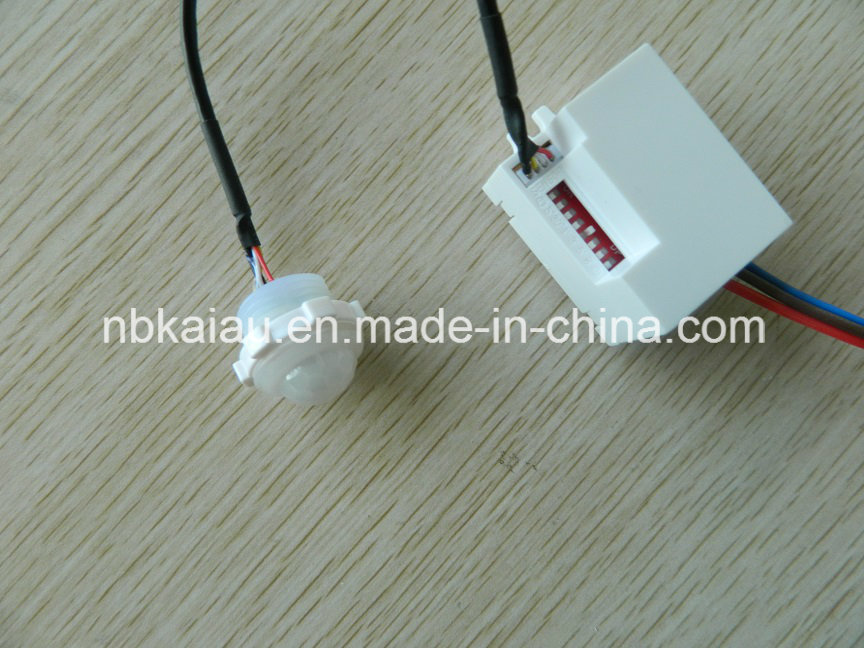

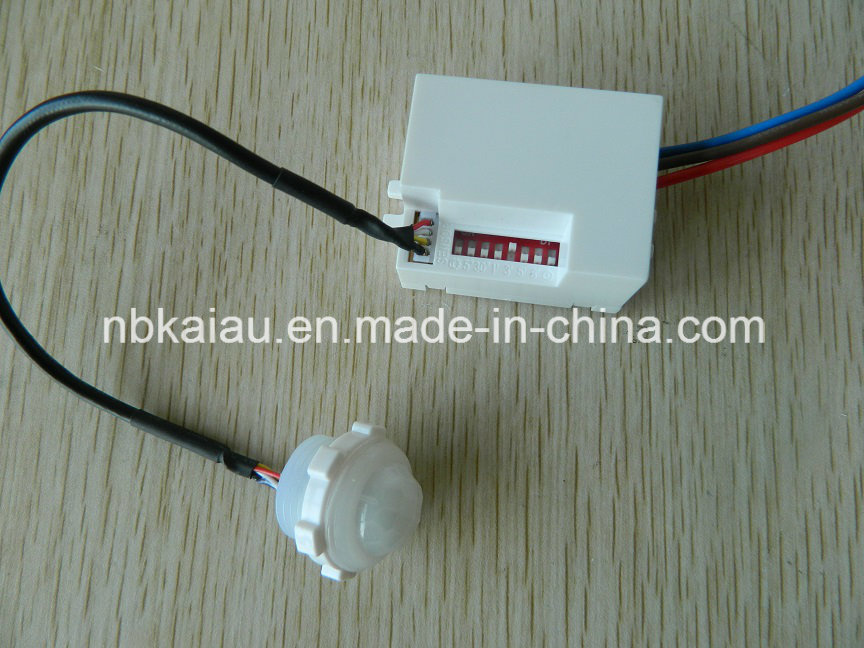

KA-S12A Actual photos:
