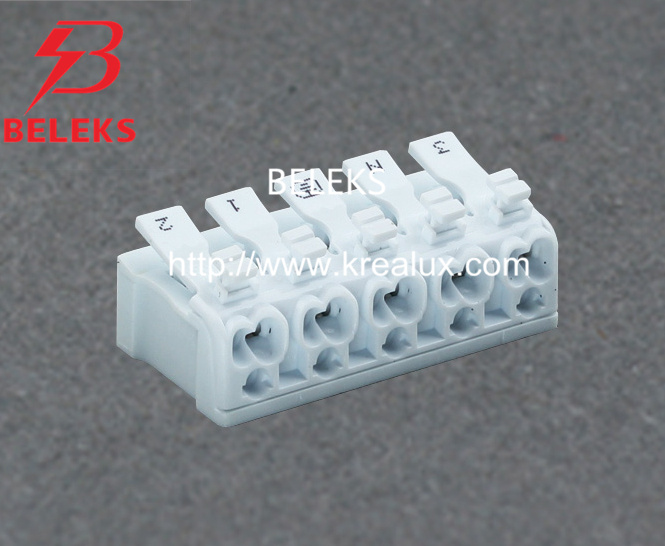

Five Poles Quick Wire Connector with Release Button (P02-D5)

Name: Five Poles Quick Wire Connector with Release Button (P02-D5)
Brand: all-electronics-online.com
SKU: 807050485
Availability: InStock
Rating: 4.8 (121 reviews)

Price:	Negotiable/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	P02-D5
Name:	Five Poles Quick Wire Connector
Voltage(VDE/UL):	450V/300V
Ampere(VDE/UL):	16A
UL Standard AWG:	20-14 Sol/Str
Wiring Capacity:	0.5-2.5"R"
Terminal Body:	Brass, Stainless Steel
Finish Terminal Body:	Nickel Plated
HS Code:	85369019
Color:	White
Application:	Conduct Electricity
Type:	Push-in Wire Connector
Material:	Polyamide 66(V2), Polycarbonate(V2)
Certification:	CQC, Ce
Brand:	Beleks

Product Description

Product Description

Two Poles Quick Wire Connector with Release Button

Model	P02-4
Technical Data
Voltage(V)	VDE	450	UL	300
Ampere(A)		16		16
Wiring Capacity(mm2)	0.5-2.5"r"
UL Standard AWG	20-14 sol/str
Approvals	CE, CQC, UL, VDE
Materials
Housing	Polyamide 66(V2), Polycarbonate(V2)
Terminal Body	Brass, stainless steel		Finish	Nickel Plated
Temperature	T110
Colour	White

Krealux Electrical Appliances Co., Ltd. is a professional manufacturer specialized in research, production and selling of electrical parts. Our experienced team dedicates to development and manufacturing of terminal blocks, wire connectors, cord line switches and fuse holders, etc. The General Manager is invited to act as editorial board member for domestic standards of terminal blocks/wire connectors.

Krealux products are approved and certified as per safety standards of core countries/organizations of world economy. The company is also ISO9001: 2008 approved by UKAS. Our tailor-made fully automated and high-efficient production facilities ensure production capacity and stable quality of Krealux products. Customers are always satisfied with leading technologies, competitive price, reliable quality, on time delivery, prompt-and-attentive services provided by us.

Krealux brand, BELEKS, reaches top level of the industry with years' effort. Our professional and experienced team innovates persistently and has taken out more than 100 patents in China and abroad.

ODM and OEM projects are welcomed. Or any customization solution request, please feel free to contact us.
