| Prod Model: |
HXGN-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
12 Kv |
| Rated Current: |
630A |
| Degree Of Protection: |
IP2X |
| Frequency: |
50Hz |
| AC: |
3150A |
| Incoming Switch Current: |
630A |
| Outgoing Switch Current: |
125ka |
| Rated Short-Time Withstand Current: |
20ka |
| Rated Short-Circuit Constant Time: |
4s |
| Rated Peak Withstand Current: |
50ka |
| Type: |
Power |
| Form: |
All- packaged Type |
| Operation Voltage: |
High Voltage |
| Size: |
1 Uint |
| Application Range: |
Power Plants |
| Shell Protection Grade: |
IP2X |
| Brand: |
Yangke |
Product Description

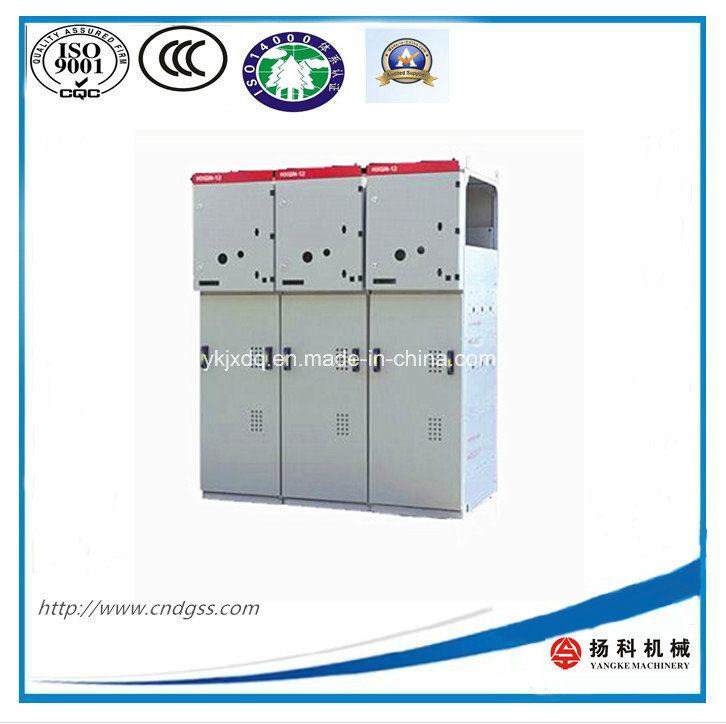

HXGN-12 tank fixed type metal enclosed switchgear(ring main unit) is used for AC 50Hz,10KV network ac broken loading,short-circuit and closing short-crcuit. The ring main unit equiped; with manual/electromagnet spring; charged operated mechanism to operate loading switch, erathing switch and isolating switch equiped with manual operated mechanism.
The product meet the standards of GB3906,etc.
Main technical datas
Serial No
|
Item
|
Unit
|
Technical parameters
|
1
|
Rated voltage
|
KV
|
12
|
2
|
Rated current
|
A
|
630
|
3
|
Rated short time withstand current 4s
|
KA
|
20
|
4
|
Rated withstand current (peak)
|
KA
|
50
|
5
|
Rated short time withstand current 2s of grounding switch
|
KA
|
20
|
6
|
Rated withstand current (peak) of grounding switch
|
KA
|
50
|
7
|
Rated short circuit making current (peak) of grounding switch
|
KA
|
50
|
8
|
1min power frequency withstand voltage
|
Phase-phase, phase-earth, vacuum fracture
|
KV
|
42
|
Isolation fracture
|
48
|
9
|
Protection degree
|
|
IP2X |
Packaging & Delivery
| Packaging Detail: | wooden box |
| Delivery Detail: | within 5-15working days after the deposit |
