| Prod Model: |
FKN12-12D |
| Function: |
Industry |
| Pole: |
3 |
| Rated Continuous Current: |
60A |
| Brand: |
Cnhk |
Product Description

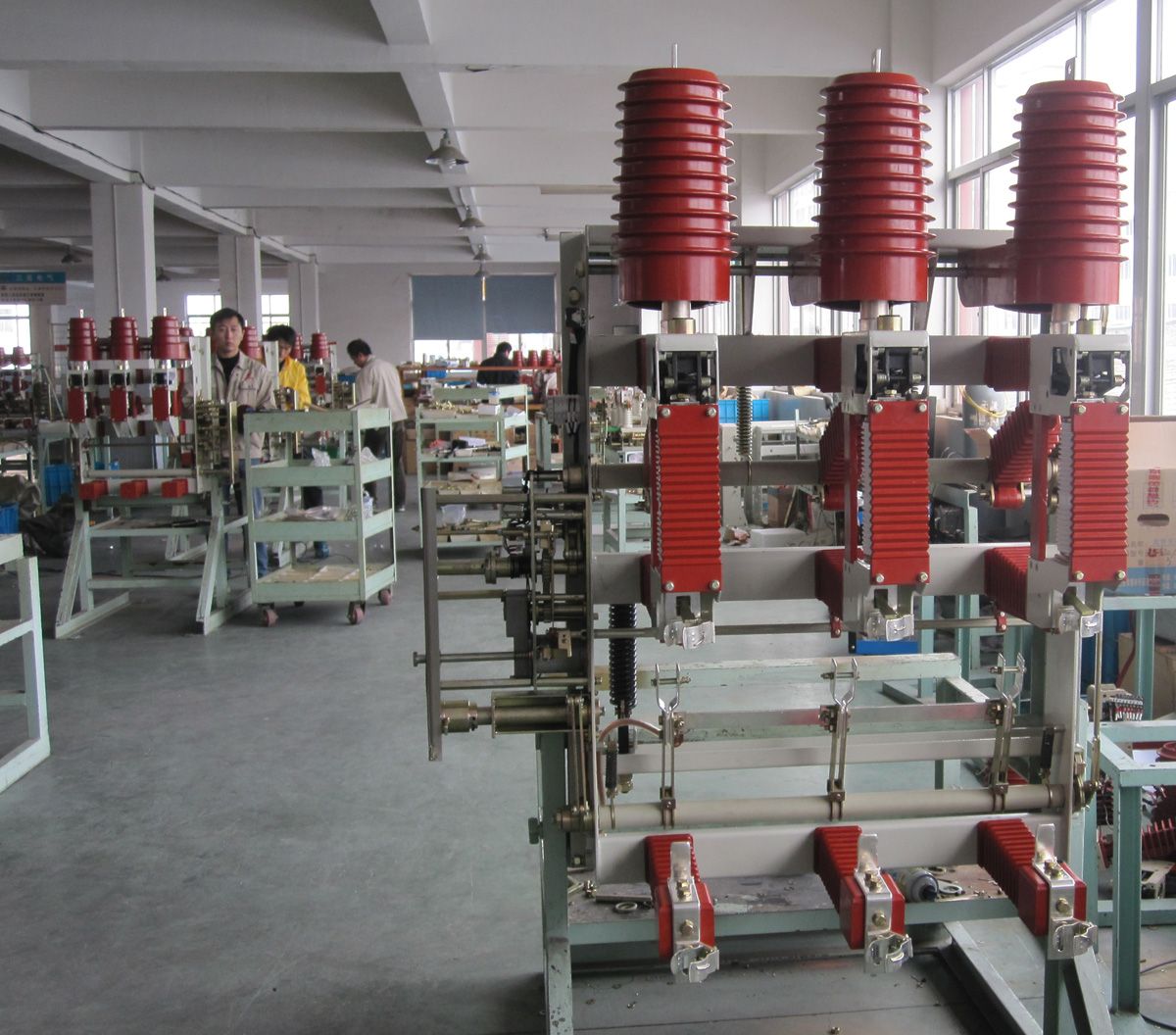

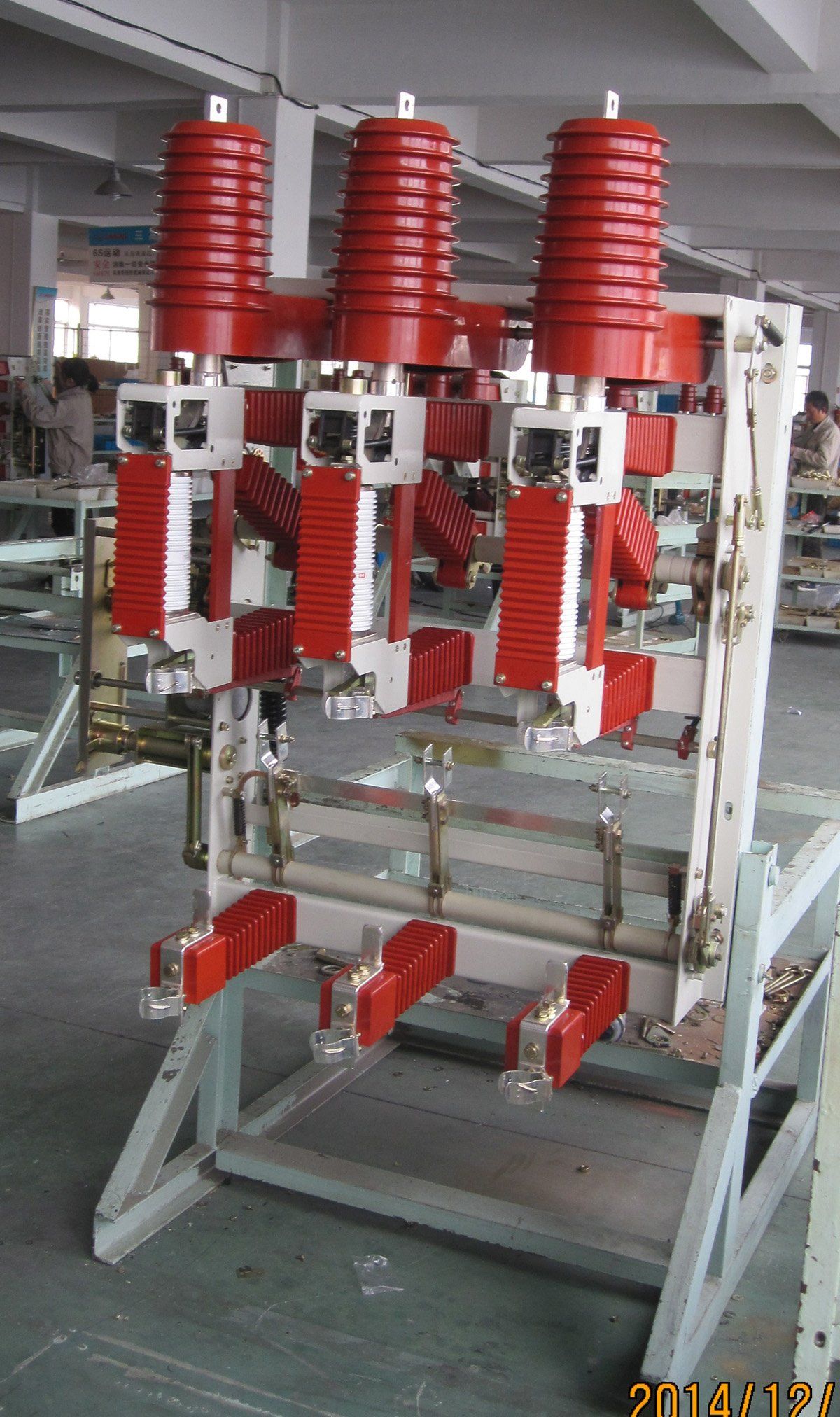

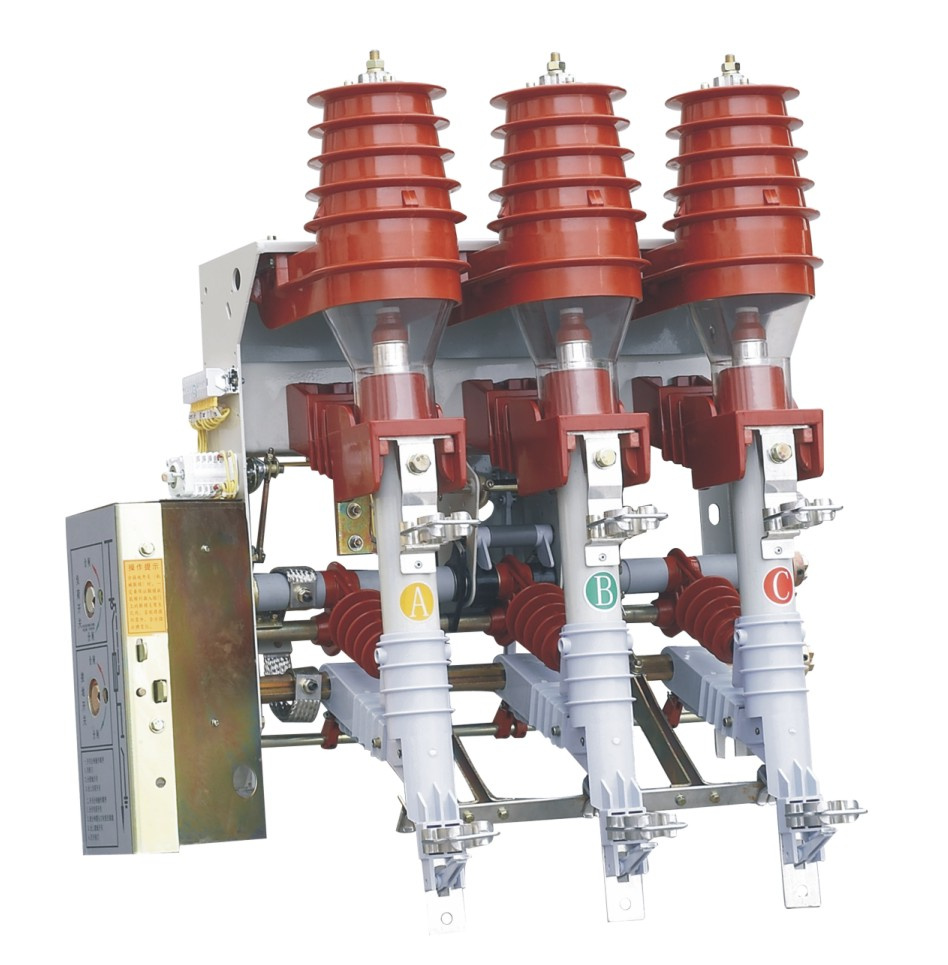

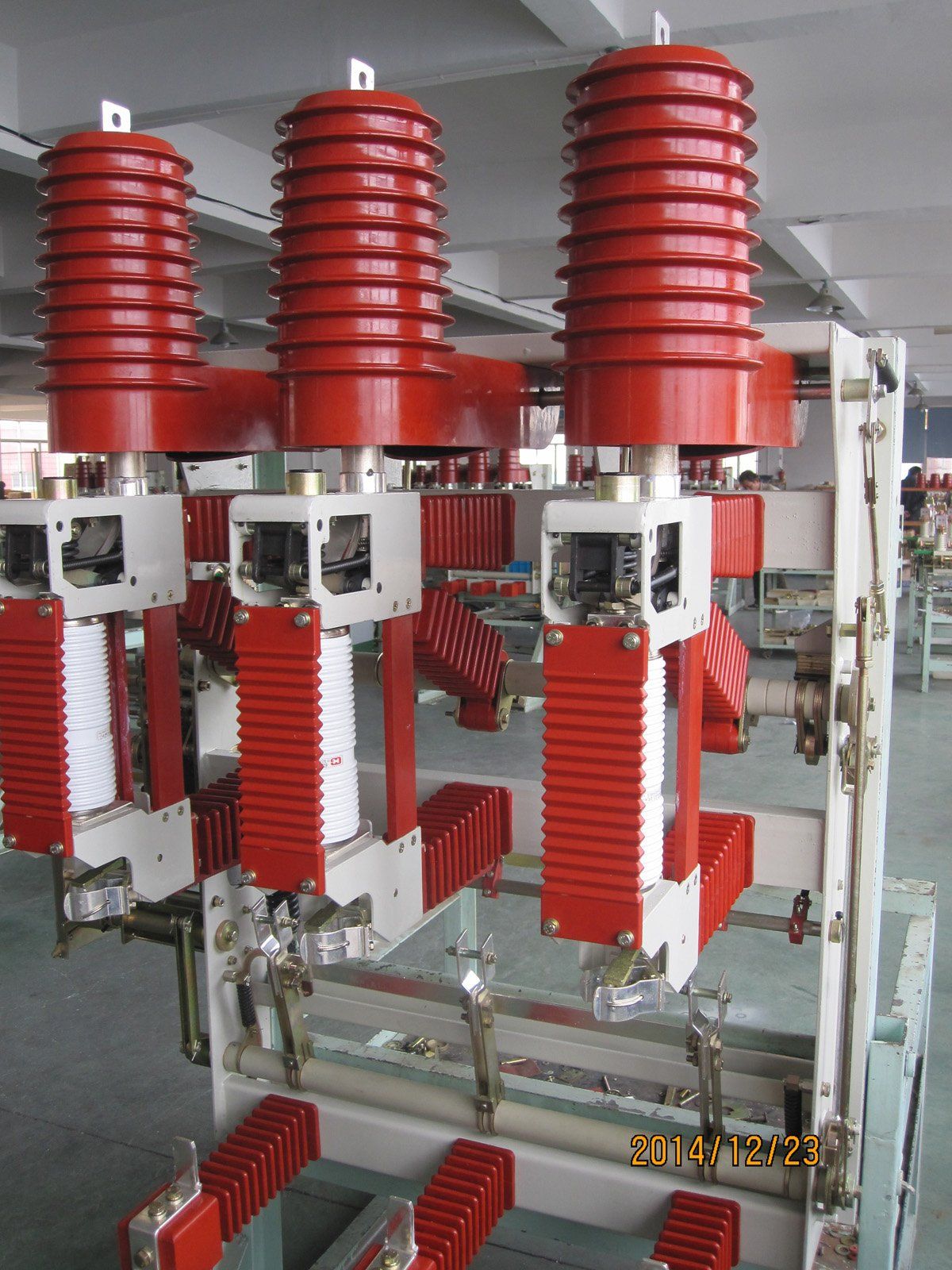

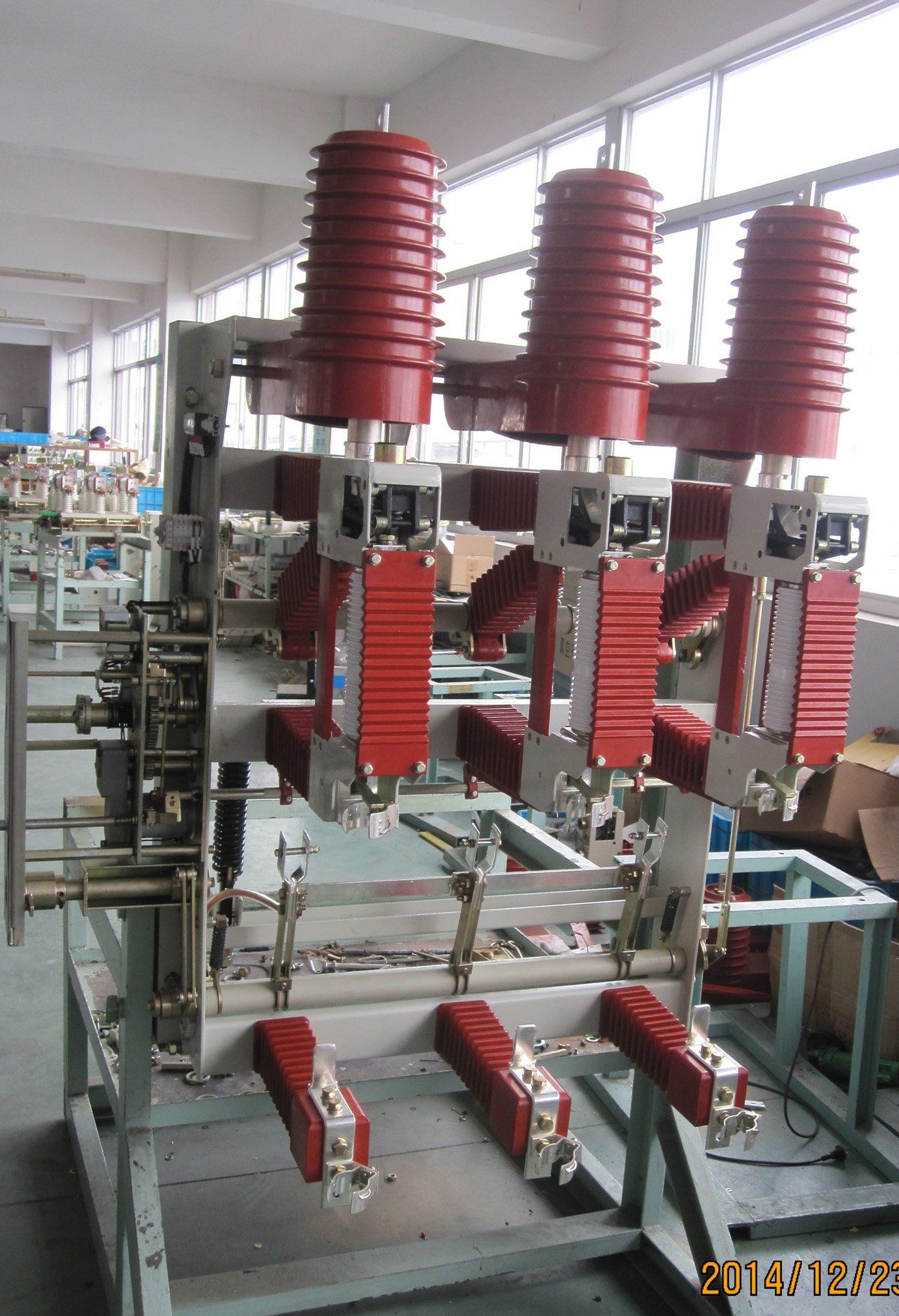

FZ(R)N25-12D Indoor Vacuum Load Break Switch with Fuse
1.General
1.1Ratings: Rated voltage up to 12kV, Rated current up to 630A, AC50HZ
1.2 Application: for the control and protection of substation and equipments; making and breaking short-circuit current under various operating status of electric network.
1.3 Standard: IEC62271-105
2. Type and Interpretation:
2.1 Vacuum Load switch
FZ(R)N25-12D
FZ:Vacuum load switch
R;With limit current fuse
N:INDOOR
25:DESIGN NO.
12:RATED VOLTAGE
D: EARTHING SWITCH
3. Working Condition3.1 Ambient air temperature: -25
ºC~ +40
ºC3.2 Altitude: ≤1000m
3.3 No operating in such places as subject to dust, smog, corrosive/flammable gas, vapor and salt pollution.
3.4 Relative humidity: Daily average
95%
Monthly average
90%
3.5 Water vapor pressure: Daily average
Monthly average
1.8kPa
3.6 The external shocking and earthquake from the switchgear and control equipment
could be neglected.
3.7 The amplitude of electromagnetic interference in the secondary system
1.6kV
Note: Customized products for other special working conditions are available on your requirements.
4. Features:Easy operation and installation
Connection combination is simple and convenient
Insulation and sealed structure,
Reliable interlock, compact design
5. Operating mechanism5.1 Manual Spring operation mechanism(Fig.1)
5.2 Electric Spring operation mechanism(Fig.2)
(Operation voltage: AC220V, DC220V)
6. Main Technical Parameter | Item | Unit | Data |
| FZN25-12D/T630-20 | FZN25-12D/T125-31.5 |
| Rated voltage | kV | 12 |
| Rated frequency | Hz | 50 |
| Rated current | A | 630 | 125 |
| Rated insulation level | 1min power frequency with stand voltage(Phase to earth, between poles, open contacts) | kV | 42 | 48 |
| Rated lightning impulse withstand voltage(Phase to earth, between poles, open contacts) | kV | 75 | 85 |
| Rated peak withstanding current | kA | 50 | |
| 4S rated short-time withstanding current | kA /s | 20 | / |
| Earthing switch rated short-time withstanding current/Rated short-circuit duration time | kA/s | 20/4 | / |
| Rated breaking current | Power load breaking current | A | 630 | / |
| Close loop breaking current | A | 630 | / |
| Breaking cable charge current | A | 31.5 | / |
| Breaking no-load transformer capacity | kVA | 1250 | 1250 |
| Rated short-circuit breaking current | kA | / | 31.5 |
| Breaking transfer current | A | / | 3150 |
| Fuse type | | / | SDLAJ-12,SFLAJ-12 |
| Shocking input energy | J | / | 3-5 |
| Rated short-circuit making current | kA | 50 | 80(expected) |
| Earthing switch rated withstand current(peak) | kA | 50 | 50 |
| Earthing switch 4S rated short-time withstand current | kA | 20 | 20 |
| Auxiliary circuit rated voltage | V | 220:110 | 220:110 |
| Mechanical life(grade M2) | times | 20000 |
| | | |
