| Prod Model: |
TB |
| Rated Voltage: |
up to 600V |
| Pole Number: |
3-12 |
| Cover Material: |
PC |
| Rated Current: |
15A-100A |
| Type: |
Dual Hole Terminals |
| Material: |
Copper |
| Application: |
Conduct Electricity |
| Character: |
Flame-Proof |
Product Description

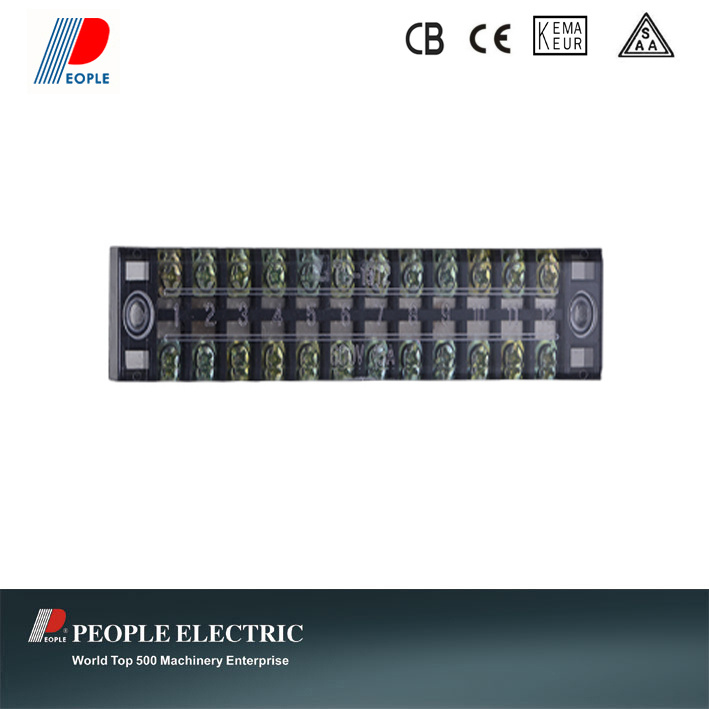

SummaryTB series wiring terminal, the isolation components adopt flame-proof PC material, rated working voltage 600V, wire connecting section 0.75~25 mm³, plate screwing ihole for nstallment, mainly suits in the control device with plate requirements.
Normal working & installment condition1.Temperature: -20ºC~+40ºC
2. Humidity: 10%~90%RH
3. Altitude: ≤3000m
4. Mounting place: indoor place without metal dust or obvious shock
5. Storage temp:-20ºC~55ºC
Specification | Model | Voltage; current | Pole
Number | Dimension(mm) |
| L | L1 | A | B | C | D | E |
| TB-1503 | 660V 15A | 3 | 46 | 35.5 | 7.5 | 9 | M3 | 22 | 17 |
| TB-1504 | 660V 15A | 4 | 55 | 43.5 | 7.5 | 9 | M3 | 22 | 17 |
| TB-1506 | 660V 15A | 6 | 73 | 63 | 7.5 | 9 | M3 | 22 | 17 |
| TB-1512 | 660V 15A | 12 | 127 | 115 | 7.5 | 9 | M3 | 22 | 17 |
| TB-2503 | 660V 25A | 3 | 50 | 44.5 | 10.5 | 12 | M4 | 30 | 20 |
| TB-2504 | 660V 25A | 4 | 62.5 | 57 | 10.5 | 12 | M4 | 30 | 20 |
| TB-2506 | 660V 25A | 6 | 91 | 81.5 | 10.5 | 12 | M4 | 30 | 20 |
| TB-2512 | 660V 25A | 12 | 163 | 153 | 10.5 | 12 | M4 | 30 | 20 |
| TB-4503 | 660V 45A | 3 | 70 | 60.5 | 15 | 15 | M5 | 38 | 23.5 |
| TB-4506 | 660V 45A | 6 | 86 | 75.5 | 15 | 15 | M5 | 38 | 23.5 |
Packing and shipping-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service-- We have our own factory, professional manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
