Flame Resistance Polyolefine Heat Shrink Tube with Glue
| Price: |
US $ 0.01-18.22/Meter |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SB-SBRS-(3X, 4X) |
| Working Temp: |
-45~+125 C |
| Shrink Temp: |
70~125c |
| Shrink Ratio: |
3:1 & 4:1 |
| UL No.: |
E360625 |
| Voltage Rating: |
300V or 600V |
| Standard Color: |
Black |
| Application: |
Wire Harness, Transformer, Heating Elements etc |
| Type: |
Insulation Sleeve |
| Chemistry: |
Organic Insulation |
| Maximum Voltage: |
<10KV |
| Material: |
Polyolefin and Glue |
| Color: |
All Colors |
| Certification: |
Ts16949 |
| Brand: |
Sunbow |
| Thermal Rating: |
125c |
Product Description

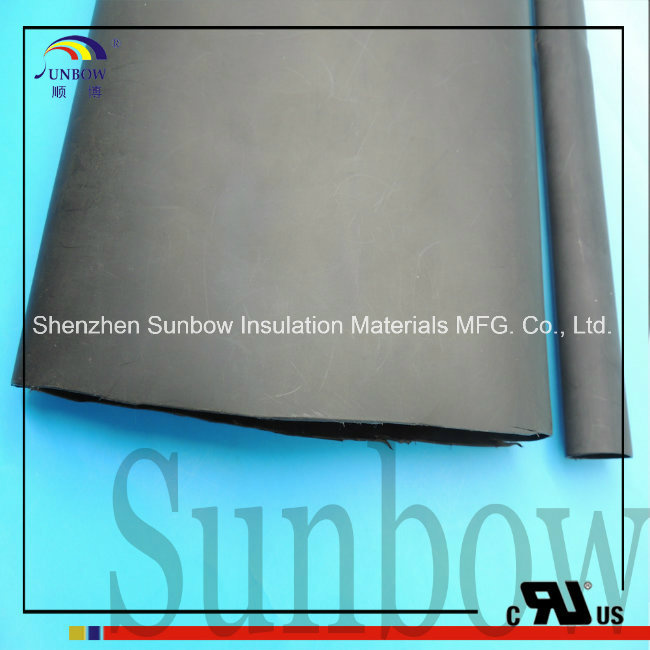

Flame resistance polyolefine heat shrink tube with glue
Model Number: SB-SBRS-(3X,4X)
Working temperature: -45ºC ~ 125ºC
Shrink temperature: 70ºC ~ 125ºC
Shrink ratio: 3:1 & 4:1

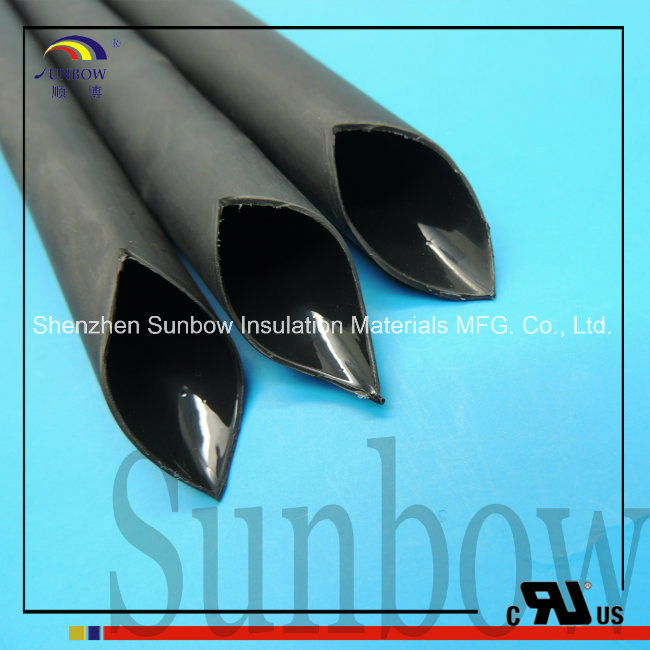

Structure
Adhesive-lined heat shrinkable tube adopts flame retardant, cross-linked polyolefin with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performances. Inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS,Reach certifications with 600V and 300V.
Usage
It is mainly used as waterproof, corrosion resistance, insulation, and mechanical protection. It is widely used in manufacturing of electrical and electronics, communications, automobiles, shipping, aircraft etc.
Standard
Production standards: UL224, CAN/CSA C22.2 NO198.1-99, SAE-AMS-DTL-23053/4
Dimension
SBRS-(3X)G | Inner Diameter | As Supplied(mm)
ID | After Recovery(mm) | Standard Package
(m/spool) |
| (mm) | (inch) | ID | Whole Wall Thickness | Adhesive Thickness |
| Φ2.4 | 3/32 | ≥2.4 | ≤0.80 | 0.85±0.15 | 0.40±0.10 | 200 |
| Φ3.2 | 1/8 | ≥3.2 | ≤1.00 | 0.95±0.15 | 0.40±0.10 | 200 |
| Φ4.8 | 3/16 | ≥4.8 | ≤1.60 | 1.10±0.15 | 0.40±0.10 | 100 |
| Φ6.4 | 1/4 | ≥6.4 | ≤2.20 | 1.20±0.15 | 0.45±0.10 | 100 |
| Φ7.9 | 5/16 | ≥7.9 | ≤2.70 | 1.35±0.15 | 0.50±0.10 | 100 |
| Φ9.5 | 3/8 | ≥9.5 | ≤3.20 | 1.45±0.20 | 0.50±0.15 | 50 |
| Φ12.7 | 1/2 | ≥12.7 | ≤4.20 | 1.70±0.20 | 0.50±0.15 | 1.22 |
| Φ15.0 | 5/8 | ≥15.0 | ≤5.20 | 1.80±0.20 | 0.55±0.15 | 1.22 |
| Φ19.1 | 3/4 | ≥19.1 | ≤6.30 | 2.00±0.20 | 0.55±0.15 | 1.22 |
| Φ25.4 | 1 | ≥25.4 | ≤8.50 | 2.10±0.25 | 0.55±0.15 | 1.22 |
| Φ30.0 | 1-1/4 | ≥30.0 | ≤10.20 | 2.20±0.25 | 0.60±0.15 | 1.22 |
| Φ39.0 | 1-1/2 | ≥39.0 | ≤13.50 | 2.40±0.25 | 0.60±0.15 | 1.22 |
| Φ50.0 | 2 | ≥50.0 | ≤17.00 | 2.70±0.25 | 0.80±0.15 | 1.22 |
| Φ64.0 | 2-1/2 | ≥64.0 | ≤21.00 | 3.00±0.30 | 0.80±0.20 | 1.22 |
| Φ76.0 | 3 | ≥76.0 | ≤25.00 | 3.00±0.30 | 1.00±0.20 | 1.22 |
| Φ90.0 | 3-1/2 | ≥90.0 | ≤30.00 | 3.00±0.30 | 1.00±0.20 | 1.22 |
| Φ100 | 4 | ≥100 | ≤34.00 | 3.00±0.30 | 1.00±0.20 | 1.22 |
| Φ125 | 5 | ≥125 | ≤42.00 | 3.00±0.30 | 1.00±0.15 | 1.22 |
SBRS-(4X)G | Inner Diameter | As Supplied(mm)
ID | After recovery(mm) | Standard Package (m/roll) |
| (mm) | (inch) | Max ID | Whole Wall Thickness | Adhesive Thickness |
| Φ4.0 | 2/13 | ≥4.0 | ≤1.0 | 1.0±0.15 | 0.4±0.15 | 200 |
| Φ6.0 | 1/4 | ≥6.0 | ≤1.5 | 1.1±0.15 | 0.4±0.15 | 100 |
| Φ8.0 | 5/16 | ≥8.0 | ≤2.0 | 1.2±0.15 | 0.5±0.15 | 100 |
| Φ12.0 | 1/2 | ≥12.0 | ≤3.0 | 1.4±0.15 | 0.5±0.15 | 1.22 |
| Φ16.0 | 5/8 | ≥16.0 | ≤4.0 | 1.7±0.15 | 0.6±0.15 | 1.22 |
| Φ20.0 | 15/19 | ≥20.0 | ≤5.0 | 2.0±0.25 | 0.6±0.15 | 1.22 |
| Φ24.0 | 1 | ≥24.0 | ≤6.0 | 2.1±0.25 | 0.6±0.15 | 1.22 |
| Φ32.0 | 1 1/4 | ≥32.0 | ≤8.0 | 2.4±0.25 | 0.7±0.15 | 1.22 |
| Φ52.0 | 2 | ≥52.0 | ≤13.0 | 2.4±0.25 | 0.7±0.15 | 1.22 |

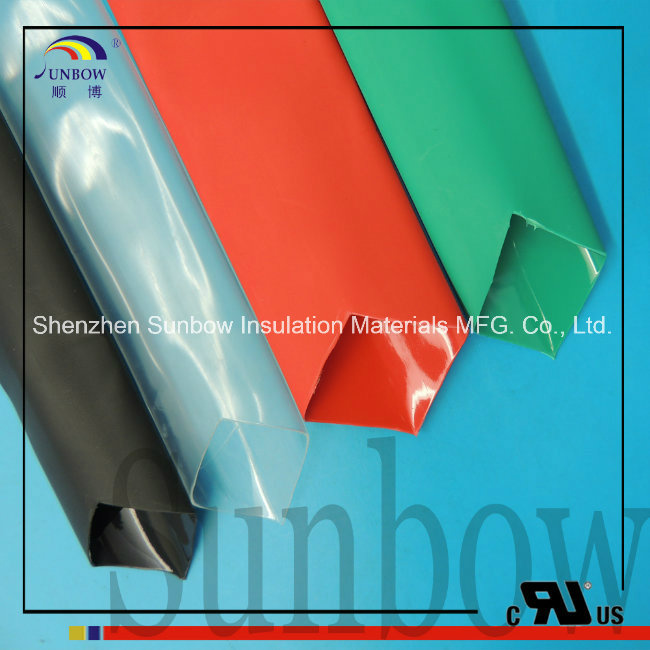

Color: Standard color is black (other color available upon request).
Company informationFounded in Oct. 2003, Sunbow is a top leading ISO and TS16949 factory of insulation materials. Approved by UL, ROHS, RACH, Its main products cover in silicone fiberglass sleeving, heat shrink tube, expandable braided sleeving, PVC tube, silicone tube, PTFE tube, wire conduit and so on. Its products are mainly for the wire harness, motors, transformers, generator and so on. SUNBOW is the suppier of many famous brand like TOSHIBA, ABB, SIEMENS, DAS, AUTO, TOYOTO, SAMSUNG, HUAWEI. CRRC and so on.UL file Number:UZIQ2: E333178 for silicone fiberglass sleeving range from 1.2KV to 4.0KVUZFT2: E333177 for silicone fiberglass sleeving 7.0KV.YDPU2: E360625 for extruded silicone tubing and Heat shrink tubeYDQS2: E467953 for extruded PVC tubing
Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.
Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr. 2014 (Cert. No. E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.
Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.

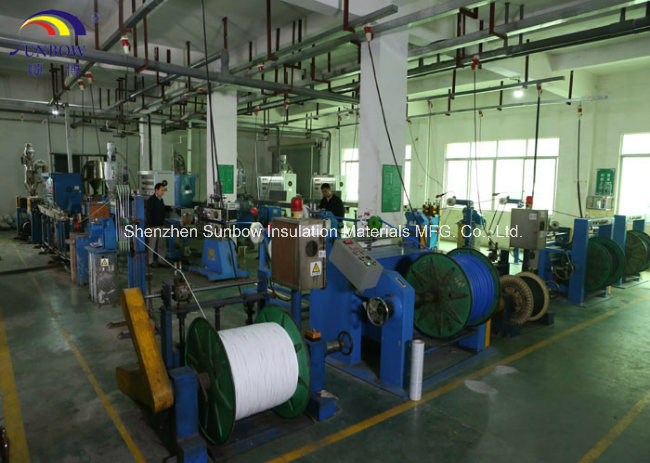

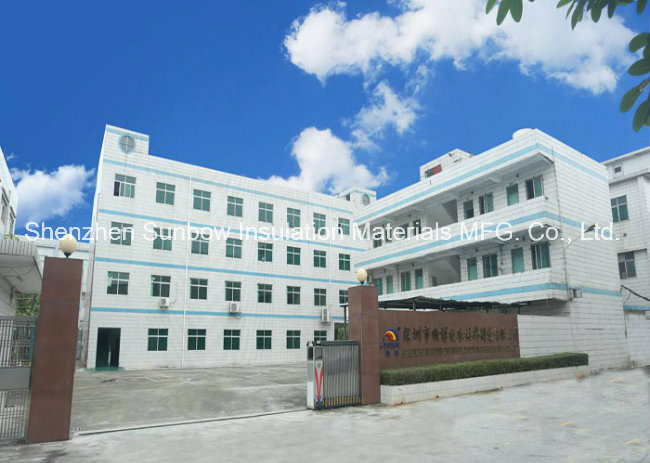

Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10, 000 square meters. We successfully passed ISO9001: 2008 and TS16949 international quality management system, now ISO14001 system is also pushing.
Over the years, we have been enjoying good reputation in our industry by adhering to the business philosophy of "Faith, Practical, and Responsive. " We also get supports and trusts from many international well-known enterprises. Thanks greatly for so many help and cooperation from our partnership, such as Philips, Whirlpool, Conair, Emerson, GE, Black & Decker, SEB, ABB, Schneider, Siemens, Electrolux, Toshiba, Panasonic, Hitachi, Mitsubishi, Samsung, China's Huawei, Haier, CRRC, and many other famous enterprises' trust directly and indirectly; Furthermore, as the second level supplier for automotive system, Sunbow products have been indexed in IMDS. We also have successfully become the qualified supplier for Volvo, Land-Rover, GM, Honda, Suzuki, Nissan, Hyundai and so on.
We know that our task is long-term and arduous, but opportunities are aside with challenges. We "Sunbow" people will take on a new look and work hard to provide our customers the best quality products, first-rate service, the most competitive price and the most reliable technical supports. Return to our customers, return on the community.
