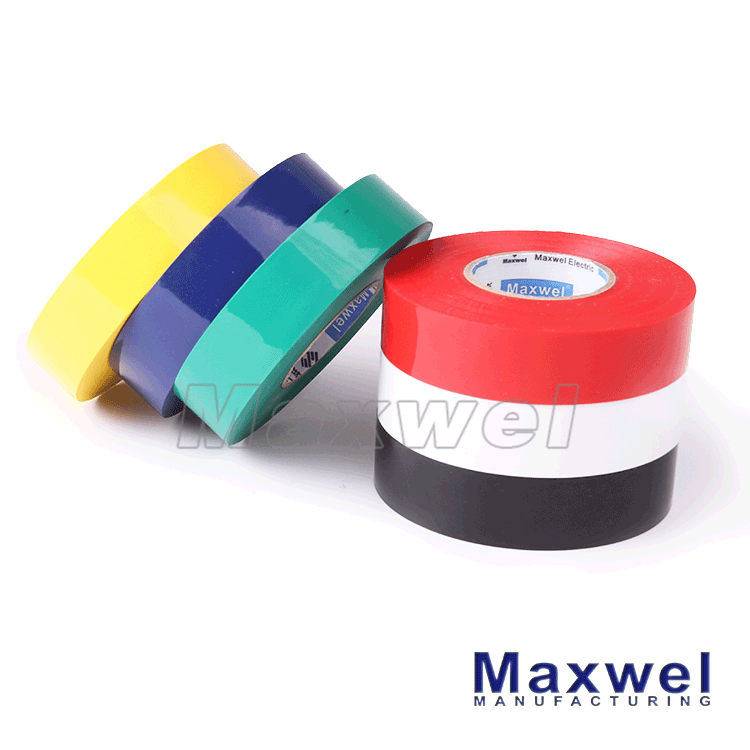

Flame Retardant PVC Electrical Insulation Tape (M130B)

Name: Flame Retardant PVC Electrical Insulation Tape (M130B)
Brand: all-electronics-online.com
SKU: 705236445
Availability: InStock
Rating: 4.4 (74 reviews)

Price:	US $ 0.073/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Roll
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	M130B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	Plastic
Thermal Rating:	Y 90
Maximum Voltage:	<10KV

Product Description

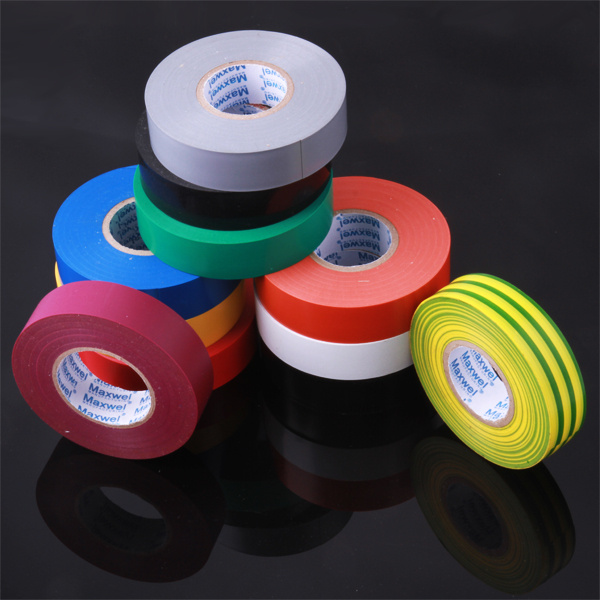

Self adhesive PVC electrical insulation tape, PVC tape, pvc adhesive tape

Feature:
Excellent insulation
Good flame retardant
Excellent resistance to voltage and low temperature

Specification:
Size: 19mm x 9.14m
Log Roll: 1250mm width, length can be cut as customers' request.
Thickness: 0.13-0.2mm
Colour: Black, red, blue, grey, yellow, etc( any color can be requested)
Adhesive: 1.5(N/cm)
Tensile: 25(N/cm)
Elongation: 200%
Temperature: 80
Voltage break dowm: ≥ 40° C

Application: Used for wrapping electrical wires and cables etc.

Code	Backing	Adhesive	Thickness (mm)	Adhesion (N/cm)	Tensile (N/cm)	Elongation (%)	Temperature (° C)	Voltage breakdown(kv/mm)	Features & application
100D	PVC	rubber	0.1	1.5	14	160	80	≥ 40	Used for wrapping electric wires and cables etc.
110D	PVC	rubber	0.11	1.5	15	160	80	≥ 40
130D	PVC	rubber	0.13	1.5	17	160	80	≥ 40
150D	PVC	rubber	0.15	1.5	22	200	80	≥ 40
165D	PVC	rubber	0.165	1.5	25	200	80	≥ 40	Be up to the UL standard, used for wrapping electric wires and cables etc.
180D	PVC	rubber	0.18	1.5	28	200	80	≥ 40
190D	PVC	rubber	0.19	1.5	28	200	80	≥ 40
200D	PVC	rubber	0.2	1.5	30	220	80	≥ 40
100Z	PVC	rubber	0.1	1.5	14	160	80	≥ 40	Flame retardant, used for wrapping electric wires, automotive wire harness and cables ect.
110Z	PVC	rubber	0.11	1.5	15	160	80	≥ 40
130Z	PVC	rubber	0.13	1.5	17	160	80	≥ 40
150Z	PVC	rubber	0.15	1.5	22	200	80	≥ 40
165Z	PVC	rubber	0.165	1.5	25	200	80	≥ 40	Be up to the UL standard, flame retardant, used for wrapping electric wires, automotive wires harness and cables etc.
180Z	PVC	rubber	0.18	1.5	28	200	80	≥ 40
190Z	PVC	rubber	0.19	1.5	28	200	80	≥ 40
200Z	PVC	rubber	0.2	1.5	30	220	80	≥ 40
