Flame Retardant PVC Electrical Vinyl Tape

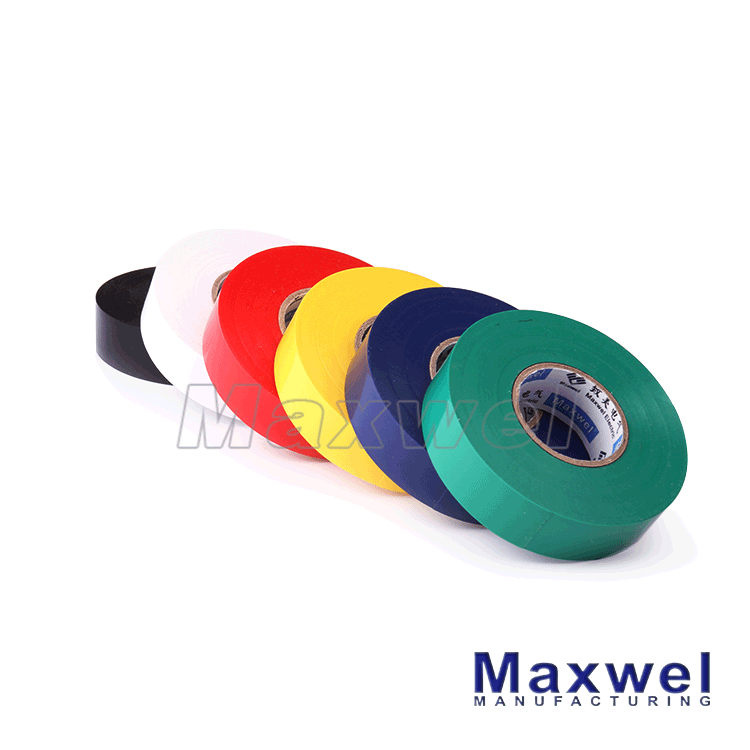

Name: Flame Retardant PVC Electrical Vinyl Tape
Brand: all-electronics-online.com
SKU: 704401165
Availability: InStock
Rating: 4.6 (20 reviews)

Price:	US $ 0.1022/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	30000/Roll
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	180D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Adhesive:	Rubber
Certificate:	UL
Thickness:	0.10mm-0.20mm
Elongation:	160%-220%
Temperature:	80 Degree
Application:	Winding Wire Coating Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Thermal Rating:	Y 90
Maximum Voltage:	<10KV
Material:	PVC

Product Description

Flame retardant PVC Electrical Vinyl Tape

1. PVC electrical tape composed of soft film and rubber based PSA
2. Its charaterized by excellent insulation, good flame retardant and excellent resistance to voltage and low temperature

Application:
1. It is used for insulation protection of electrical wires and harness in automobile industry.
2. PET tape(polyester tape) composed of PET film and solvent based PSA is charaterized by good tensile strength and resistance to high temperature.
3. It is used for various packing and wrapping of transformer coils.

Code	Backing	Adhesive	Thickness (mm)	Adhesion (N/cm)	Tensile (N/cm)	Elongation (%)	Temperature (°C)	Voltage Breakdown (KV/mm)


100D	PVC	rubber	0.1	1.5	14	160	80	≥40
110D	PVC	rubber	0.11	1.5	15	160	80	≥40
130D	PVC	rubber	0.13	1.5	17	160	80	≥40
150D	PVC	rubber	0.15	1.5	22	200	80	≥40
165D	PVC	rubber	0.165	1.5	25	200	80	≥40
180D	PVC	rubber	0.18	1.5	28	200	80	≥40
190D	PVC	rubber	0.19	1.5	28	200	80	≥40
200D	PVC	rubber	0.2	1.5	30	220	80	≥40
100Z	PVC	rubber	0.1	1.5	14	160	80	≥40
110Z	PVC	rubber	0.11	1.5	15	160	80	≥40
130Z	PVC	rubber	0.13	1.5	17	160	80	≥40
150Z	PVC	rubber	0.15	1.5	22	200	80	≥40
165Z	PVC	rubber	0.165	1.5	25	200	80	≥40
180Z	PVC	rubber	0.18	1.5	28	200	80	≥40
190Z	PVC	rubber	0.19	1.5	28	200	80	≥40
200Z	PVC	rubber	0.2	1.5	30	220	80	≥40

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.

Contact us

Our factory is equipped with state-of-the-art testing equipment, and we perform inspections during every step of production to ensure quality. To learn more, contact us today.
