Flame Retardant Wire for Flexible Building

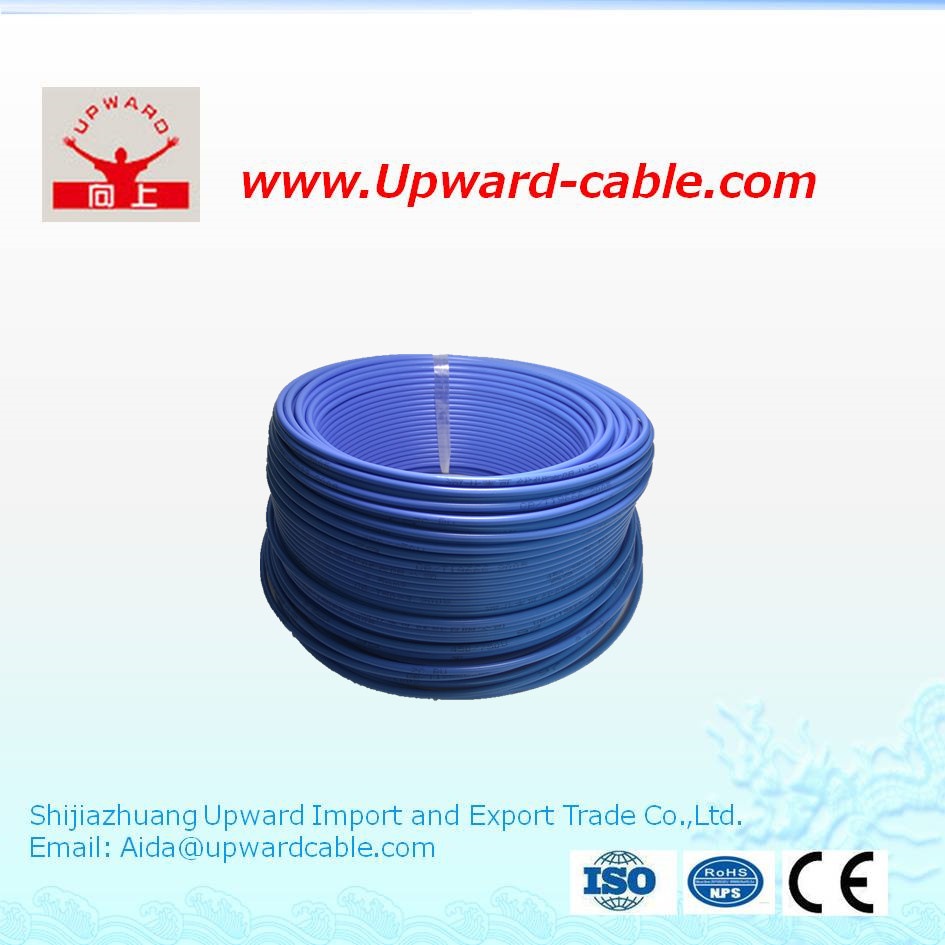

Name: Flame Retardant Wire for Flexible Building
Brand: all-electronics-online.com
SKU: 727294762
Availability: InStock
Rating: 4.8 (41 reviews)

Price:	US $ 0.15-0.28/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	BV-450/750×4
Application Range:	Flame Retardant
Texture Of Material:	Copper
Product Use:	Building
Insulated Material:	PVC
Type:	Insulated
Conductor Type:	Solid
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Brand:	Upward

Product Description

upwardcable

	Cross Section(mm2)	Conductor Size(No. of Cores/Diameter)	Rated Voltage	Nominal Insulation Thickness(mm)	Reference Weight(kg/km)	Application
Solid Type	0.5	1/0.80	300/500V 450/750V	0.6	8.0	Solid, Hard,Suitable for fixed installation
	0.75	1/0.97		0.6	11.4
	1	1/1.13		0.6	15.2
	1.5	1/1.38		0.7	21
	2.5	1/1.78		0.7	32
	4	1/2.25		0.8	47
	6	1/2.76		0.8	67
Stranded Type	1.5	7/0.52		0.7	22	Stranded, Flexible house wiring, Suitable for indoor applicant.
	2.5	7/0.68		0.7	35
	2.5	19/0.40		0.8	34
	4	7/0.85		0.8	50
	4	19/0.52		0.8	51
	6	7/1.04		0.8	71
	6	19/0.64		0.8	72
	10	7/1.35		1.0	118
	10	49/0.52		1.0	127
	16	7/1.70		1.0	177
	16	49/0.64		1.0	184
Flexible Type	1.5	30/0.25		0.7	22	Ultra Flexible, Soft Conductor, Suitable for small power equipment instrume

The cable can be of flame retardance, flame resistance, environment friendly or other property. OEM Available.

Single Core 11AWG Cable Wires is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.

Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.

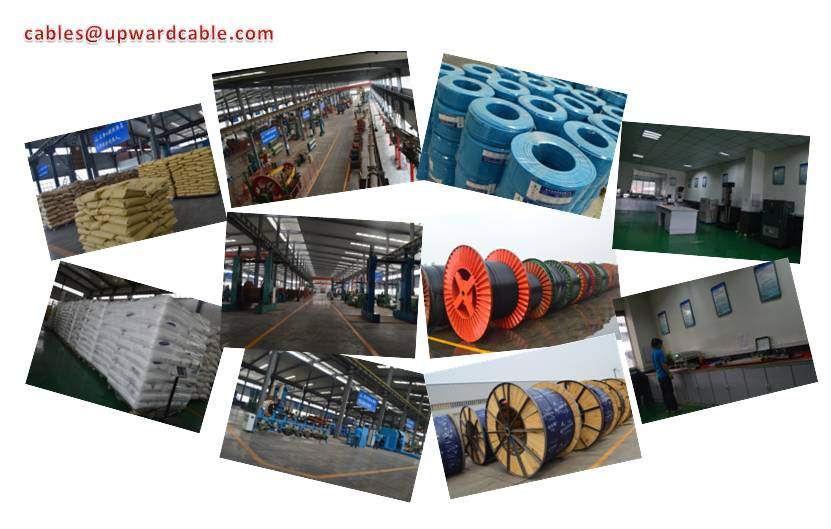

The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.

As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.

For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
