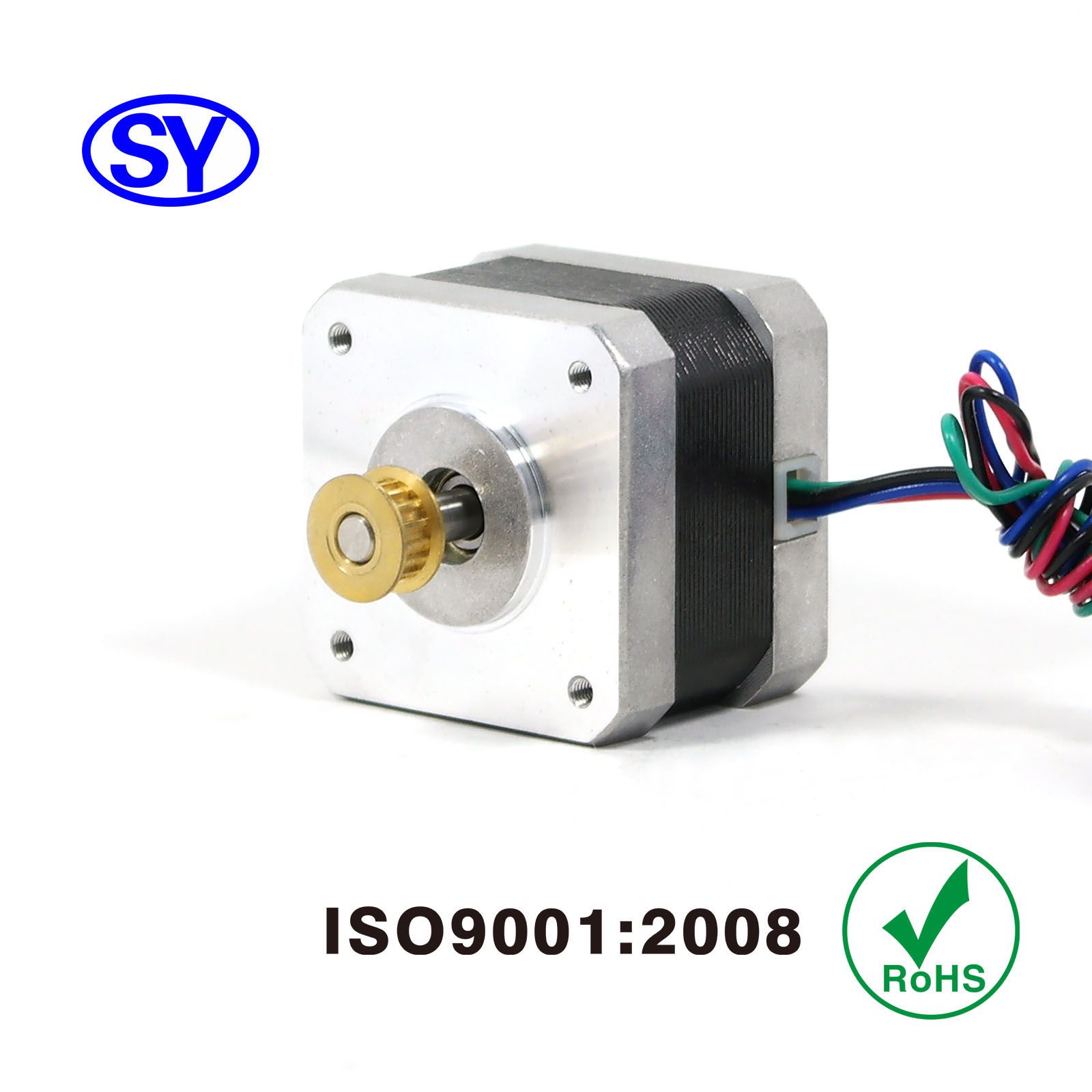

Flange 0.9deg 42mm (NEMA17) Stepper Electrical Motor
| Price: |
US $ 7.5-12.5/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
42BYGE201-A-15D16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Series: |
42 Byge |
| Step Angle: |
0.9deg |
| Shaft: |
Shaft with Flange |
| Shaft-End Length: |
15mm (0.59 in) |
| Payment Term: |
30% Deposit, 70% Balance Before Shipment |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Operate Mode: |
2 Phase-8 Parts |
| Brand: |
Shengyang |
| Certification: |
CE, RoHS |
Product Description
Flange 0.9deg 42mm (NEMA17) Stepper Electrical Motor Features: High Accuracy
Low Noise
Smooth Movement
Product Description
2. Specifications:
Step Angle: 0.9°± 5% full step, no load
Shaft Length: 15 mm (0.59 in)
Shaft: Shaft with Flange
Flange Gear: 16
Connectors: Lead Wires
Ambient Temperature:-24ºC - +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100mΩ 500 V DC
Dielectric Strength: 600 V AC for 1S, leakage current less than 1mA
2. Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive price will be provided for your reference.
Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.

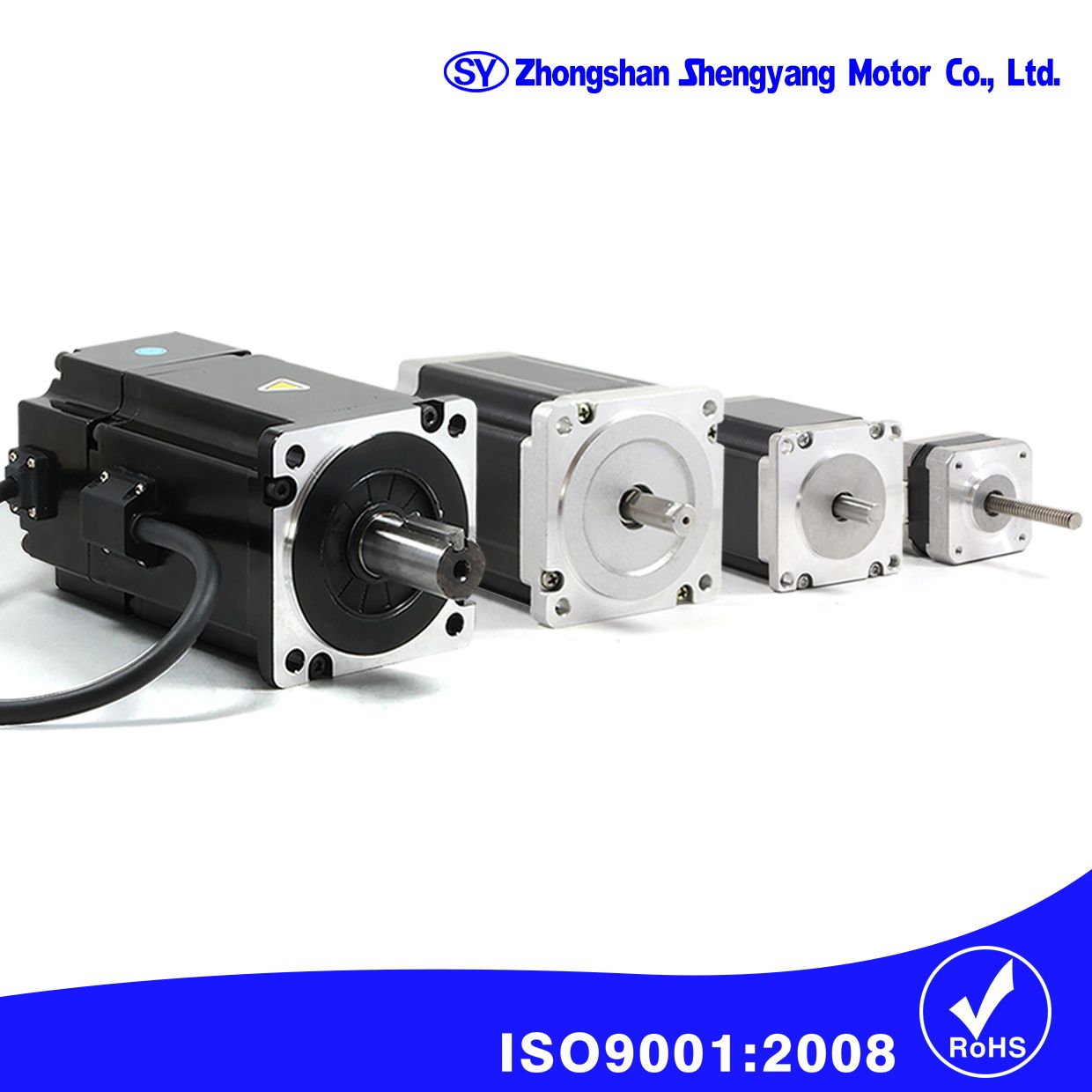

Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, raw materials comply with RoHS, all of the derived motor can be customized, welcome to contact us for more details.
Contacts: Ms Rita Law
Mobile(+86) 13631101993
www.shengyangmotor.com
Established in 2011, Shengyang Motor Co., Ltd is a professional manufacturer which produces, researches, develops, and sells various of stepping motors. It is well located in Zhongshan, Guangdong--in the Pearl River Delta where is very beautiful and wealthy with convenient communication.
Shengyang Motor constantly focuses on technological specification, unswervingly insists in providing high-quality products and best service and keeps firmly the service concept: To satisfy our clients is our eternal tenet. Shengyang Motor Co., Ltd has the advanced production facility, production line, quality controlled system and testing equipment for stepping motor.
Especially in producing, developing and selling precise motors, Shengyang Motor has developed a wide range of products which are widely used in laser light, stage lighting, printer, currency detector, industry control, monitors and so on. Being a supplier of professional precise stepping motor facing the nation and viewing the world with annual capacity more than 4, 000, 000 sets, Shengyang Motor enhances the quality of products constantly by absorbing the experience of motor manufacturer both at home and abroad, and introducing the latest technology and equipment to ensure the constant development of the company. Apart from providing standard products (following the national standard or international standard), we can also customize products according to the requirements of customers.
With high-quality products and supports from a large number of suppliers and customers, Shengyang Motor won great credit in stepping industry and is becoming a famous brand in the field.
Shengyang Motor insists on consolidating its good reputation by stabilizing quality and reacting quickly to meet promises that we make to all customers.
As a young, energetic, practice and creative team, Shengyang Motor emphasizes the service idea of thinking all customers' profit firstly and highlights making the best cost performance programme. Shengyang Motor unswervingly insists the principle of "humanist, introducing and optimizing technology, stabling quality, moving customer, base on dometic and following the world" to serve customers all over the world.
