Flange Immersion Tubular Heater Heating Element
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
Immersion heater |
Product Description

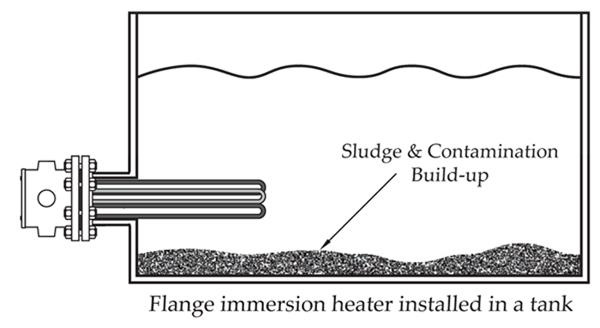

Flange immersion tubular heaterFlange immersion heaters are constructed of hairpin bent tubular heater elements brazed or welded into ANSI standard flanges or plate flanges of various shapes and sizes. ANSI flange heaters are typically used for large volume, high power and/or higher pressure applications. Plate flange heaters are typically custom designed for use in smaller pieces of equipment such as boilers and chillers.
Features | 1.ANSI flanges 3" to 14" standard; up to 40" available, power ratings from 1kW to 1 MW+ and custom fit to application demands |
| 2.Standard 150lb flanges; 300lb & 600lb readily available, ensures proper pressure rating for your needs |
| 3.Copper, steel, SS and Incoloy® and other heater sheaths available, custom tailored to application requirements |
| 4.Element Spacers & Supports, maximizes heater life and application performance |
| 5.Recompacted element bends provide longer life by ensuring insulation integrity |
Product applications
Process Air & Gas Heating Process Air & Gas Heating
Process Chemical Reactors Process Chemical Reactors
Boilers and Water Heating Boilers and Water Heating
Rinse Tank Heating Rinse Tank Heating
Parts Cleaning Solutions Parts Cleaning Solutions
Lube Oil & Fuel Oil Heating Lube Oil & Fuel Oil Heating

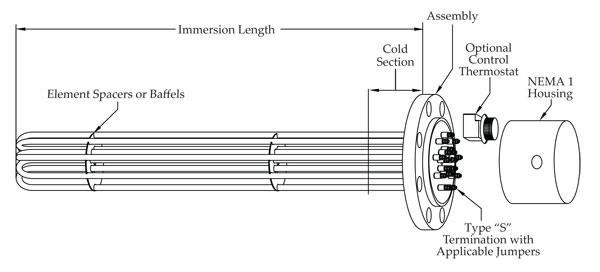

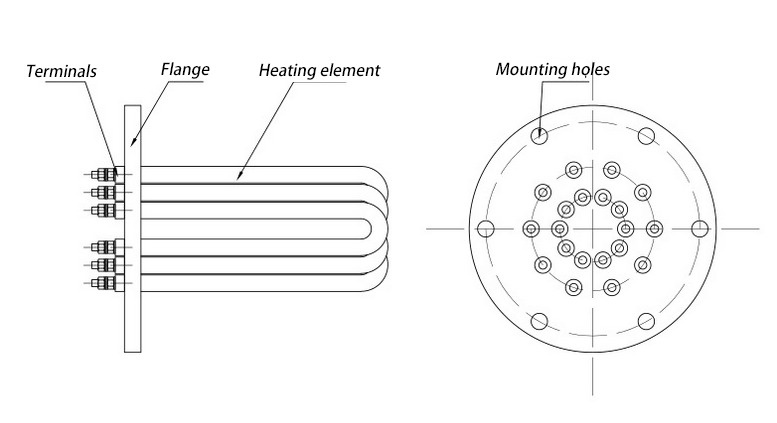

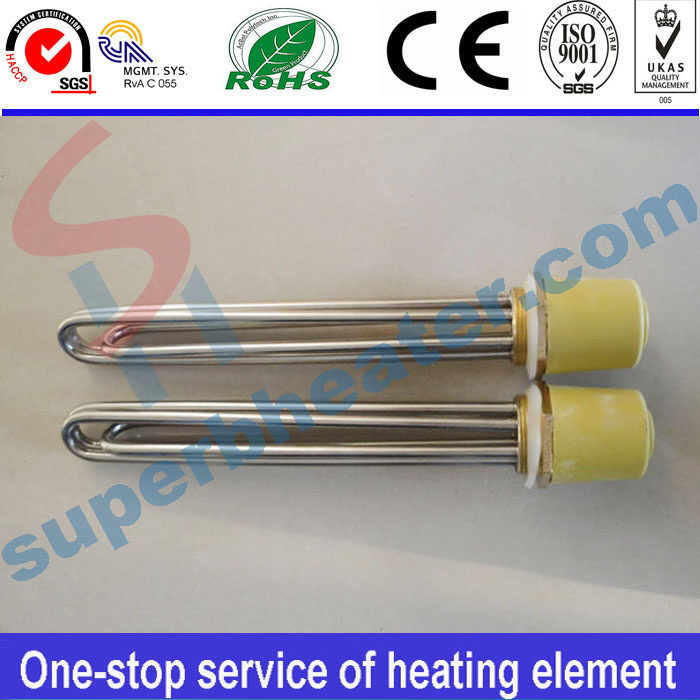

When ordering, please check the above drawingFlange electric tube is a number of electric heating pipe or screwed to a flange, the formation of a
high-power, the overall folding of the heater can be welded to the flange temperature control probe,
made of temperature control Of the overall heater. To prevent dry, effectively extend the service
life. There are two connections, one thread connection, commonly used specifications size G1 / 2--2
inch, the second is the flange connection. Also known as the flat flange connection . Common
specifications size DN50mm - DN300mm, flange electric tube flange commonly used materials are brass,
stainless steel, 10 steel, pipe material commonly used 10 steel, stainless steel, copper. Common
specifications, 1.5KW, 3KW, 6KW, 9KW , 12KW, 15KW, 30KW to 500kw, etc. Used for electric water
boilers, electric boilers, solar energy systems, solar water tanks, chemical pools, baths, swimming
pools and other places to be heated. | 1.Reference voltage: 220V / 380V |
| 2.Heating diameter: Φ8.5-Φ22 |
| 3.Heat pipe: SS304 stainless steel, SL316 stainless steel 2520 stainless steel 2580 stainless steel titanium material stainless steel, 10 steel, copper |
| 4.The main power: 3KW-500KW |
| 5.Working pressure: 1.0MPa-3.0MPa |
| 6.flange and thread head Material: stainless steel, carbon steel, copper |
(This product can be more customized customer requirements, to provide drawings, voltage, power, size)

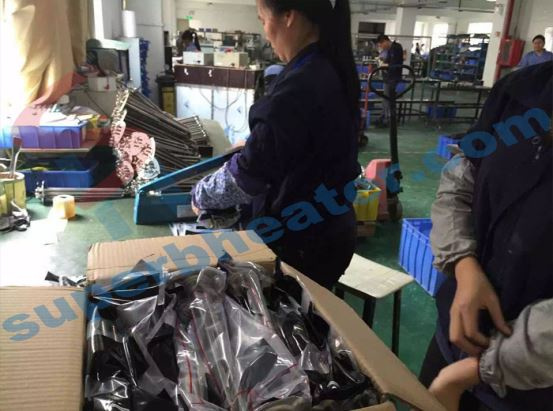

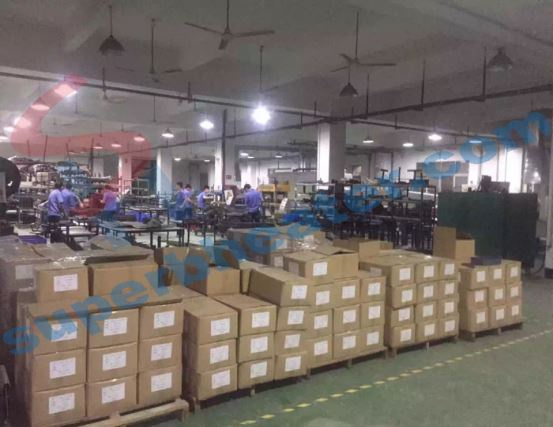

Packing and shipment
OUR ADVANTAGES1.Minimum order: 3pcs
2.Delivery time : in stock 1-2days ,out stock 3-7days
3.More than 50 different sizes stock
4.Products are divided into two grades
A grades:use the The world's top material Best quality,Meet or exceed the same quality in Europe and America,Only 40% of the price of similar products in Europe and America To meet customer demand for high quality.
B grades:use the The china top material,Best quality in china ,Meet the standard for quality and price requirements of customers
5.Provide OEM service.
6.Quality Assurance:Under normal conditions consistent with the design range ,
A grades 365days
B grades 180daysSuperb Heater Technology has been focused on the production of stainless steel sauna heater parts heating element tubular heaters since 1985, which is well-known as one of the leading manufacturers and suppliers of stainless steel sauna heater parts heating element tubular heaters. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Mob:+8613538046702
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
