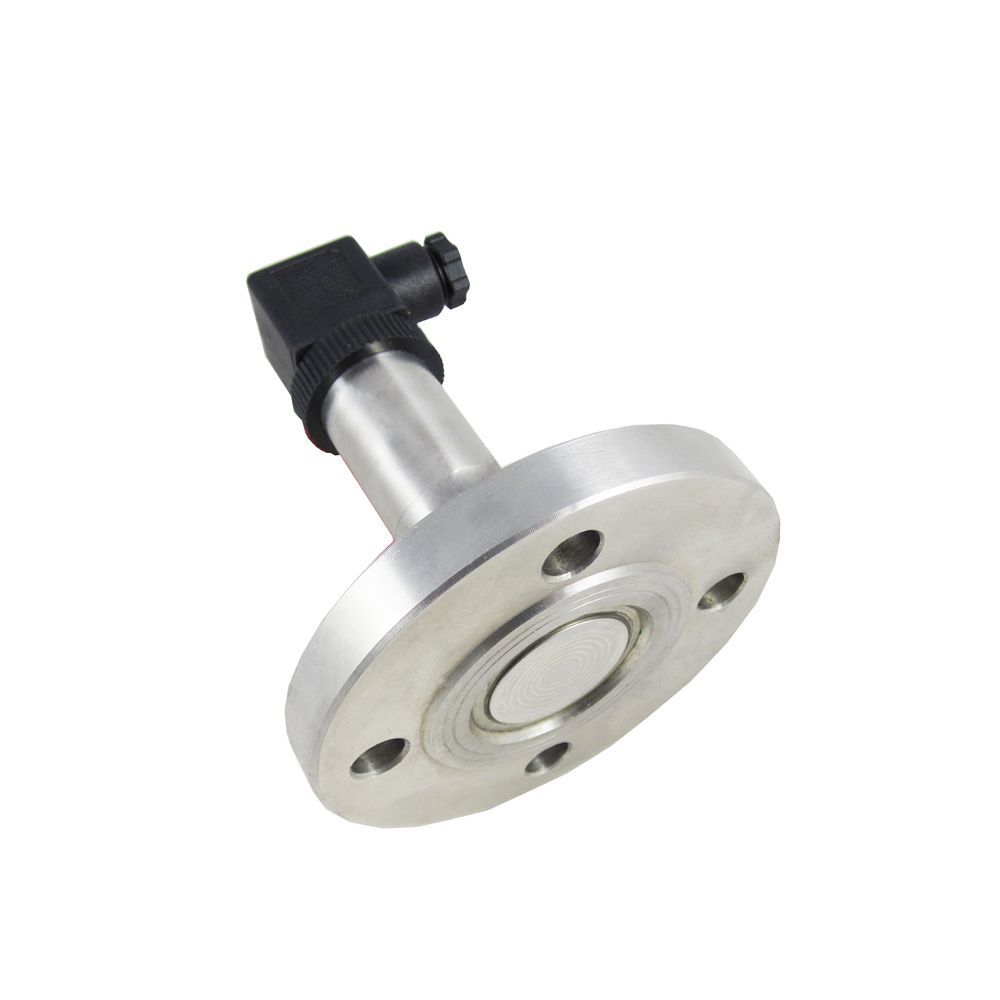

Flange Sanitary Pressure Transmitter/Transducer with Ce (PCM450)

Name: Flange Sanitary Pressure Transmitter/Transducer with Ce (PCM450)
Brand: all-electronics-online.com
SKU: 716550595
Availability: InStock
Rating: 4.5 (66 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM450
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	0~10kpa...10MPa
Pressure Reference:	Gauge, Absolute, Sealed Gauge
Output:	4-20mA
Accuracy:	±0.5%F.S.
Excitation:	24VDC
Compensated Temp.:	-10-70ºC, -20-85ºC
Operating Temp.:	-40-125ºC
Oil Filling:	Silicon Oil, M20
Housing Material:	304
Sensor Material:	316L

Product Description

Flange DN25, DN50 and DN80 connection available
4 to 20mA 2-wire output, others available
CE certificate

PCM450 meets the sanitary standard for pressure and level measurement in food, pharmaceutical, cosmetic, and beverage industries. It is designed for "clean in place"(CIP), and "sterilize in place"(SIP) maintenance.

Pressure range
Pressure range	10kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa
Pressure reference	Gauge pressure \| Absolute pressure \| Sealed gauge pressure
Overpressure	200%F.S.
Output signal
Output	4-20mA \| 4-20mA+HART \| 4-20mA+RS485
Specification
Accuracy (linearity, repeatability and hysteresis)	±0.5%F.S. (Calibrated in vertical mounting position)
Excitation	24VDC
Compensated temp.	-10-70ºC \| -20-85ºC
Operating Temp.	-40-125ºC
Medium Temp.	-40-125ºC
Storage Temp.	-40-125ºC
Zero temp. coefficient	±1.5%F.S.max. (-20-85ºC)
Span temp. coefficient	±1.5%F.S.max. (-20-85ºC)
Pressure connection	see last page "how to order"
Protection	IP65
Housing material	Stainless steel 304 (SS316 for the sensor inside)
Long-term stability	≤0.2%F.S./year
Oil filling	Silicon oil \| M20
Flange	DN25 \| DN50 \| DN80
Weight	1000g(approx)
