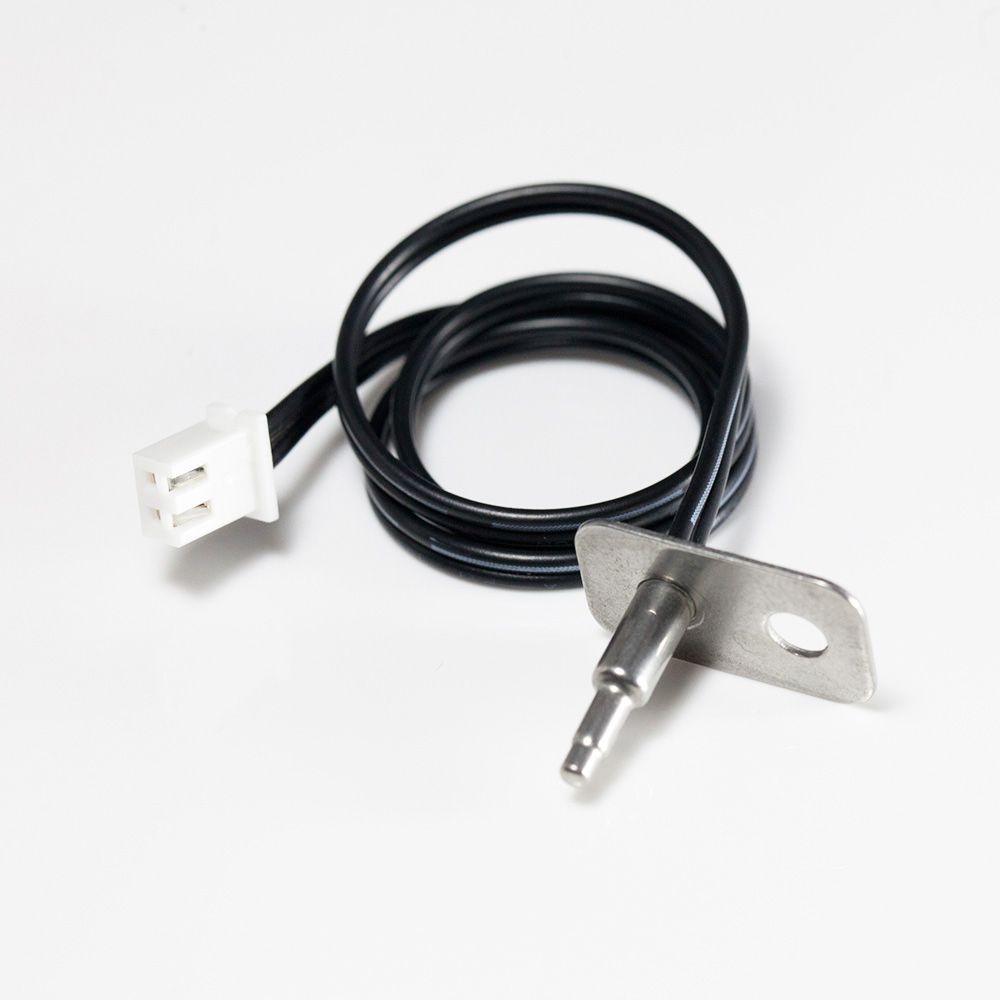

Name: Flange Shape Freezers Ntc Temperature Sensor
Brand: all-electronics-online.com
SKU: 809687475
Availability: InStock
Rating: 4.8 (113 reviews)

Price:	US $ 0.1-1/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MFP-4 Series
Material:	PVC,Teflon Wire

Product Description

Features:
1. Easy mounting,Stainless steel flange mounting housing;
2. General purpose flanged design with two mounting holes;
3. Operating ranges from -30 to150 degrees centigrade;
4. All metal construction for ruggedness and fast response ;
5. Excellent thermal cycle endurance;
6. Simple,low-cost sensor;
7. Good coherence and Interchange capability thanks for the high precision of resistance and B value;
8. Connected with high temperature and good insulation PTFE cable or silicone braided cable.

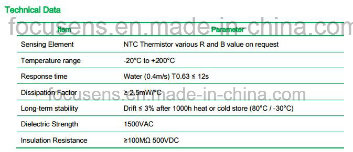

Parameter:

Resistance 25ºC	5KΩ	10KΩ	30KΩ	50KΩ	100KΩ	/
Accuracy	±0.1ºC	±0.2ºC	±1%	±2%	±3%	±5%
B value	3380K	3435K	3470K	3935K	3950K	3977K
Wire lenght	50mm	100mm	200mm	500mm	1000mm	customized
Wire Type	PVC(UL2651)	Teflon(UL1332)	XLPE(UL3266)	PVC(UL2651)	Others	/
Probe	Brass	SUS	Plastic	Others		/
Connector	2.54	2.0	Others	/	/	/

Application:
1. air conditioners,refrigerators,freezers
2. Water heaters, potable water heaters, air warmers, washers, disinfection cases
3. Washing machines, driers, thermotanks
