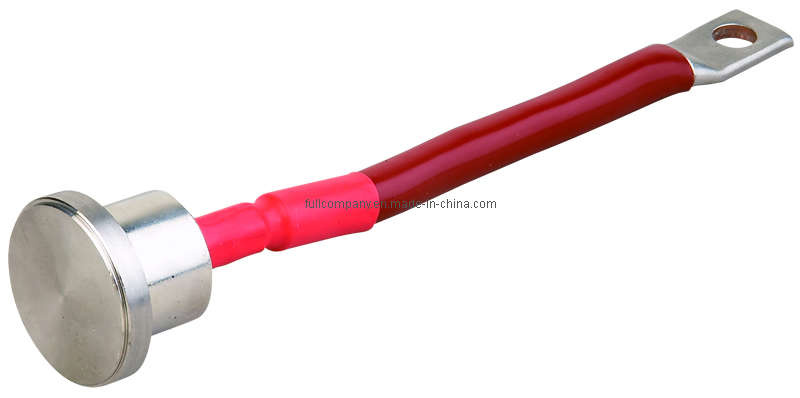

Flat Diode (D150A1600V)

Name: Flat Diode (D150A1600V)
Brand: all-electronics-online.com
SKU: 683655145
Availability: InStock
Rating: 4.7 (103 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	D150A1600V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing Technology:	Optoelectronic Semiconductor
Material:	Compound Semiconductor
Type:	N-type Semiconductor
Package:	PGA(',Pin Grid Array Package)

Product Description

DIODE:
Standard Recovery Discrete
Standard Recovery Module

SCR:
Phase Control Discrete
Phase Control Module
Fast Discrete
Fast Module
Triac

BRIDGES:
Single Phase

tandard Recovery Discrete 4

Features
Wide current range
Peak reverse voltage up to 1600V
High surge current capability
Stud cathode and stud anode version

Typical Applications
Power supplies
Machine tool controls
Power supplies
Battery chargers
Welders

Parameter	Value			Units
Type number	D100N(R)..	D150N(R)..	D200N(R)..	D25F..
VRRM	400 to 1600	400 to 1600	400 to 1600	V
IF(AV)	100	150	200	A
@ TC	90	90	90	°C
VFM @ 25°C	1.40	1.40	1.40	V
IFSM (50Hz)	1600	2650	3500	A
IFSM (60Hz)	1710	2800	3650	A
Rth(JC)	0.40	0.23	0.22	K/W
T J	-40 to 150	-40 to 150	-40 to 150	°C
T Max. allowed mounting torque +0 -20%	14	14	14	N.m

Fivefine power Established in 1998, which is the national non-regional corporation that have the advantages of install-ing simply, using conveniently, beautiful apprearance, high reliability, easy to whole loyout, simply outline design, shorten the R & Dperiodes, etc, We are going in for the development, production and sale of the electric connection protection system products of industrial automated equipment.

Business items: Kind of machine tool energy chains, various rectifiers, diodes, thyristor, power semiconductor modules, and cable accessories & power fitting, such as cable lugs, clamps, connector, heat shrinkable tube, cable tie, egg incubator. etc.

The corporation has been certified to ISO9001: 2000 and ISO 14000. The products have owned production license and manufactured according to international standard. All products have passed test by center of Quality inspection of electric power of nation electric power corporation, China electric Power research Institute and Xian high-voltage Research Institute. etc.
