| Prod Model: |
H07VVH6-F, YFFB |
| Rated Voltage: |
300/500V; 450/750V |
| Anti-Bending Of Features: |
Excellently Flexible&Bendable |
| Conformity: |
RoHS and CCC Certificate |
| Conductor: |
Meet GB 3956 Class 5 Conductor Standard |
| Test Voltage: |
2500V |
| Fire-Resistant Standard: |
Comply with IEC60332-1 |
| Cable Flexibility: |
Flexible |
| Free Sample: |
Available |
| Jacket Color: |
Prior Black or as UR Request |
| Item Name: |
Crane Power Control Travelling Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Industry/Power Transmission |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
TUV, PSE, SAA |
| Range Of Application: |
RoHS, Flame Retardant, Cold-Resistant |
| Brand: |
Jiukai/OEM |
| Material Shape: |
Flat Cable |
Product Description

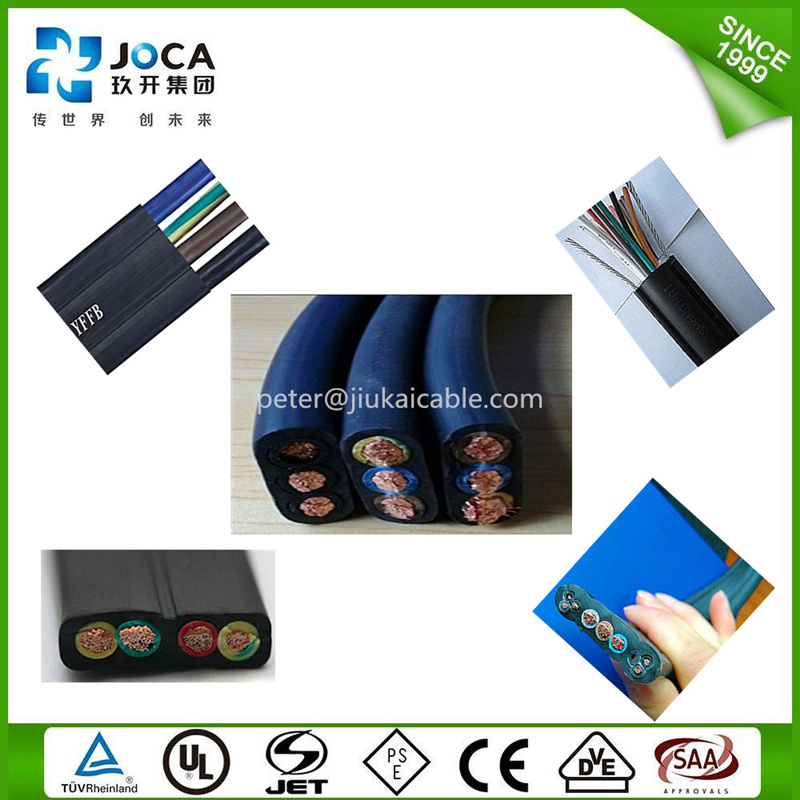

Flat Elevator Crane Power Control Travelling CableApplications:As connecting and control cable for cranes and conveyors, it is suitable for the places of railway stations, crane and other related situations.
It is suitable control and connection cable for cranes and conveyors on building sites, container goods railway station and dockyards where operating conditions rough.
Properties:Sheath: special polychloreprene (Butadiene-acrylonitrile rubber),it remains flexible at -15c ,flame resistance and self--extinguishing
Structure:1.Conductor: superfine copper strands acc. to VDE0295,class 5.
2.Insulation: mixed PVC, resistant to oil, flame resistance and self-extinguishing
Color: acc. to 2271IEC(brown, blue, black, green/yellow)
5 cores or more with black number with white digital coding
3.Sheath: Butadiene-acrylonitrile rubber; resistant to oil, flame retardant and self- extinguishing
4.Color: black (RAL9005) or grey(RAL7001).
5.Standard: acc. to VDE0482,part 265-2-1 resp.EN50265-2-1 and IEC603321-1
Technical data:1.Rated voltage: 300/500V
Test voltage:<=1.5mm 2500V >1.5mm:3000V
2.Minimum bending radius:0.3m
3.Burning vertically test: GB/T1 8380.1--2001,IEC60332--1:1993 test
4.Passedstandard:GB5023.6 ,IEC60227--6,EN50214.
Used under the normal conditions, the temperature of conductors is lower than 70ºC
5.Temperature range:-15C to +40C
Remarks:Cables are recommended for installations where the suspended length doesn't exceed 80 m: and the speed of travel does not exceed 4m/s.
If it is more than this ,with steel.
More Dimensions and Parameters for Crane Power Control Travelling Cable| Type | Cores | Cross section | Width (mm) | Thickness (mm) | Weight(kg/km) | Shape |
| YFFB | 4 | 4 | 21.9±1.5 | 7.3±0.5 | 360.4 | Parallel |
| YFFB | 5 | 4 | 27.3±1.5 | 7.3±0.5 | 447.3 | Parallel |
| YFFB | 6 | 4 | 31.7±2.0 | 7.3±0.5 | 523.8 | Parallel |
| YFFB | 7 | 4 | 36.1±2.0 | 7.3±0.5 | 600.3 | Parallel |
| YFFB | 8 | 4 | 40.5±2.0 | 7.3±0.5 | 676.8 | Parallel |
| YFFB | 9 | 4 | 44.9±2.0 | 7.3±0.5 | 753.3 | Parallel |
| YFFB | 10 | 4 | 49.3±2.0 | 7.3±0.5 | 829.8 | Parallel |
| YFFB | 11 | 4 | 53.7±2.0 | 7.3±0.5 | 906.3 | Parallel |
| YFFB | 12 | 4 | 58.1±2.0 | 7.3±0.5 | 982.8 | Parallel |
| YFFB | 13 | 4 | 62.5±2.5 | 7.3±0.5 | 1059.3 | Parallel |
| YFFB | 14 | 4 | 67.9±2.5 | 7.3±0.5 | 1146.2 | Parallel |
| YFFB | 15 | 4 | 72.3±2.5 | 7.3±0.5 | 1222.7 | Parallel |
| YFFB | 16 | 4 | 76.7±2.5 | 7.3±0.5 | 1299.2 | Parallel |
| YFFB | 17 | 4 | 81.1±2.5 | 7.3±0.5 | 1375.7 | Parallel |
| YFFB | 18 | 4 | 86.5±2.5 | 7.3±0.5 | 1462.5 | Parallel |
| YFFB | 19 | 4 | 90.9±2.5 | 7.3±0.5 | 1539 | Parallel |
| YFFB | 24 | 4 | 60.1±2.5 | 16.1±1.0 | 1866.9 | Intertwist |
| YFFB | 30 | 4 | 78.8±2.5 | 14.8±1.0 | 2361.4 | Intertwist |
| YFFB | 36 | 4 | 86.7±2.5 | 16.1±1.0 | 2851.5 | Intertwist |
| YFFB(G) | 2 | 4 | 17.6±1.0 | 7.3±0.5 | 266 | Parallel (With Steel wire) |
| YFFB(G) | 3 | 4 | 22.0±1.5 | 7.3±0.5 | 342.5 | Parallel (With Steel wire) |
| YFFB(G) | 4 | 4 | 27.4±1.5 | 7.3±0.5 | 429.3 | Parallel (With Steel wire) |
| YFFB(G) | 5 | 4 | 32.8±1.5 | 7.3±0.5 | 516.2 | Parallel (With Steel wire) |
| YFFB(G) | 6 | 4 | 36.2±2.0 | 7.3±0.5 | 582.3 | Parallel (With Steel wire) |
| YFFB(G) | 7 | 4 | 41.6±2.0 | 7.3±0.5 | 669.2 | Parallel (With Steel wire) |
| YFFB(G) | 8 | 4 | 46.0±2.0 | 7.3±0.5 | 745.7 | Parallel (With Steel wire) |
| YFFB(G) | 9 | 4 | 50.4±2.0 | 7.3±0.5 | 822.2 | Parallel (With Steel wire) |
| YFFB(G) | 10 | 4 | 54.8±2.0 | 7.3±0.5 | 898.7 | Parallel (With Steel wire) |
| YFFB(G) | 11 | 4 | 59.2±2.0 | 7.3±0.5 | 975.2 | Parallel (With Steel wire) |
| YFFB(G) | 12 | 4 | 63.6±2.5 | 7.3±0.5 | 1051.7 | Parallel (With Steel wire) |
| YFFB(G) | 13 | 4 | 68.7±2.5 | 7.3±0.5 | 1138.2 | Parallel (With Steel wire) |
| YFFB(G) | 14 | 4 | 74.1±2.5 | 7.3±0.5 | 1225.1 | Parallel (With Steel wire) |
| YFFB(G) | 15 | 4 | 78.5±2.5 | 7.3±0.5 | 1301.6 | Parallel (With Steel wire) |
| YFFB(G) | 16 | 4 | 82.9±2.5 | 7.3±0.5 | 1378.1 | Parallel (With Steel wire) |
| YFFB(G) | 17 | 4 | 87.3±2.5 | 7.3±0.5 | 1454.6 | Parallel (With Steel wire) |
| YFFB(G) | 18 | 4 | 92.7±2.5 | 7.3±0.5 | 1541.4 | Parallel (With Steel wire) |
| YFFB(G) | 24 | 4 | 69.1±2.5 | 16.1±1.0 | 2106.8 | Intertwist(with steel wire) |
| YFFB(G) | 30 | 4 | 87.0±2.5 | 14.8±1.0 | 2567.8 | Intertwist(with steel wire) |
| YFFB | 2 | 6 | 13.5±1.0 | 8.0±0.5 | 254.6 | Parallel |
| YFFB | 3 | 6 | 18.6±1.0 | 8.0±0.5 | 358.2 | Parallel |
| YFFB | 4 | 6 | 26.9±1.5 | 8.0±0.5 | 498.1 | Parallel |
| YFFB | 5 | 6 | 32.0±2.0 | 8.0±0.5 | 601.7 | Parallel |
| YFFB | 6 | 6 | 38.7±2.0 | 8.0±0.5 | 723.4 | Parallel |
| YFFB | 7 | 6 | 42.2±2.0 | 8.0±0.5 | 809 | Parallel |
| YFFB | 8 | 6 | 48.9±2.0 | 8.0±0.5 | 930.7 | Parallel |
| YFFB | 9 | 6 | 54.0±2.0 | 8.0±0.5 | 1034.3 | Parallel |
| YFFB | 10 | 6 | 59.1±2.0 | 8.0±0.5 | 1138 | Parallel |
| YFFB | 11 | 6 | 62.6±2.5 | 8.0±0.5 | 1223.5 | Parallel |
| YFFB | 12 | 6 | 67.7±2.5 | 8.0±0.5 | 1327.1 | Parallel |
| YFFB | 13 | 6 | 72.8±2.5 | 8.0±0.5 | 1430.7 | Parallel |
| YFFB | 14 | 6 | 79.5±2.5 | 8.0±0.5 | 1552.5 | Parallel |
| YFFB | 15 | 6 | 84.6±2.5 | 8.0±0.5 | 1656.1 | Parallel |
| YFFB | 16 | 6 | 89.7±2.5 | 8.0±0.5 | 1759.7 | Parallel |
| YFFB | 24 | 6 | 68.7±2.5 | 18.2±1.0 | 2534.4 | Intertwist |
| YFFB | 30 | 6 | 90.1±2.5 | 16.7±1.0 | 3205.7 | Intertwist |
| YFFB(G) | 2 | 6 | 22.5±1.5 | 8.0±0.5 | 411.4 | Parallel(with steel wire) |
| YFFB(G) | 3 | 6 | 27.6±1.5 | 8.0±0.5 | 515 | Parallel(with steel wire) |
| YFFB(G) | 4 | 6 | 35.9±2.0 | 8.0±0.5 | 654.9 | Parallel(with steel wire) |
| YFFB(G) | 5 | 6 | 41.0±2.5 | 8.0±0.5 | 758.5 | Parallel(with steel wire) |
| YFFB(G) | 6 | 6 | 46.1±2.5 | 8.0±0.5 | 862.1 | Parallel(with steel wire) |
| YFFB(G) | 7 | 6 | 51.2±2.5 | 8.0±0.5 | 965.8 | Parallel(with steel wire) |
| YFFB(G) | 8 | 6 | 57.9±2.5 | 8.0±0.5 | 1087.5 | Parallel(with steel wire) |
| YFFB(G) | 9 | 6 | 63.0±2.5 | 8.0±0.5 | 1191.1 | Parallel(with steel wire) |
| YFFB(G) | 10 | 6 | 68.1±2.5 | 8.0±0.5 | 1294.8 | Parallel(with steel wire) |
| YFFB(G) | 11 | 6 | 71.6±2.5 | 8.0±0.5 | 1380.3 | Parallel(with steel wire) |
| YFFB(G) | 12 | 6 | 76.7±2.5 | 8.0±0.5 | 1483.9 | Parallel(with steel wire) |
| YFFB(G) | 13 | 6 | 81.8±2.5 | 8.0±0.5 | 1587.6 | Parallel(with steel wire) |
| YFFB(G) | 14 | 6 | 88.5±2.5 | 8.0±0.5 | 1709.3 | Parallel(with steel wire) |
| YFFB(G) | 24 | 6 | 78.7±2.5 | 18.2±1.0 | 2846.8 | Intertwist(with steel wire) |
| YFFB | 2 | 10 | 17.1±1.0 | 9.7±0.5 | 388 | Parallel |
| YFFB | 3 | 10 | 24.0±1.5 | 9.7±0.5 | 554.4 | Parallel |
| YFFB | 4 | 10 | 34.5±2.0 | 9.7±0.5 | 770.2 | Parallel |
| YFFB | 5 | 10 | 41.4±2.0 | 9.7±0.5 | 936.5 | Parallel |
| YFFB | 6 | 10 | 50.1±2.0 | 9.7±0.5 | 1127.6 | Parallel |
| YFFB | 7 | 10 | 55.2±2.0 | 9.7±0.5 | 1269.3 | Parallel |
| YFFB | 8 | 10 | 63.9±2.5 | 9.7±0.5 | 1460.4 | Parallel |
| YFFB | 9 | 10 | 70.8±2.5 | 9.7±0.5 | 1626.8 | Parallel |
| YFFB | 10 | 10 | 77.7±2.5 | 9.7±0.5 | 1793.1 | Parallel |
| YFFB | 11 | 10 | 82.8±2.5 | 9.7±0.5 | 1934.8 | Parallel |
| YFFB | 12 | 10 | 89.7±2.5 | 9.7±0.5 | 2101.2 | Parallel |
| YFFB(G) | 2 | 10 | 26.1±1.5 | 9.7±0.5 | 566.5 | Parallel(with steel wire) |
| YFFB(G) | 3 | 10 | 33.0±2.0 | 9.7±0.5 | 732.9 | Parallel(with steel wire) |
| YFFB(G) | 4 | 10 | 43.5±2.0 | 9.7±0.5 | 948.6 | Parallel(with steel wire) |
| YFFB(G) | 5 | 10 | 50.4±2.0 | 9.7±0.5 | 1115 | Parallel(with steel wire) |
| YFFB(G) | 6 | 10 | 57.3±2.0 | 9.7±0.5 | 1281.4 | Parallel(with steel wire) |
| YFFB(G) | 7 | 10 | 64.2±2.5 | 9.7±0.5 | 1447.8 | Parallel(with steel wire) |
| YFFB(G) | 8 | 10 | 72.9±2.5 | 9.7±0.5 | 1638.8 | Parallel(with steel wire) |
| YFFB(G) | 9 | 10 | 79.8±2.5 | 9.7±0.5 | 1805.2 | Parallel(with steel wire) |
| YFFB(G) | 10 | 10 | 86.7±2.5 | 9.7±0.5 | 1971.6 | Parallel(with steel wire) |
| YFFB(G) | 11 | 10 | 91.8±2.5 | 9.7±0.5 | 2113.3 | Parallel(with steel wire) |
The Advantage of Crane Power Control Travelling Cable1.High-speed moving performanceThe maximum moving speed of super multi-core flat elevator cable with an enhanced core can be up to 990m/s, which is also widely used in high-speed elevator in ultra-high building.
2.Not easy to reverse when under operationWith the internal structure of conversely twisted wire core placed symmetrically and flat shape of the cable, the cable is not easy to twist and shake when under operation.
3.Long Service LifeAfter the cycle of three million times simulation bend life test, the cable has no abnormality like disconnection and so on.
4.Save the spaceIt is easier and more efficient to install the flat elevator cable, and it is more space-saving to install with its smaller bend radius.

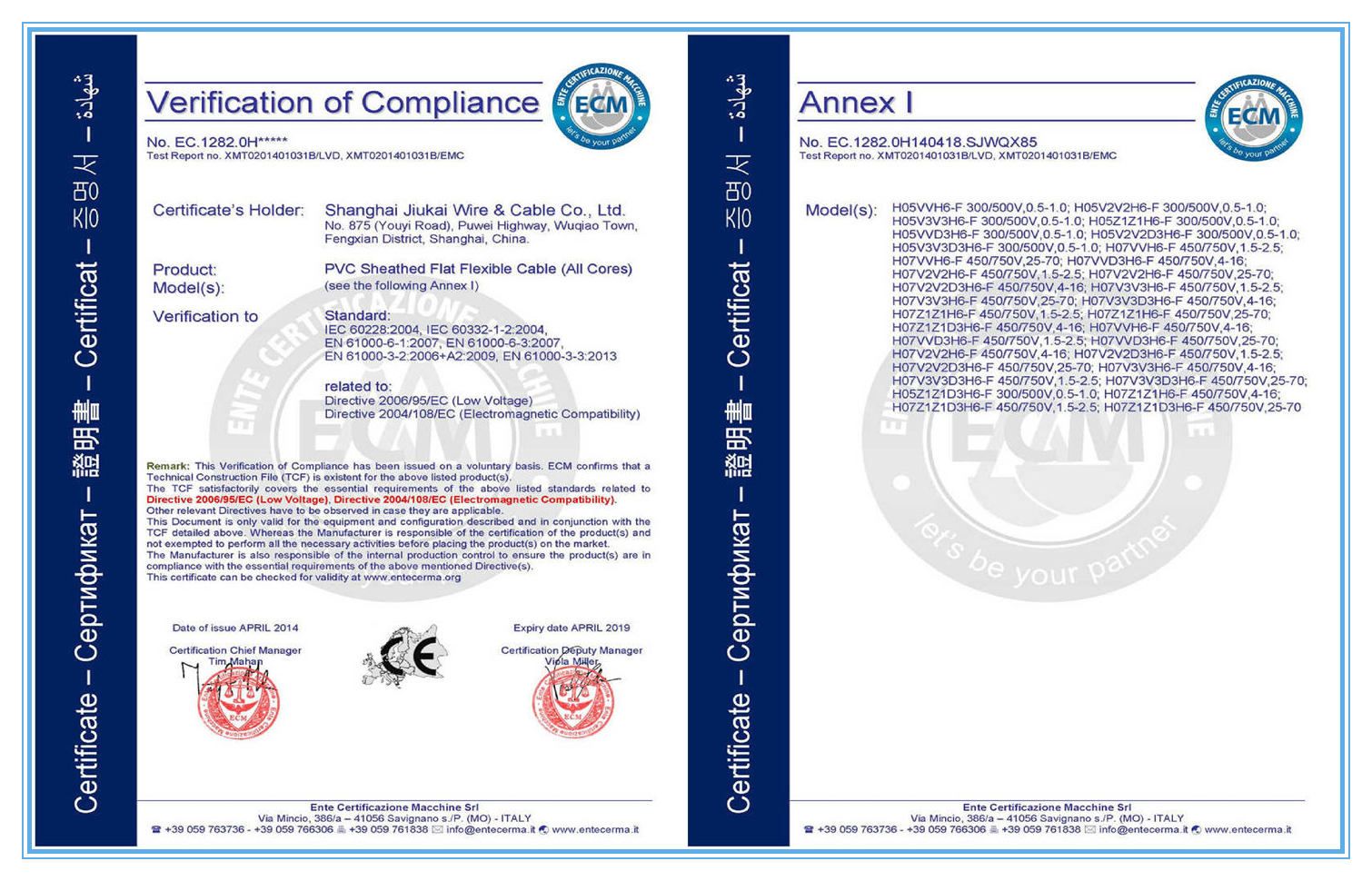

Approval of the Crane Cable
Packing&ShippingThe way of Packing1.Wooden Drum+Wooden Pallet
2.Wooden Drum+Wooden BoxThe way of Transportation1.The goods will be sent to the customer by sea if the Quantity of the Order is big.
2.On the contrary, it will be sent to the customer by DHL Express if the Quantity is small.
Remarks: No matter which way of transportation it is, it is up to the customer's request.

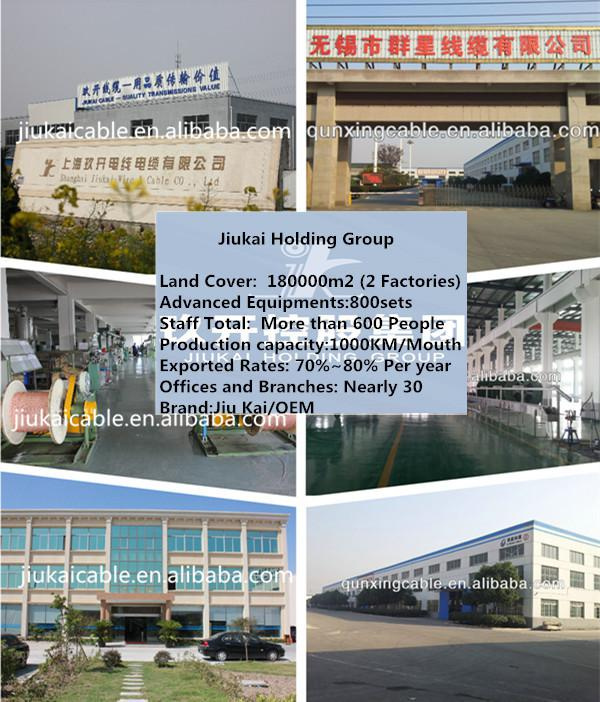

Group Profile JOCA holding group is an enterprise group,integrated research,manufacture&trade. The group has he group total capital RMB 250million&o occupied area 1800 thousand sqm including building area 1000 thousand sqm. The group has more than 800 sets nowadays domestic&foreign advanced cable equipment, yearly production capacity RMB 1.6 billion, 600 employees and nearly domestic& overseas representative offices or branch companies. Subsidiary company Shanghai Jiukai Wire&Cable Co.,Ltd, Jiukai Communication Technology(Shanghai)Co.,Ltd.&Wuxi City Qunxing Wire&Cable Co.,Ltd. are fully invested Wholly owned companies by JOCA group in cable, telecommunication&integrated general wiring industry.
