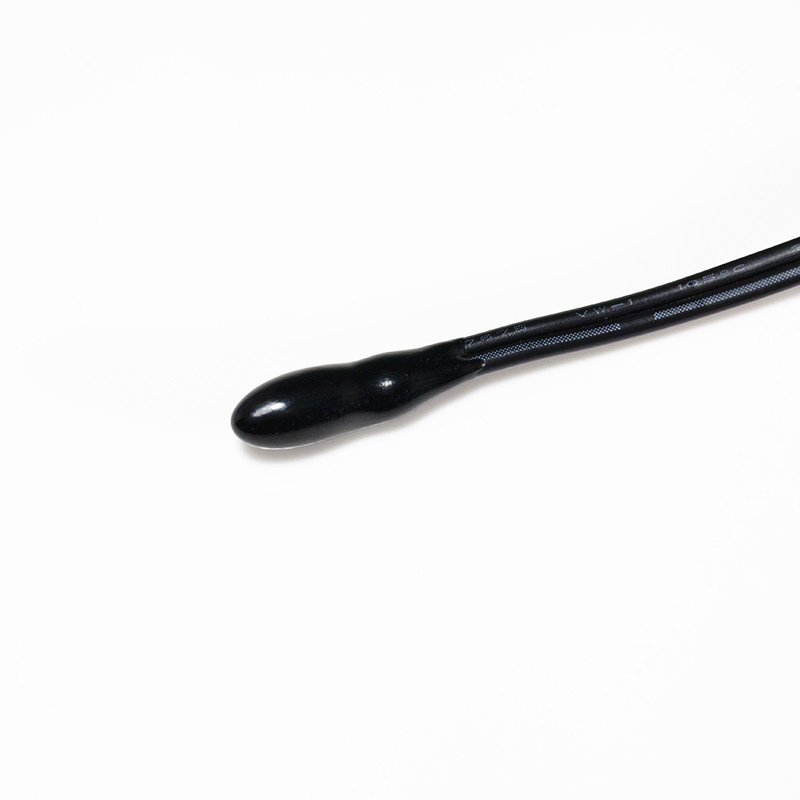

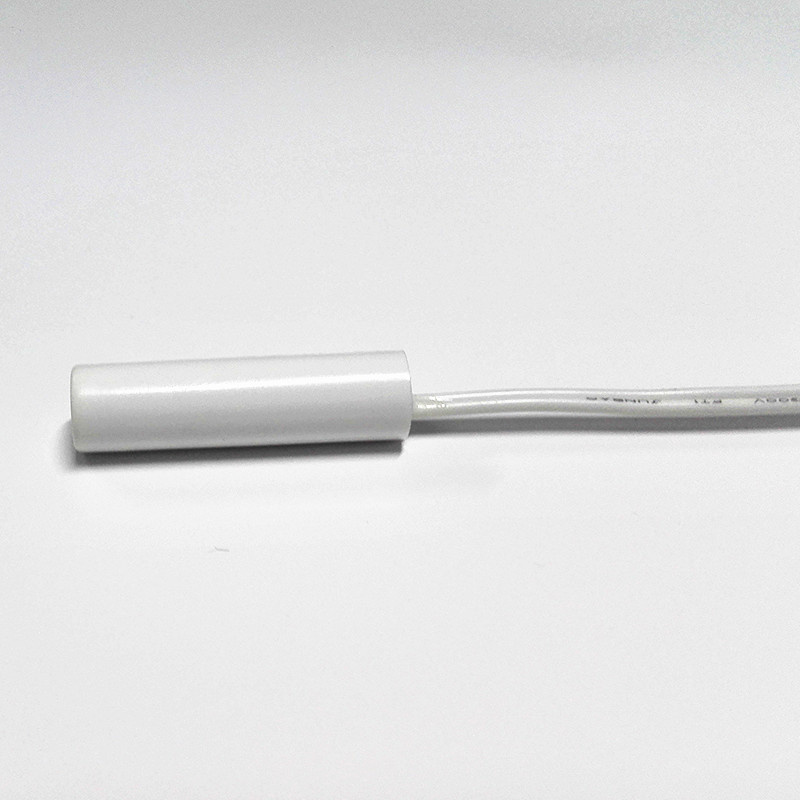

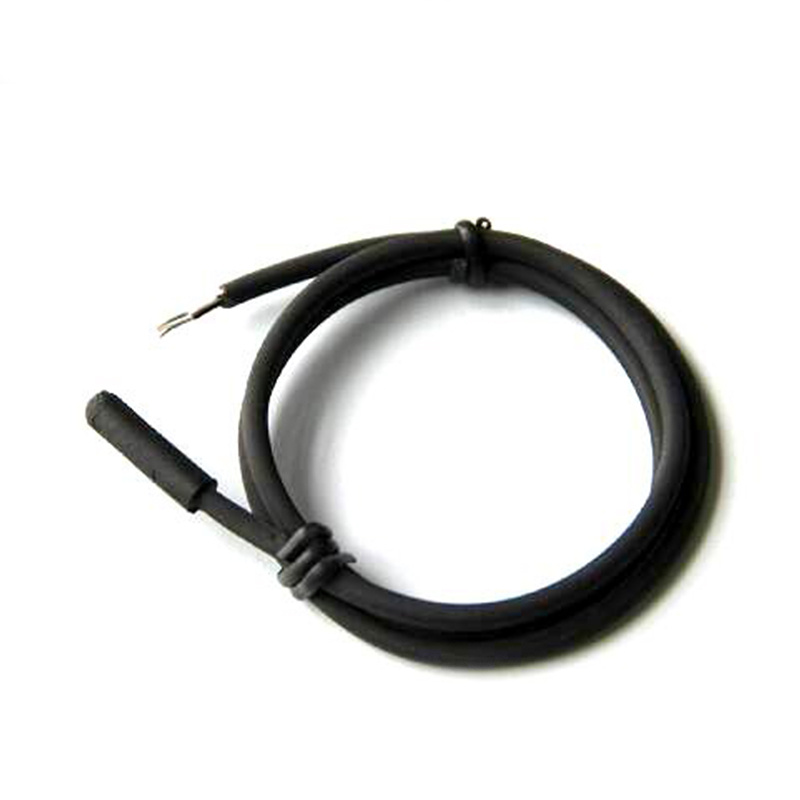

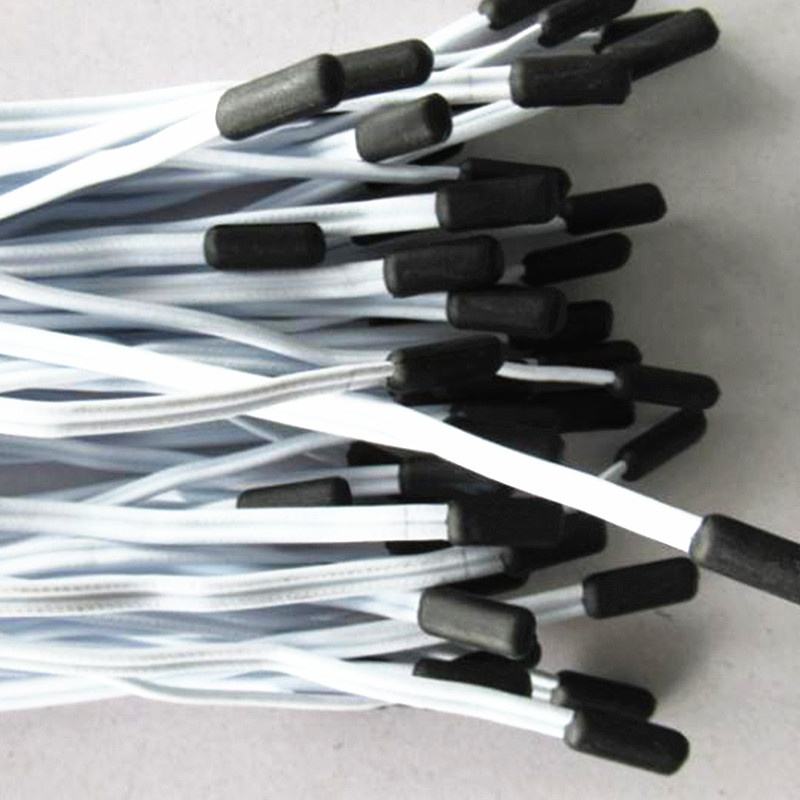

Flat Plastic Cap 8X30mm Ntc Thermistor Temperature Sensor Probe for Freezer

Name: Flat Plastic Cap 8X30mm Ntc Thermistor Temperature Sensor Probe for Freezer
Brand: all-electronics-online.com
SKU: 731989792
Availability: InStock
Rating: 5 (50 reviews)

Price:	US $ 0.25/Piece
Min Order:	1000/Piece
Pay Type:	L/C

Contact Supplier

Showroom Product Company Profile

Prod Model:	MFT

Product Description

MFT series temperature sensor using NTC thermistor as temperature sensing element. Products can be custom according to different temperature environment or application. With our mature craft, it can be made with a variety of specifications, customers can use directly without fabricating.
	Typical Applications	Features
	Ice maker machine Refrigerator Heat Pump Water heater Floor heating System General Application etc.	SUS,Cu, Plastic housings for food grade Suitable for general temperature work in

Technical Data

Item	Parameter
Sensing Element	NTC Thermistor various R and B value on request
Temperature range	-40°C to +105°C
Response time	Water (0.4m/s) T0.63 ≤ 30s
Dissipation Factor	≥ 2.5mW/°C
Long-term stability	Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)
Dielectric Strength	1500VAC
Insulation Resistance	≥100MΩ 500VDC

Focusens is a ISO certified and patented company specially works in developing, producing and service of temperature sensors and thermal components.

With more than 15 years field experience, we are committed to provide quality and prompt delivery of temperature and humidity components, as well as custom design service in temperature humidity field.

Our activities covers all over the world, including Asia, Europe, America, Latin America, Australia and South Africa.

Our customers covers Important players such as Schneider, Oster, Haier, Lada, JAC etc.

Our main products including various temperature sensors and temperature sensing element, various output type humidity transducer, and temp. Humidity monitor and control units.

We provide professional design, manufacturing, and assembly, meanwhile accept OEM with customers design.

Contact us now for details and improve projects efficiency with our expertise.
