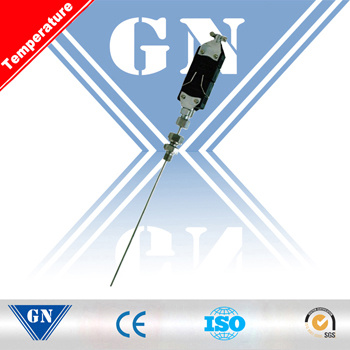

Flat Plug Type Armored Thermal Resistance (CX-WZ)

Prod Model:	CX-WZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-500c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex
Graduation:	PT100,Cu50,Cu100
Pakage:	Wooden Box
Thermalwell Material:	Ss304,316,Inconel601
Accuracy:	5%

Product Description

Flat Plug Type Armored Thermal Resistance (CX-WZ)

Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from -200 to 500°C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: -200-500C centigrade .
5.Terminal blocks: terminals box


Selection table:

Type	Graduation	Measuring Range	Accuracy Class	Mounting & Fixing Device
WZPK-173	Pt100	-200~500	A or B	Without Fixing Device
WZPK-174
WZPK-175
WZPK-176
WZPK-178
WZPK2-174
WZPK2-175
WZPK2-176
WZPK2-178
WZPK-273				Threaded connector with Fixed Fastener
WZPK-274
WZPK-275
WZPK-276
WZPK-278
WZPK2-274
WZPK2-275
WZPK2-276
WZPK2-278
WZPK-373				Threaded connector with Movable Fastener
WZPK-374
WZPK-375
WZPK-376
WZPK-378
WZPK2-374
WZPK2-375
WZPK2-376
WZPK2-378
WZPK-473				Flange with Fixed Fastener
WZPK-474
WZPK-475
WZPK-476
WZPK-478
WZPK2-474
WZPK2-475
WZPK2-476
WZPK2-478
WZPK-573				Flange with Movable Fastener
WZPK-574
WZPK-575
WZPK-576
WZPK-578
WZPK2-574
WZPK2-575
WZPK2-576
WZPK2-578

After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.
