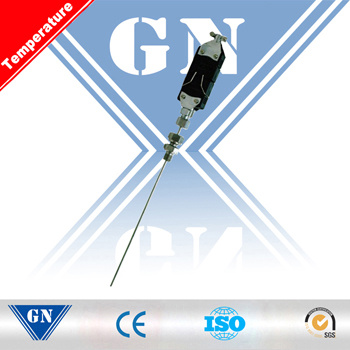

Flat Plug Type Armored Thermocouple (CX-WR)

Prod Model:	CX-WR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-1800c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex

Product Description

Cx-Wr Flat Plug Type Armored Thermocouple



Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from 0 to 1300°C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: 0-1800 centigrade .
5.Terminal blocks: terminals box

Selection table:

Description	Type	Graduation	Measuring Range ºC	Mounting & Fixing Device
RtRh10-Pt	WRPK-171 WRPK2-171	S	0-1300
				without fixing device
NiCrSi-NiSi	WRMK-171 WRMK2-171	N	0-1100
NiCr-NiSi	WRNK-171 WRNK2-171	K
NiCr-CuNi	WREK-171 WREK2-171	E	0-800
Cu-CuNi	WRCK-171 WRCK2-171	T	0-350
Fe-CuNi	WRFK-171 WRMK2-171	J	0-800
RtRh10-Pt	WRPK-271 WRPK2-271	S	0-1300
				threaded head with fixed fastener
NiCrSi-NiSi	WRMK-271 WRMK2-271	N	0-1100
NiCr-NiSi	WRNK-271 WRNK2-271	K
NiCr-CuNi	WREK-271 WREK2-271	E	0-800
Cu-CuNi	WRCK-271 WRCK2-271	T	0-350
Fe-CuNi	WRFK-271 WRFK2-271	J	0-800
RtRh10-Pt	WRPK-371 WRPK2-371	S	0-1300
				threaded head with movable fastener
NiCrSi-NiSi	WRMK-371 WRMK2-371	N	0-1100
NiCr-NiSi	WRNK-371 WRNK2-371	K
NiCr-CuNi	WREK-371 WREK2-371	E	0-800
Cu-CuNi	WRCK-371 WRCK2-371	T	0-350
Fe-CuNi	WRFK-371 WRFK2-371	J	0-800
RtRh10-Pt	WRPK-471 WRPK2-471	S	0-1300	flange with fixed fastener
NiCrSi-NiSi	WRMK-471 WRRK2-471	N	0-1100
NiCr-NiSi	WRNK-471 WRNK2-471	K
NiCr-CuNi	WREK-471 WREK2-471	E	0-800
Cu-CuNi	WRCK-471 WRCK2-171	T	0-350
Fe-CuNi	WRFK-471 WRFK2-471	J	0-800
RtRh10-Pt	WRPK-571 WRPK2-571	S	0-1300	flange with movable fastener
NiCrSi-NiSi	WRMK-571 WRMK2-571	N	0-1100
NiCr-NiSi	WRNK-571 WRNK2-571	K
NiCr-CuNi	WREK-571 WREK2-571	E	0-800
Cu-CuNi	WRCK-571 WRCK2-571	T	0-350
Fe-CuNi	WRFK-571 WRFK2-571	J	0-800

Diagram:
It can be suctomized according to your requirements.


After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
