Prod Model:	IP15

Product Description

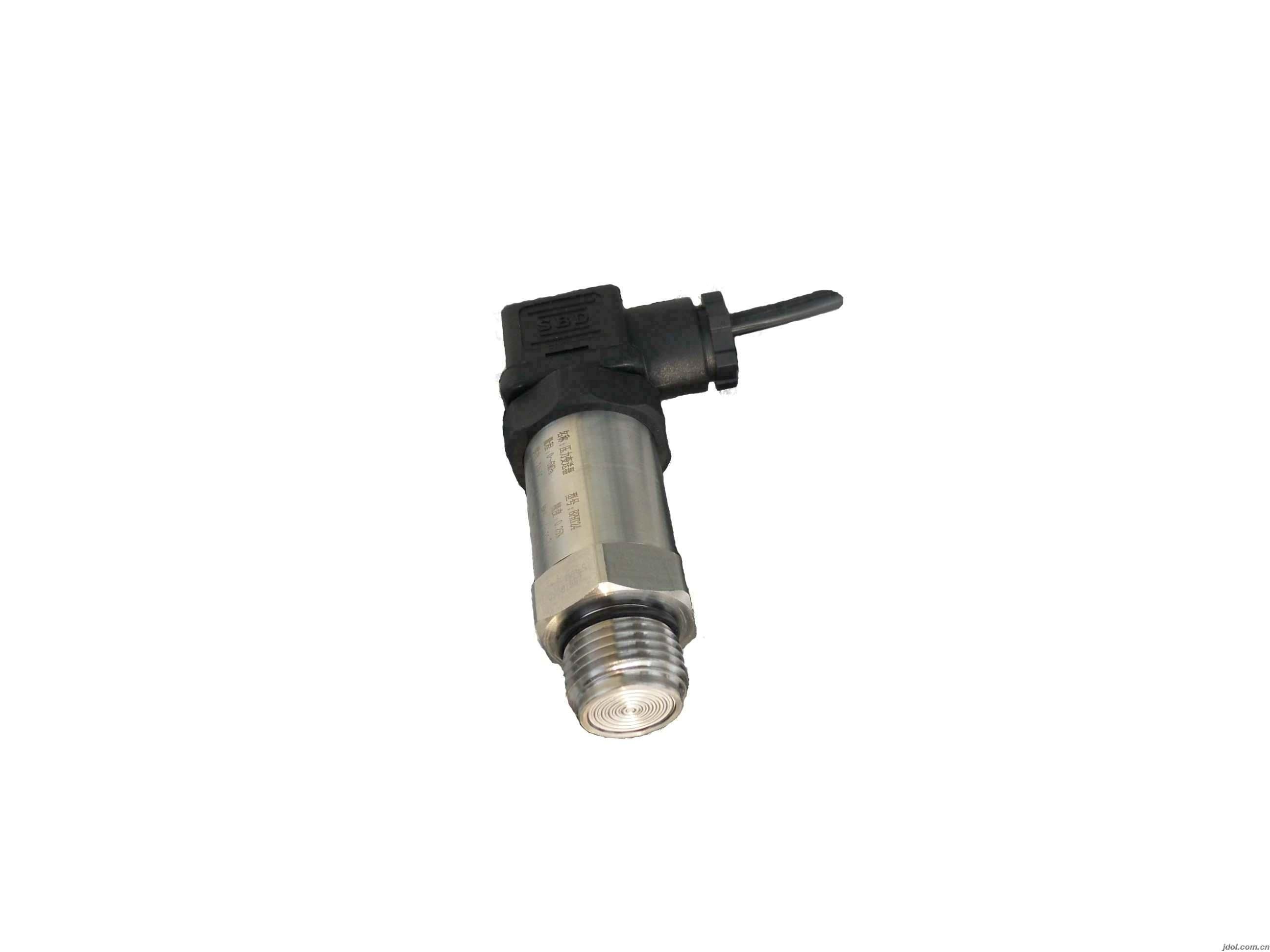

IP15 Flat Pressure Transducer

Outline:

The IP5 series flat-membrane pressure transducer/transmitter, which connector and housings are made of stainless steel, has strong corrosion resistance and long-term stability. Sensors in a wide temperature range has temperature compensation, which ensure the technical parameters in well. Variety of connector types and wiring modes can be the maximum to meet the customer requirement. Widely used in the field of viscous liquid test and control such as food, beverage, pharmaceutical and other health industries, and painting, dyestuff, coating, spraying equipment and other decoration industries, and washing, paper making, mud, asphalt and other industries.

Application:

Food, drink plant
Dirt water treatment plant
Shield machine, Mud pump
Coating ,spring equipment

Parameters:

Pressure range	-0.1 to 200MPa
Accuracy	±0.5%FS
Power supply	Transmitter: 9-30VDC, +5Vdc
Output	0.5-4.5V(+5VDC), 0-5V,4-20mA(9-30VDC)
loading Capacity(Transmitter)	Current output model ≤500Ω; Voltage output model ≥100kΩ
Compensation temperature	-10°C~85°C
Operation temperature	-20°C~125°C, ≤ 85%RH
Storage temperature	-40°C~125°C, ≤ 95%RH
Safe overpressure	200%
limit overpressure	500%
Temperature drift	±0.02%FS/°C
Long-term stability	±0.2%FS/year
Housing	316L/304 Stainless steel
