Flat TPS 3c /2c+E Cables to Australia Standard AS/NZS 5000.2

Name: Flat TPS 3c /2c+E Cables to Australia Standard AS/NZS 5000.2
Brand: all-electronics-online.com
SKU: 790271185
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	US $ 0.16-6.6/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	3c /2C+E
2X1.5+E:	12.1 Ohm/Km
2X2.5+E:	7.41 Ohm/Km
2X4+E:	Approx. Overall Diameter 14.0X6.5mm
Type:	Insulated
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Conductor Type:	Solid or Stranded
Range Of Application:	Electrical Cable
Brand:	Jytop

Product Description

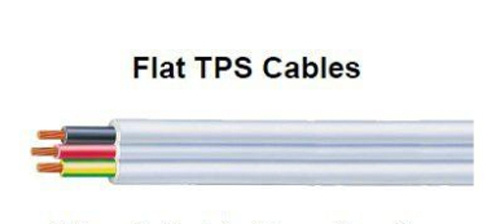

Flat TPS 3C /2C+E cables to Australia Standard AS/NZS 5000.2

Production Description
Appilcation:TPS cable are suited for cabling from the Fire Alarm, OWS and EWIS panels to detectors, speakers, horns, strobes, field modules, etc. TPS cables are PVC insulated and have an "Easy Tear" outer sheath making these cables easy to strip and terminate.

Construction
1. Conductor: 100% bare copper
2. Insulation: V-90 PVC, BLACK, RED, GREEN/YELLOW
3. Sheath: 3V-90 PVC, WHITE or As per customer's requirement.

Technical Specification
1.Voltage: 450/750V
2.Working temperature: 90 celsius degree
Product Standard: Australia Standard AS/NZS 5000.2/ IEC60227
Remarks: Special requirement is available, like anti-oil, anti-UV, flame-resistant; We have achieved the SAA certificate,the cable is in super quality.

Specification for the TPS Cable
Parameters for Flat TPS Cable.

Phase and neutral cores			Earth core		Oversheath
Conductor area	Insulation thickness	Min. insulation thickness	Conductor area	Min. insulation thickness	Multicore flat		Single core
Conductor area	Insulation thickness	Min. insulation thickness	Conductor area	Min. insulation thickness	Nominal thickness	Min. thickness	Nominal thickness	Min. thickness
mm2	mm	mm	mm2	mm	mm	mm	mm	mm
1.0	0.6	0.44	1.0	0.44	0.9	0.67	0.8	0.58
1.5	0.6	0.44	1.5	0.44	0.9	0.67	0.8	0.58
2.5	0.7	0.53	2.5	0.53	1.0	0.75	0.8	0.58
4	0.8	0.62	2.5	0.53	1.1	0.84	0.9	0.67
6	0.8	0.62	2.5	0.53	1.1	0.84	0.9	0.67
10	1.0	0.80	4	0.62	1.2	0.92	0.9	0.67
16	1.0	0.80	6	0.62	1.3	1.01	1.0	0.75

Nominal Cross Sectional Area	Main Conductor Type	Normal Thickness of Insulation	Normal Thickness of Jacket	Earth Conductor Area	Over Diameter of Cable	Type
(mm² )		(mm)	(mm)	(mm2 )	(mm)
1	solid	0.6	0.9	1	8.9*4.2	2C+E
1.5	Strand	0.6	0.9	1.5	9.9*4.5	2C+E
2.5	Strand	0.7	1	2.5	11.8*5.4	2C+E
2.5	Strand	0.7	1	2.5	12.2*54	2C+E
4	Strand	0.8	1.1	2.5	13.9*6.3	2C+E
6	Strand	0.8	1.1	2.5	15*6.9	2C+E
1.5	Strand	0.6	0.9	1.5	12.6*4.5	3C+E
1	solid	0.6	0.9		6.5*4.2	2C
2.5	Strand	0.7	1		8.9*54	2C
4	Strand	0.8	1.1		10.5*6.3	2C
1	solid	0.6	0.8		4	Single core
4	Strand	0.8	0.9		6	Single core

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
