| Prod Model: |
TK510-EZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed Limiter Function: |
Yes |
| Working Voltage: |
+6.0 ~+45VDC/1.5A |
| Dimension (Main Unit): |
110*80*30 (mm) |
| GSM Frequency: |
850MHz/900MHz/1800MHz/1900MHz/2100MHz |
| GPS Chipset: |
U-Blox7 Chipset |
| GPS Sensibility: |
-162dBm |
| Working Temperature: |
-20 ~ 85 Celsius Degree |
| Humidity: |
0 ~ 95% |
| Interface: |
5 Inputs, 5 Outputs, 4 a/D Ports, Mic & Speaker Por |
| Anti Tamper Alarm: |
Yes |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
Tk510 GPS Tracker |
| Operating Principle: |
Fleet GPS Tracker |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Model: |
Tk510 GPS Tracker |
| Brand: |
Tk510 GPS Tracker |
| Chip: |
U-Blox7 Chipset |
Product Description

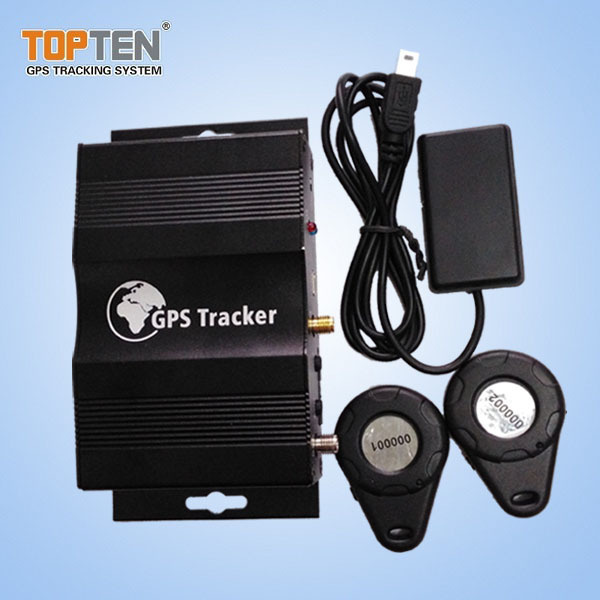

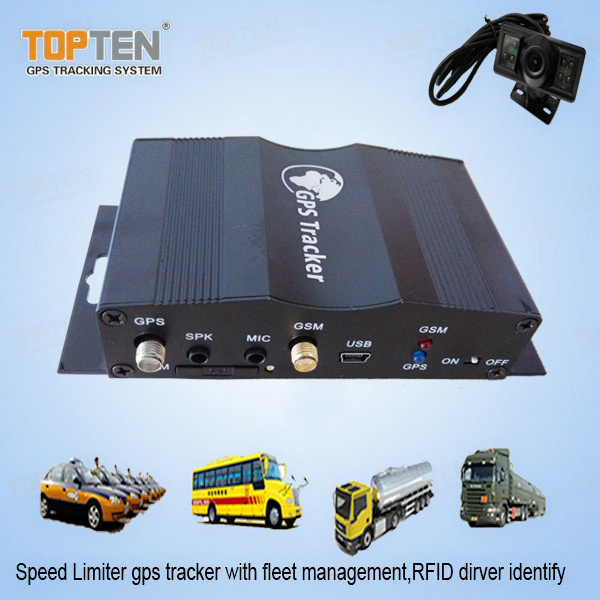

Fleet Management GPS Tracker with RFID and Camera TK510
TK510 GPS Vehicle tracker is the most advanced & cost-effective solution for vehicle security, real-time tracking & fleet management.
It has the following unique functions:
Camera for snapping & monitoring via MMS, email or platform;
RFID car alarm system with long-distance tag;
Crash alarm, fuel leaking alarm, speed limiter & fatigue driving alarm.
Function and features for TK510 Fleet Management GPS Tracker:
1. GPS tracker + RFID Car alarm with long-distance tag;
2. Active RFID Driver ID identification(optional)
3. Track on command or by time interval or by distance;
4. Arm/disarm by SMS, phone call;
5. Arm/disarm automatically by 2.4G RFID tag(optional);
6. Check the car's real physical address (such as city name, street name..);
7. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
8. Check the location directly by the Google map's URL;
9. Over-speed alert, Geo-fence alert, movement alarm;
10. Snap photo and send out via MMS &Email when there is SOS alarm, ACC On alarm or door open alarm, snap the photo via platform;
11. Speed limiter, when the speed is over limitation, the siren will sound to warn driver & relay will response to slow down the car automatically;
12. Crash alarm, when there is crash & it can detect it automatically;
13. Fatigue driving alarm, if continuous driving time is over the limitation, the siren will sound to warn the driver;
14. Check the coordinates via LBS, even there is no any GPS signal..
15. Support voice monitoring & 2-way talking;
16. Cut off engine to stop the car safely by SMS/GPRS;
17. Built-in shock sensor for power saving & triggering alarm
18. Built-in rechargeable backup battery; when the car battery is cut off or low enough, the system will send out power failure alert immediately.
19. SOS alarm & anti-tamper alarm, once the wiring harness is disconnected, it will trigger this alarm;
20. Support analog input for fuel monitoring or temperature monitoring, fuel loss alarm;
21. I/O: 5 digital inputs, 2 analog inputs & 5 digital outputs(2 impulse outputs);
22. Lock/unlock the car door remotely by SMS/platform or automatically according to the status of arm/disarm;
23. Wide working voltage range, from 6V-45VDC, suitable for car or big truck.
24. There are 3 types of working mode for power saving flexibly.
25. 8M-bit offline data logger, it can store up to 9,090 waypoints.
26. SMS content in multi-languages(English, Arabic, Spanish, Portuguese).
Specifications:
| Power Supply | +6.0 ~+45VDC/1.5A |
| Backup Battery | Rechargeable 3.7V 500mAh Li-ion battery |
| Dimension | 110mm x 80mm x 30mm |
| Weight | 180g |
| operating temprature | -20 ~ 85ºC |
| Humidity | 0 ~ 95% |
| Frequency | GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz |
| GPS chipset | U-blox7 chipset |
| GPs sensitivity | -162dBm |
| Channels | 56 channels |
| Position accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| LED | 2 LED lights to show GPS/GSM working status. One SOS button |
| Button | SOS |
| Interface | 5 inputs,5 outputs, 4 A/D ports, MIC & Speaker port, camera port, RS232
port, SD card slot |

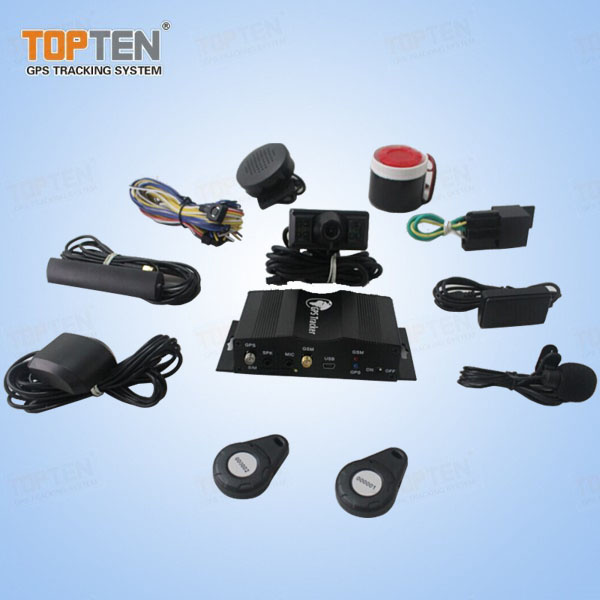

Standard Package is include: | Main unit | 1pc |
| GSM antenna | 1pc |
| GPS antenna | 1pc |
| SOS button | 1pc |
| Relay | 1pc |
| Wiring | 1set |
| Optional Accessories |
| Fuel Level Sensor |
| Temperature sensor + converter |
| RFID reader and RFID tag |
| Camera: |
