| Prod Model: |
Fleet management GPS Tracking system TK103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Weight: |
120g |
| Vehicle Immobilizer Systems: |
Remotely Cut off Oil and Power |
| Remote Controller: |
Optional |
| Shock Sensor: |
Yes |
| Warranty Time: |
12 Months |
| Address Location Report: |
by SMS GPRS |
| By Mobile Phone Tracking: |
SMS, Android/iPhone APP Tracking |
| Delivery Time: |
2-3 Business Days |
| GPRS Protocol Communication: |
TCP/UDP |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
103 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description
Fleet management GPS Tracking system with Free software Tracking Platform
TK103 GPS tracker 1. Work worldwide use (850/900/1800/1900MHz)
2. Can accurately position even if with weak signal--LBS location
3. High-sensitivity, latest technology and the most advanced GPS chip
4. Tracking on demands or SMS commands
5. Tracking by time intervals
7. Real time tracking via SMS or GPRS (TCP/UDP)
8. Show location directly on mobile phone with HTTP link
9. Five authorized phone numbers to protect tracker information and assets
10. Easy switch for track or Monitor
11. SOS button for emergency
Feature: 1)Support ACC, Door and Shock sensor alarm
3)Reset inside GSM and GPS module by SMS and Reset button
4)"Arm" and "Disarm" by sending SMS
5)Support Silent Mode by SMS commands
6)SMS tracking on cell phone with Google maps link
7)Get accurate address including street name by SMS
8)Real time tracking
9)Free PC based software for live tracking
10)Web based online tracking server
11)Five mobile numbers can be authorized to device
12)Support GPS+LBS Positioning ways
Basic Functions: 1. ACC alarm, Door alarm and Shock sensor alarm at ARM state
2. Set up ARM and DISARM by Cell phone or remote controller
3. Anti-thief for 24 hours a day to protect the vehicle well
4. Emergency for help, SOS panic alarm
5. The internal GSM and GPS module can be reset by press reset button or SMS
6. Free PC Platform use free Google map, it is not necessary to pay any map charge
7. If enters places (underground park) without GPS, it will report the last position tracked
8. Send alert of over range/speed to the authorization phone when it go out the restricted area/exceeds the restricted speed
9. Power or Oil cut off and resume/restore alarm by SMS GPRS
10. Show location directly on mobile phone with HTTP Google map link
11. Web based online tracking at our server
12. View target current location on map on the cell phone and PDA with maps links in the message from tracker
13.24 hours real-time SMS/GPRS tracking
14. Auto tracking continuously
15. Sending "address+password" to unit to get absolute street address
16. Support GPS+LBS double positioning ways
17. Set the local GPS time by SMS
18. Low battery alarm
19. Geo-fence
20. Movement alarm
21. Over speed alarm
Application Vehicle monitoring
Car positioning
Logistic monitoring
GPS103-A standard accessoryGPS Unit
10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Manual
packageOptional accessories: Shock sensor (optional for model A/B);
Alarm siren (optional for model A/B);
Remote controller (optional only for modelB)
specificationsContent | specifications |
DIM. | 83*54*26mm |
Weight | 120g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS Sensitivity | -159dBm |
GPS Accuracy | 5m |
GPS Start time | Cold status 45s Warm status 35s Hot status 1s |
Voltage of car power system | 12 V -24V |
Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +65°C |
Humidity | 5%--95% non-condensing |
certificate

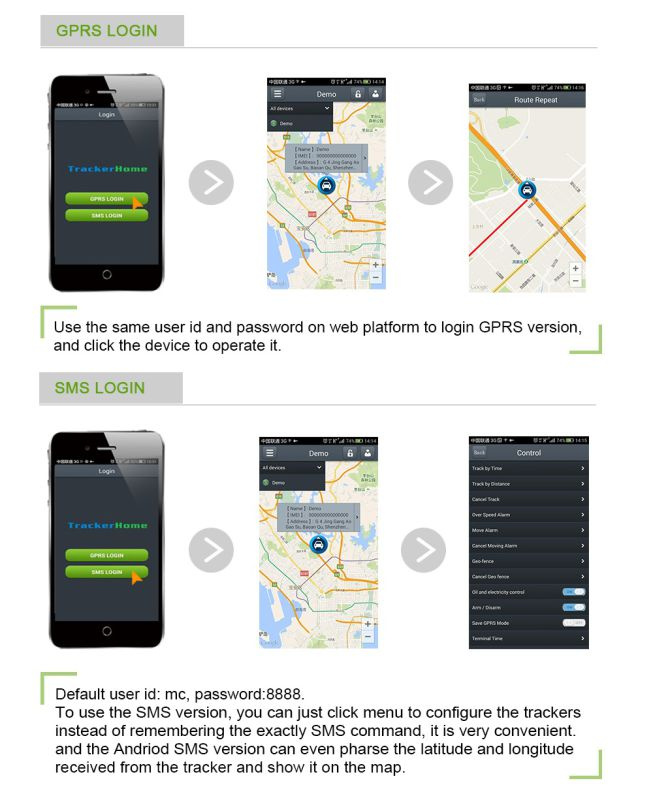

How to tracking ?
The GPS devices support phone tracking and 13 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP

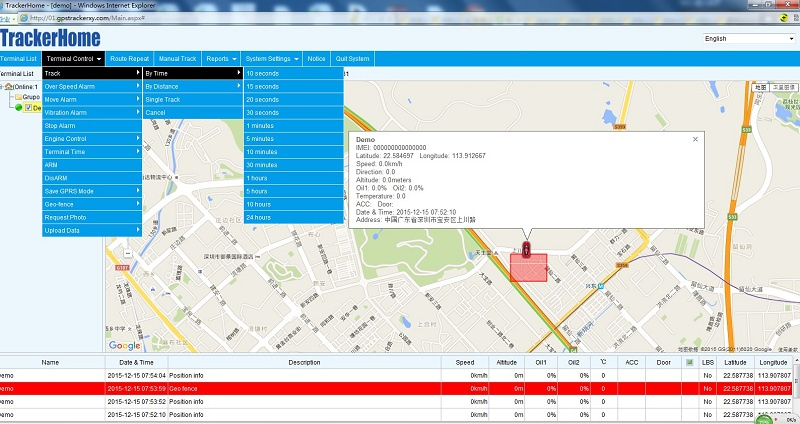

gprs web platform
