| Prod Model: |
OCT900-T |
| Frequency: |
GSM 850/900/1800/1900MHz |
| Channels: |
20 Channel All-in-View Tracking |
| GPS Chipset: |
Latest GPS Sirf-Star III Chipset |
| Power Supply: |
+6V - +35V / 1.5A |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Code Related Type |
| Port Number: |
Multichannel |
| Model: |
Integration Type |
| Screen Size: |
2.5" |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Brand: |
Oner |
| Certification: |
Ce, RoHS, FCC |
Product Description

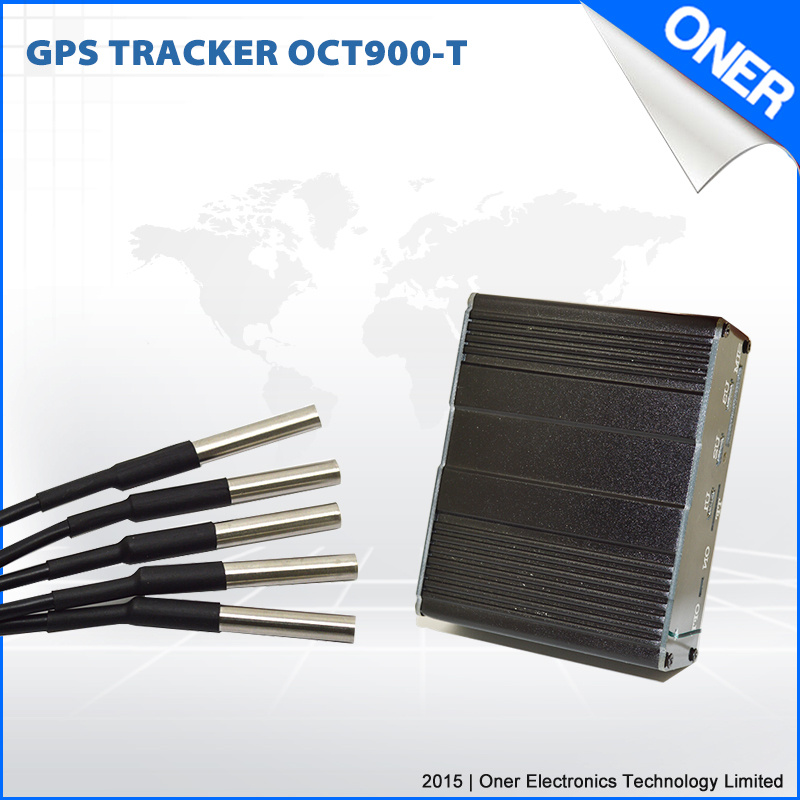

Fleet management GPS vehicle tracker with temperature monitor
Keep it fresh is the biggest challenge in transporting perishables for a fleet owner. Drivers cannot always be relied upon to the compartments. It is necessary to do the real time temperateure monitoring across the entre cold chain.
Oner temperature tracking device OCT900-T supports analog input with high precision (12 digits). It makes you ability to detect accuerate temperature. ( ± 0.1°C). You also can set alerts to notify you of any temp change by setting a range. It is helpful in preventing cold chain error.
Specification
Power supply +9V - +35V / 1.5A
Backup Battery 550mAh
Dimension 60mmx85mmx30mm
Weight 145g
Operating temperature -20° to 55° C
Humidity 5% to 95% Non-condensing
Frequency GSM850/900/1800/1900Mhz
GPS Chipset latest GPS SIRF-Star III chipset
GPS Sensitivity -158Db
GPS Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz chip rate
Channels 20 channel all-in-view tracking
Position Accuracy 10 m, 2D RMS
Velocity Accuracy 0.1 m/s
Time Accuracy 1 us synchronized to GPS time
Default datum WGS-84
Reacquisition 0.1 sec., average
Hot start <1 sec., average
Warm start <36 sec., average
Cold start 42 sec., average
Altitude Limit 18,000 m (60,000 feet) max.
Velocity Limit 515 m/second (1000 knots) max.
Interface 5 inputs, 5 outputs, 2 AD, 3 USB ports
LED 2 LED lights to show working status
Features
GPS/GPRS live tracking
Living location report
LBS Tracking
Track by time/ distance / degree interval
Google map link inquiry
Engine cut remotely
SOS emergency alert
Geo-fence alert
Movement alert
Speeding alert
External power cut alert
Shaking alert
GPS antenna abnormal alert
5 output/input user-defined function
Alert content user-defined function
Vehicle info setting and inquiry
Vehicle maintenance reminding
Speed limitation
Fuel monitoring (option)
Working time setting
Mileage calculation & setting
Miss call reminding for alarm
SIM balance inquiry
Data logging by time interval (option, SD card)
Data download with Udoc kit (option, Udoc kit)
Voice monitoring,3 listening No.s (option,MIC)
2 ways communication (Option, speaker)
3Admin No.s setting for management
Driver Identify (option)
Car control by RFID (Option)
Dual photograph mode ( MMS & online, option)
Take photo by time interval (option)
Take photo when alarm active (option)
SMS report
Temp monitoring with high precision ( ±0.1 ° C)
Adjustable temperature senso
Show the current temperature by digital di
BENEFITS
Access to objective temperature data in real time to help refute load rejection ;
In time notification for temperature change to help prevent cold chain error;
Reduce customers' claim;
Reduce insurance premiums through reduced claims;
Optimize your service and increase benefits;
FEATURES
Do temperature monitoring in real time with high precision ( ±0.1 ° C);
Support adjustable temperature sensor, easy to install;
Show current temperature by digital display, be able to take action in time once they find any change of temperature;
Set alerts to notify you of any temp change by setting a range;
Real time tracking, to know where the refrigated fleet are;
Multiple alerts for fleet safety and security;
Working time setting. It allows you to set schedule for your fleet. It is helpful in temperature monitoring.
2 ways communication. If you find any change of temperature in the control room. you can call the driver to check.
Fleet tracking with multiple applications ( online tracking software, webbased tracking APP, SMS tracking APPs, etc)
Complete car controls, make sure fleet owner have enough time to take action once temperature change or cars get troubles.
Provides an integrated graphical view and reports of your fleet temperatures.
