| Prod Model: |
GPS vehicle tracking system GPS103A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
60g (Small and Light) |
| Memory Slot: |
Yes |
| Warranty Time: |
12 Months |
| Fuel Monitor: |
Yes, Detect by Percentage |
| Delivery Time: |
2-3 Business Days |
| Packaging: |
50 Unit /Carton in Standard Color Box |
| Engine Shut Remotely: |
Yes, Relay to Stop Car |
| Car Security: |
Real Time Tracking, Fuel Monitor |
| GPS Accurate: |
5m |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Vehicle GPS103A |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description

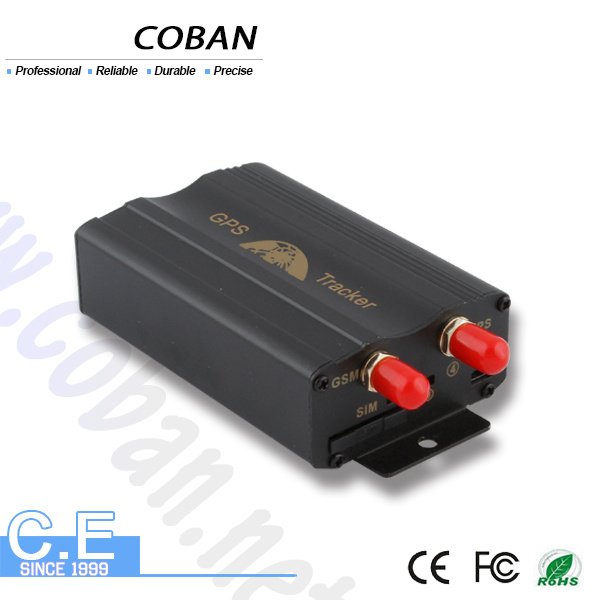

Fleet Tracking GPS vehicle tracking system with Relay to Stop Car (GPS103-A)Model: GPS tracker TK-103A,TK103B
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. SummaryThis tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. FeaturesSupport both GPS & LBS (Location based service).
Support GPRS on-line and GPRS re-connected automatically if GPRS drops
Support SMS / GPRS dual-mode switching
Support configuration by remote terminal.
Support for point-to-point, point to group, group-to-group monitoring.
Set multiple functions of anti-theft, positioning, monitoring surveillance, emergency alarms and management in its entirety.

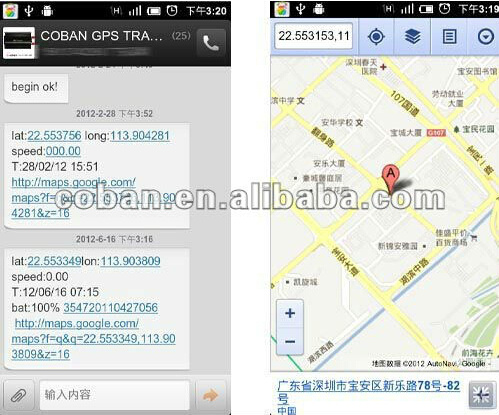

3. Main Function Description1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3.
Remote Engine-stop and Resume.4. Track by Distance Interval &time
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12.
Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
4. Specifications
Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

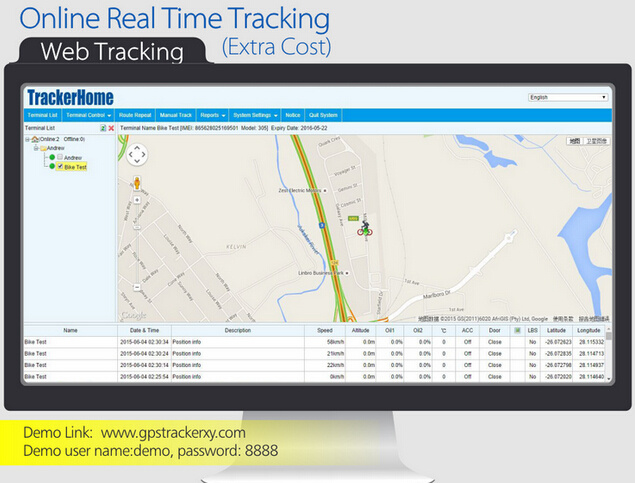

Real time track Web platform / Google map/ APP:Welcome to visit our server www.gpstrackerxy.com , please login in by IE browser,choose server 1,
User ID: demo
Password: 8888
one year FREE is provided to track in platform /APP
More details please send inquiry ,thanks
Lastest information is updated on 2016/7/13
