| Prod Model: |
GPS103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Oil Cut and Resume/Hardware Resetting |
| Weight: |
120g |
| Vehicle Tracking System: |
GSM/SMS GPRS |
| Tracking: |
by SMS or GPRS |
| Tracking Way: |
Google Map or Our Web Platform |
| Warranty Time: |
12 Months |
| Application: |
Vehicle Tracking and Other Moving Objects |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| GSM Network Frenquecy: |
850/900/1800/1900MHz |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
| Port Number: |
Multichannel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
GPS103b |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
Ce ISO |
Product Description

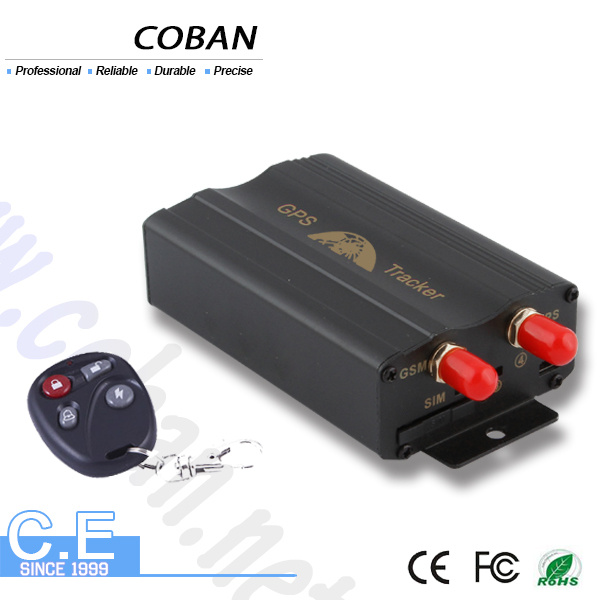

Fleet Vehicles GPS Tracking System Tk-103 with Remote Control, Oil Cut and Resume, SMS GPRS Real Time Google Maps

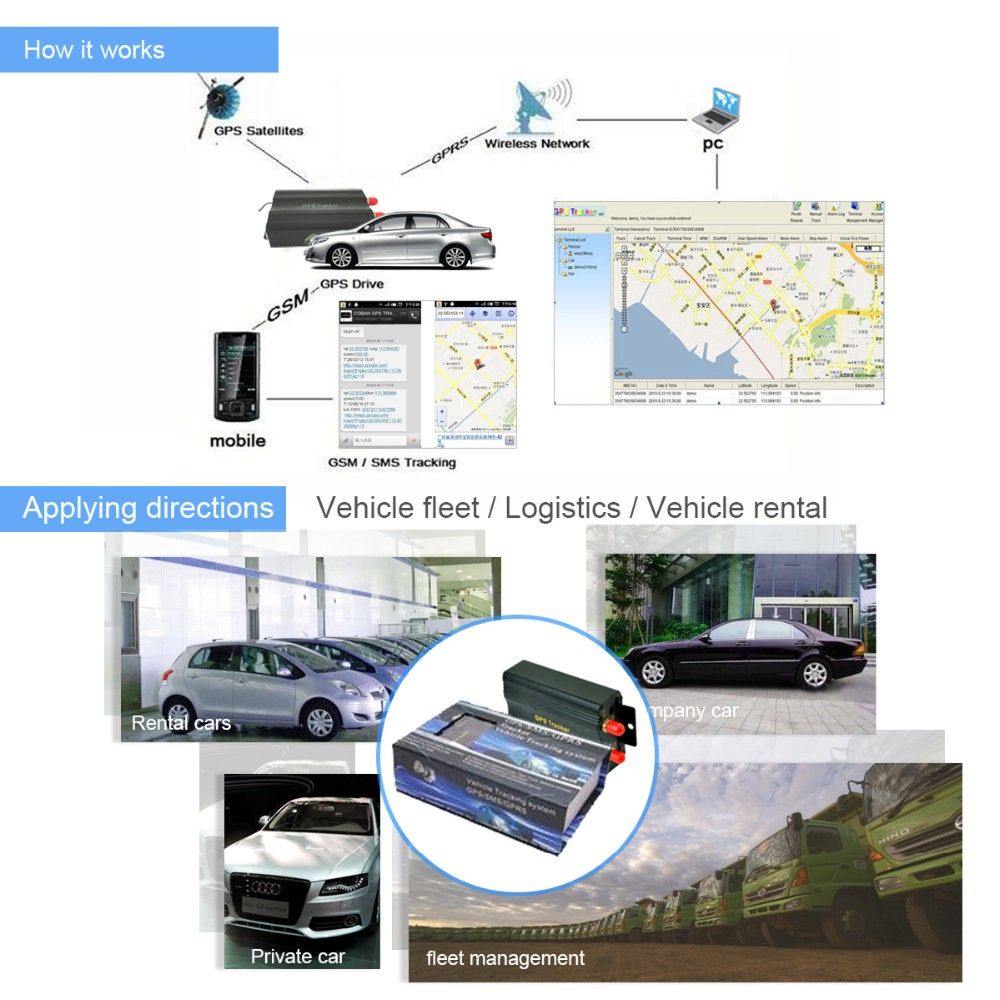

GPS103A/B Functions:
1.Multiple tracking ways:
1.1 Single location. By calling the tracker, it will reply you with latitude & longitude, speed, battery status, Google map link etc.
1.2 Auto tracking continuously.For example, Send SMS "fix030s***n+password" to the tracker device, it will reply the Geo-info continuously at 30 seconds intervals.
1.3 Get location in absolute street address. send address+password to device, it will reply SMS including real street/address name
1.4 GPS+LBS double way location.
2.Basic alarms:
2.1 SOS panic alarm
2.2 Low battery alarm
2.3 Geo-fence alarm
2.4 Movement alarm
2.5 Overspeed alarm
2.6 Shock sensor alarm
3.Main functions:
3.1 ACC alarm, Door alarm and Shock sensor alarm at ARM state
3.2 Set up ARM and DISARM by Cell phone or remote controller
3.3 Anti-thief for 24 hours a day to protect the vehicle well
3.4 The internal GSM and GPS module can be reset by press reset button or SMS
3.5 Free PC Platform use free Google map, it is not necessary to pay any map charge
3.6 If enters places (underground park) without GPS, it will report the last position tracked
3.7 Power or Oil cut off and resume/restore alarm by SMS GPRS
3.8 Show location directly on mobile phone with HTTP Google map link
3.9 Web based online tracking at our server
3.10 View map on cell phone, PDA, view target current location on map on the cell phone and PDA with maps links in the message from tracker
3.11 24 hours real-time SMS/GPRS tracking
3.12 Set the local GPS time by SMS
3.13 Check vehicle status by SMS
GPS103A/B Features:
1.1 Support ACC, Door and Shock sensor alarm
1.2 Reset inside GSM and GPS module by SMS and Reset button
1.3 "Arm" and "Disarm" by sending SMS
1.4 Support Silent Mode by SMS commands
1.5 SMS tracking on cell phone with Google maps link
1.6 Get accurate address including street name by SMS
1.7 Real time tracking
1.8 Free PC based software for live tracking
1.9 Web based online tracking server
1.10 Five mobile numbers can be authorized to device
1.11 Support GPS+LBS Positioning ways
GPS103A/B tracker Location tracking ways:
Single location;
Auto tracking;
Get absolute street address;
GPS+LBS double way location.
Basic alarms:
SOS panic alarm
Low battery alarm
Geo-fence alarm
Movement alarm
Overspeed alarm
Shock sensor alarm;
Power off alarm;
Acc Alarm;
Door open alarm;
Accident alarm(option);
Acc working alarm;
Package content :
GPS Tracker;
GPS Antenna(3 meters);
GSM Antenna(3 meters);
Microphone(1.5 meters);
10PIN Harness;
12V/40A to 24V/40A Relay;
Remote controller(for model B)
Software CD;
English User manual;
optional accessories:
Shock sensor;
Alarm Siren;
SD card 2GB(New);
Accident alarm(New);
USB cable(New);
Application
Vehicle fleet/logistics/Vehicle rental;
Cars,Trucks,Container trucks,Special vehicles,Motorbike etc.
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V
|
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
| | |
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
