| Prod Model: |
FU-16 |
| Standards: |
IEC/En60044-1 & IEC61010-1 & IEC61869-2 |
| Ratio: |
1000: 1 or 2000:1 , Customized |
| Nominal Input Current: |
20 a/30A/40A/50A/60A/80A/100A/150A/200A |
| Overload Withstand: |
1.2 Times Rated Current Continuously |
| Accuracy: |
0.2%, 0.5 %, 1% |
| System Voltage: |
720V(0.72kv) |
| Output Signal: |
10mA-200mA AC Optonal 333mv AC or 100mv-2V Optonal |
| Frequency Range: |
40 Hz-500 Hz |
| Output: |
Standard 2.5 Meter Cable |
| Max. Jaw Opening: |
16 mm |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

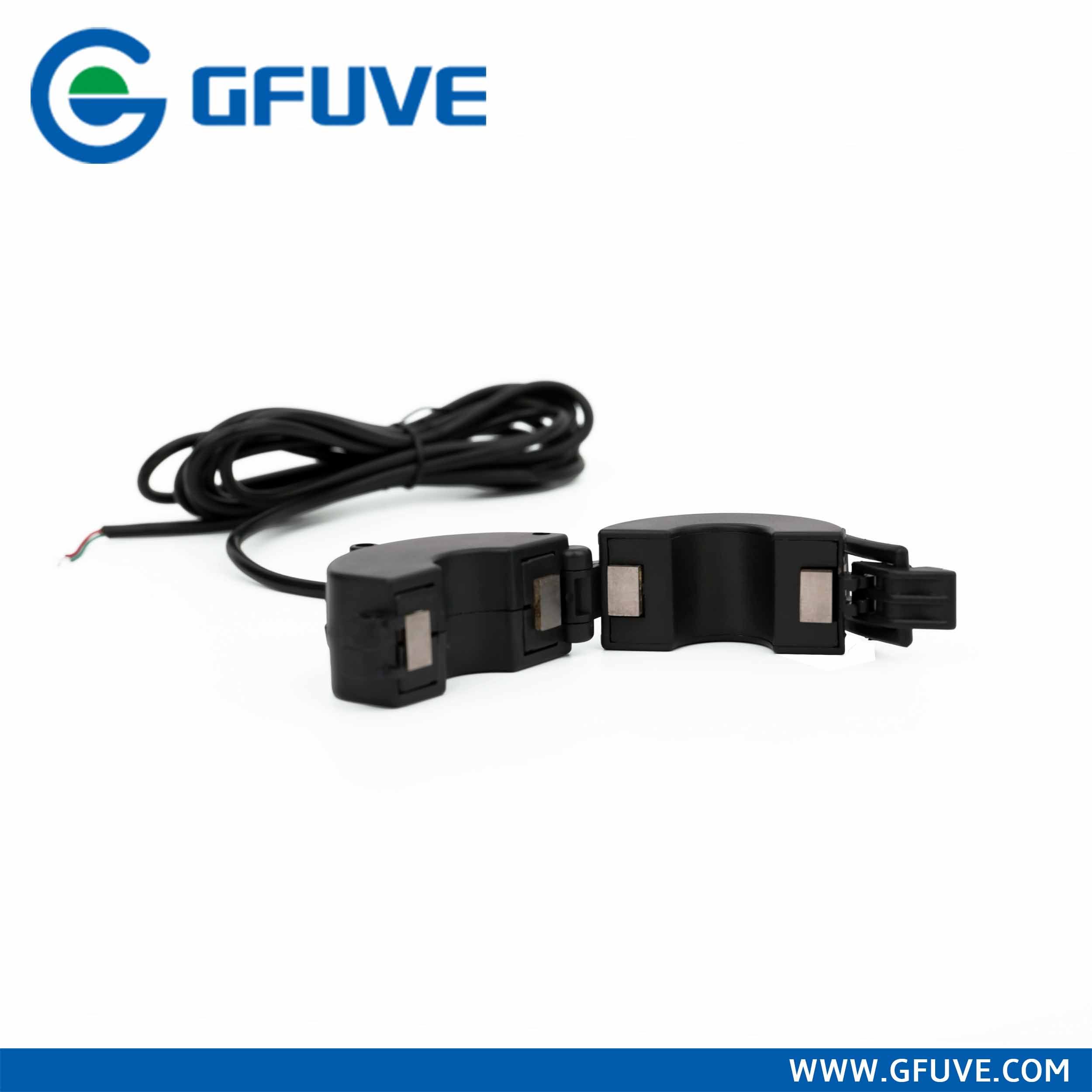

Fu-16 flexcore fcl 3000 5 r split core current transformerFU-16 series of split-core current transformer offers 333mV, 100mV-2V and 10mA-200mA at secondary from sensed primary current. Without using secondary CT inside of meter, users directly connect FU-16 series to meter for high accuracy metering application. It enables one meter to be adopted for various current rating by only changing primary CT so it makes compact meter design and reduces developing cost. Also, over-voltage protection circuit is included to offer safe, fast and cost effective installation.
| Features | Applications |
1. Most cost-effective
2. Faster installation
3. Safe and easy installations
4. High accuracy 0.5
5. Holding wire diameter: φ16mm
6. Measurement range of 1mA to 200A AC
7. Low phase shift for power measurement
8. Output model: Lead output(2.5m)
9. Isolated plastic case recognized according to UL94-V0
10. Small-size, compact size, light-weight
11. Over-Voltage protection circuit is installed.
12. UL / EN 61010 - 1 cerftfied
| 1. Power meter and harmonic meters
2. Energy meter (kWh meter)
3. Recorders, loggers, oscilloscopes
4. Power quality monitoring
5. Switchgear
6. Distributed measurement systems
7. General Sets
8. Control panels |
