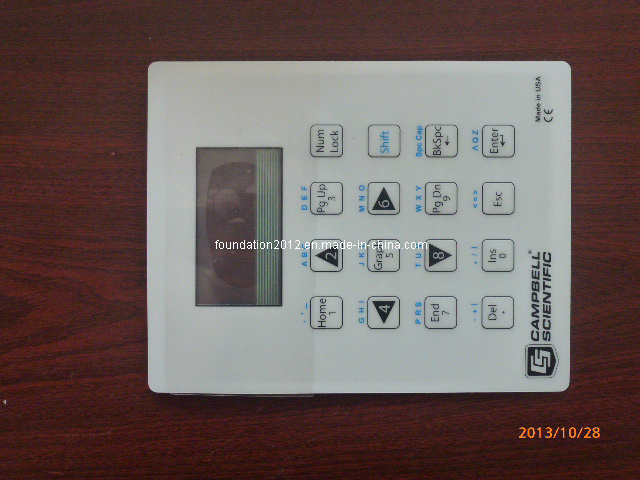

Flexible Board Polydome Keypad Membrane Switch

Name: Flexible Board Polydome Keypad Membrane Switch
Brand: all-electronics-online.com
SKU: 714794255
Availability: InStock
Rating: 4.3 (63 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC-MS-011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Exterior:	Good Looking
Material:	PET
Type:	Convex
Application:	Machine

Product Description

Flexible Board Polydome Keypad Membrane Switch

Description:
1) Membrane Switch with windows
2) Silicone keypad
3) Silk Screen Printing
4)perfect exterior
5) Over 1 million life cycles

Place of Origin: Dong Guan China
Brand Name: Foundation
Model Number: HC-MS-004
Certification: ISO9001: 2008, SGS, Rohs

Materials:
1 Material: PET /PC
2 Adhesive: 3M467 & 3M468 or as per request
3 High life time: >1million times
4 Pass: ISO9001: 2008 RoHS. SGS
5 High quality
4. Commercial terms:
MOQ: 150pcs
Payment Terms: T/T or L/C
Mold Charge: 100% in Advance
Sample Time: 9-10 days after drawing approval.
Lead Time for production: 15-22 days after sample approval

Applications:

Our membrane switches are widely used in:

Medical Equipment
Telecommunications apparatus
Telephone systems
Household appliances
Security systems
Industrial controls

Specifications:

Wire lead resistance: <1Ω /CMLife time: >1 Million times
Rated current: 25-100mA, 0~30V DCOperation Temperature: -40~70
Rated Voltage: <50V, DCOperation Humidity: At40, <98%RH
Insulation resistance: <100MΩ , 250V DCDome springback time: <5 msec
Switch travel: Flat Type 0.05-0.3mmBase Material voltage withstand: 1500 V DC
Tactile type: 0.3-1.5mmTail flexiblility: Any angle within 180 degree

Company Advantage:
1) Top managers are experienced in the same field for many years.
2) Professional staff and workers.
3) Strong R&D cabability
4) Quick Delivery
5) Competitive price
6) Two factories are available for large orders
7) Expert sales team and good customer service.

Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.

We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.

Our main product range are:

1)Membrane Switch and overlay

2)Flexible printing Circuit/ FPC/EL

3)Silicone products including silicone rubber key pad. And various silicone Rubber products.

4) Metal nameplate series

5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector

We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.

We sincerely hope can cooperate with you in the coming future!
