Flexible Building Wire with Copper Conductor

Name: Flexible Building Wire with Copper Conductor
Brand: all-electronics-online.com
SKU: 690162672
Availability: InStock
Rating: 4.9 (68 reviews)

Price:	US $ 0.2-0.6/Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	RV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electrical Wire 2.5sq.mm:	Max. DC Resistance @ 20 Degree 7.41 Ohm/Km
Electrical Wire 4sq.mm:	Max. DC Resistance @ 20 Degree 4.61 Ohm/Km
Supplier:	Factory
Certificate:	Ce, ISO
Conductor:	Stranded Copper
Size:	1.0-240mm2
Package:	100m/Roll
Payment:	T/T
Color:	as Request
MOQ:	2000m
Type:	Insulated
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Range Of Application:	Heating or Underground
Brand:	Jytop
Sheath Material:	No
Conductor Type:	Class 5, Flexible

Product Description

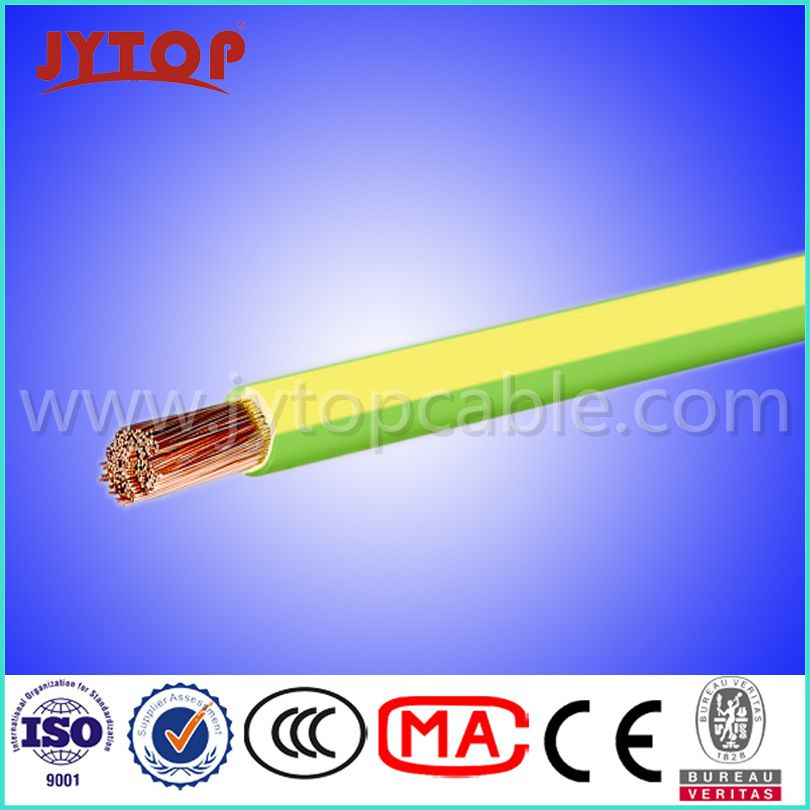

Flexible Building Wire with Copper Conductor
Construction

1. Flexible copper conductor
2. PVC insulation

Application
Switchbord cabling and installations in machines
Domestic and industrial installations

Size of conductor		Nominal thickness of insulation mm	Mean overall diameter Upper limit mm	Approx.net weight per km kg
Nominal cross-sectional area mm 2	Number and diameter of wires no./mm	Nominal thickness of insulation mm	Mean overall diameter Upper limit mm	Approx.net weight per km kg
1.0	32/0.20	0.6	3.0	16
1.5	30/0.25	0.7	3.5	21
2.5	50/0.25	0.8	4.2	33
4	56/0.30	0.8	4.8	50
6	84/0.30	0.8	6.3	70
10	80/0.40	1.0	7.6	120
16	126/0.40	1.0	8.8	175
25	196/0.40	1.2	11.0	290
35	276/0.40	1.2	12.5	400
50	396/0.40	1.4	14.5	565
70	360/0.50	1.4	17.0	770
95	475/0.50	1.6	19.0	1010
120	608/0.50	1.6	21.0	1260
150	756/0.50	1.8	23.5	1580
185	925/0.50	2.0	26.0	1900
240	1221/0.50	2.2	29.5	2500

JYTOP Cable is a professional MV XLPE Power Unarmoured Cable (Medium Voltage XLPE Insulated Unarmoured Power Cable factory) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!

If you want to know more about this Flexible Building Wire with Copper Conductor, please feel free to contact us for more information. Thank you!

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
