| Prod Model: |
flexible circuit board |
| Copper Thickness: |
1oz-4oz |
| Board Thickness: |
0.1mm~0.2mm |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Min. Line Width: |
0.15mm |
| Min. Line Spacing: |
0.2mm |
| Engineering Support: |
Support |
| PCB Testing: |
E-Testing |
| PCB/PCBA Engineering Run: |
Yes |
| Color Of Silk-Screen: |
White,Black,Silver |
| Coler Of Solder Mask: |
Green, Black, Blue, White, Y |
| Structure: |
Single-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Application: |
Toy |
| Conductive Adhesive: |
Anisotropic Conductive Adhesive |
Product Description

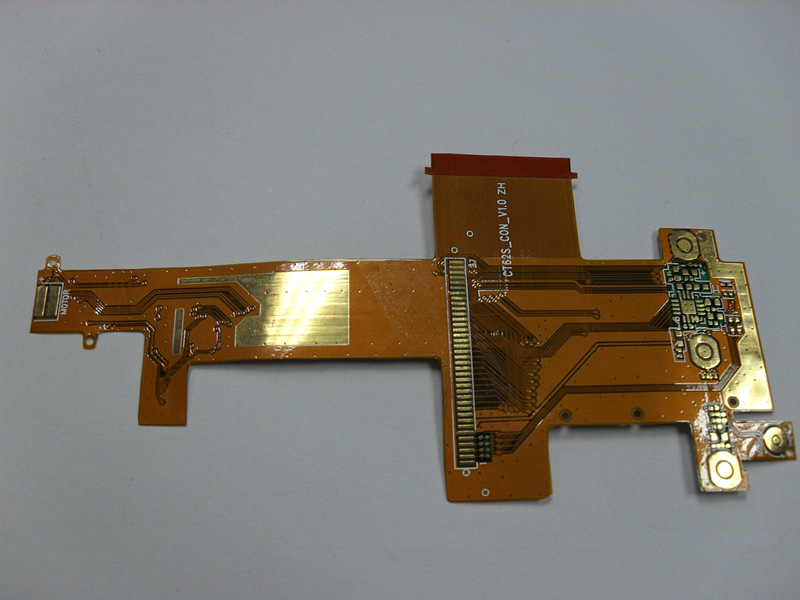

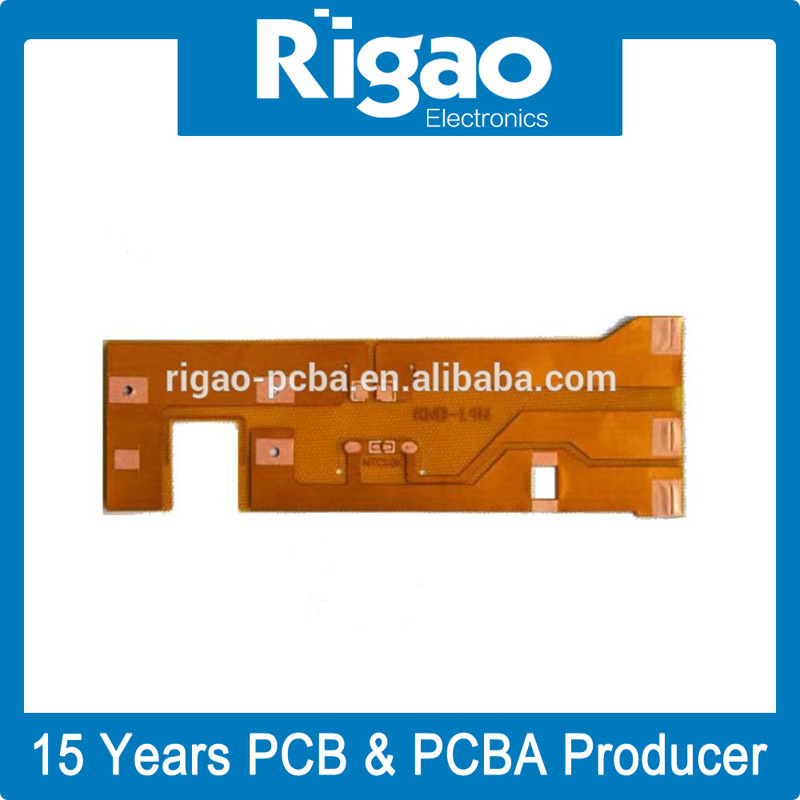

flexible circuit board design and manufacture
Rigao Electronics Co.,Ltd.is an experienced PCB and PCBA manufacturer
in Shenzhen, China.
Flexible circuit board service
Our products are made based on your design and requirement. The PCBA product we can
handle is from the Bare PC board, Full component procurement, BGA & Surface Mount PCBA
Assembly, Mixed Technology & Through-Hole PCB Assembly, Visual inspection / Functional test,
product assembly. All boards are electronically tested and shiped with a full set of QA report
document. Advantage speedy delivery, High reliable, Advanced equipment, Cheap price.
UL, RoHS, ISO-9000, TS16949.
We are specialized in manufacture flexible circuit board and FPC Assembly service.
FPC Species
1.Single sided FPCB
2.Double sided FPCB
3.Multilayers FPCB
4.Rigid-Flex FPCB
flexible circuit board Capability
1.Max Layer: 16 Layers;
2.Max Board size: 600x700mm;
3.Material:CEM-1,CEM-3 FR4 High TG;Polyimide,Polyester,Aluminium;
4.Minimum diameter: 0.1mm;
4.Drill position tolerance: ± 0.05mm;
5.Minimum width/Spacing: 1mil/1mil;
6.Width/spacing tolerance: ± 15%/± 15%;
7.Pad Non-wiring/wiring: ≥ 0.4mm+hole/≥ 0.3mm+hole;
8.Surface treatment:OSP,HAL,Immersion Gold,Gilding.
9.100% electrical and electricity performance test.
10.packing:Ziplock bag, low viscosity paper, tray, vacuum packing.
Function of flexible circuit board
1.Lead Line
2.Printed Circuit
3.Connector
4.Integration of Function
Application of flexible circuit board
Aerospace, military, mobile, laptop,Auto Electronics, computer peripherals,
digital cameras,GPS,MP4,Instrumentation equipment,Appliances,Power supply,etc.
By unremitting work and effort tothe marketing, products exports to American,
Canada, Europe counties,Africa and other Asia-pacific countries.
Advantage:
1. FPCB from factory directly.
2. FPCB which have the comprehensive quality control system.
3. FPCB with good price.
4. FPCB with quick turn delivery time .
5. FPCB with certification (ISO/UL/RoHS/SGS).
6. FPCB with many years experience in exporting service.
7. FPCB is no MOQ/MOV.
What products Rigao can supply?
Rigao supplies PCB, PCBA, FPC and assembly.
What kind of material Rigao can produce with?
Rigao offers PI, CEM1, CEM3, FR4, Aluminum substrate, etc.
What kind of surface finish Rigao can make?
Rigao can make OSP, HASL, lead/lead free, gold finishing.
If you are interested in our products, pls feel free to contact me. Thank you.
Websites: http://rigao-pcba.en.alibaba.com www.rigao-pcba.com
Tel: 86-755-29196695 Fax:86-755-29196655
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
