Flexible Coaxial Cable with PTFE Insulation
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
3000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
RG670-086/75 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insulator: |
PTFE |
| Outer Conductor: |
Tc and Tin |
| Application: |
Submarine Cable |
| Type: |
Cat 1 |
| Certification: |
VDE |
| Model: |
RG670-086/75 |
| Cover Material: |
Tinned Copper Braid and Tin Soaked |
| Wire Core Material: |
Sccs(Silver-Plated Copper Clad Steel Wire) |
| Brand: |
Yuanda |
| Conductor Material: |
Sccs(Silver-Plated Copper Clad Steel Wire) |
Product Description
Flexible coaxial cable with PTFE insulation
Type: RG670-086/75
Specification, please see the following tables.
Application:Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. The mechanical, thermal and electronic properties of coaxial cables mean that they can be used up to the Ghz levels, as per cable type.
Futher types and details or special orders are available on request.
If you are interested in our products, please contact with us!

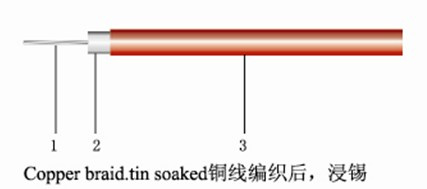

Also, you can tell us your requirements, and we can produce for you.| Structure | |
| 1. Inner Conductor | Material | SCCS ( Silverplated copper clad steel wire) |
| Construction | 0.29 |
| 2. Insulation | Material | PTFE |
| Diameter (mm) | 1.68 |
| 3. Outer Conductor | Braid Material | TC(Tinned copper)+Tin |
| Diameter (mm) | 2.1 |
Electrical Characteristics| Item | Spec.Value |
| Capacitance (PF/m) | 64 |
| Impedance (Ω) | 75 |
| Velocity of Propagation (%) | 70 |
| Bending radius (mm) | 61 |
| Time delay (ns) | 4.7 |
| Max.test voltage (kvrms) | 1.5 |
| Min. Screening effectiveness up to 18GHZ | 100 |
Mechanical Characteristics| Item | Spec.Value |
| Min. bending radius static (mm) | 6 |
| Min. bending radius repeated | 20 |
| Operating Temperature (ºC) | -55 to 125 |
Attenuation & Average Power@20ºC| Frequency | Item | Unit | Spec.Value |
| 0.5 | Attenuation | dB/m | 0.48 |
| Power(CW) | Watts | 173.3 |
| 1.0 | Attenuation | dB/m | 0.68 |
| Power(CW) | Watts | 121.4 |
| 5.0 | Attenuation | dB/m | 1.6 |
| Power(CW) | Watts | 52.2 |
| 10.0 | Attenuation | dB/m | 2.34 |
| Power(CW) | Watts | 35.9 |
| 20.0 | Attenuation | dB/m | 3.47 |
| Power(CW) | Watts | 24.4 |
Our main products are as follows:
Automotive cable that meet the national standard, Japanese standard, American standard, German standard, France and other countries' standards, etc.. Coaxial cables that are widely used in various fields of communication systems. Cables that suitable for motor, railway, urban rail and rolling stock. Electronic cable and sleeves that widely used in electronics, electrical appliances, household appliances instruments etc.. Cables used in special fields like photovoltaic, nuclear power, aviation and ships. Our products involved in cross-industry, many fields.
Our main customers are as follows:
Shanghai Sanzhi, Delphi, Lear-stec and Continental-corporation that matching Ashkenazi vehicle; THB Group and Ingersoll Rand eytc. ewire harness corporation that matching European and American vehicle; as well as Dell, Lenovo, Huawei and other matching communication cable customers and Panasonic, Siemens, Midea, Gree and other electronic cable customers.
Jiangyin Yuanda Electrical Material Co. Ltd. (Wuxi yuanda Electrical Materical Co. Ltd) is locked in Jiangyin, the most developed city in China, Jiangsu Province. Facing Taihu Lake in the south and bordering Changjiang River in the north, it is well located and easy of access as Huning and Xicheng Freeway Stretching over the district. It's about 100 km from Shanghai Pudong Airport and Nanjing Lukou Airport and it is near Wuxi and Changzhou Airport too. We believe that our unique advantages and convenient transportation could be your ideal business choice.
Our main products include:
1. Heat-resistant silicone rubber wires which are widely used in household appliances and electronic instruments such as UL3122, UL3135, UL3512 and VDE HO5S-K, VDE HO5SJ-K, CCC245IEC, H3Cable and teflon wires such as UL1330, UL1332, UL10362 and so on.
2. Steel industry heat-resistant cables applicable to aviation, navigation and such as YG, H05SS-F.
3. JG and JYJ cables applicable to electric machines metallurgy, engines, transformers and nuclear Powers.
4. Wires such as GXL, AEX and SGR used in automobiles.

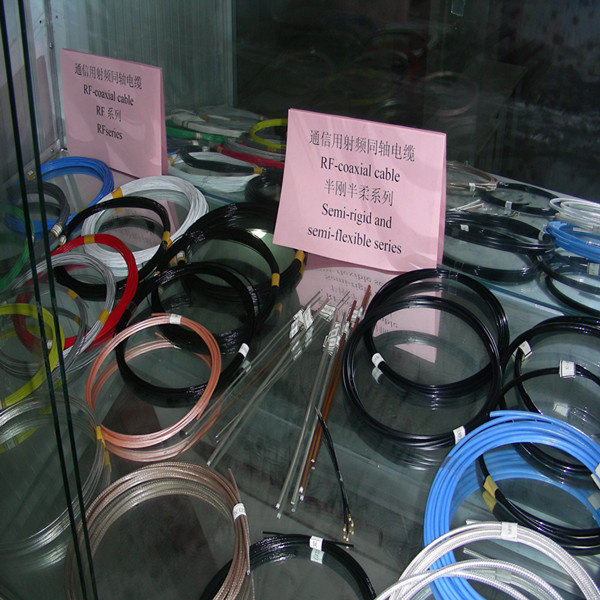

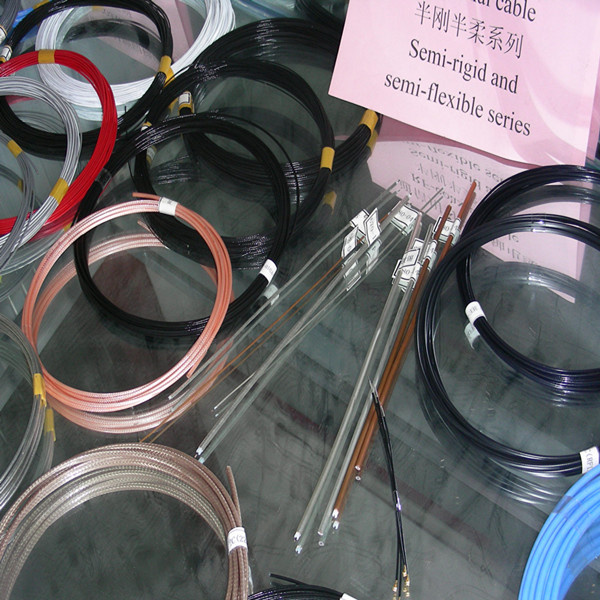

5. Coaxial cables such as RG and RF series used for communications in cell phones, computers 3G and military industry.

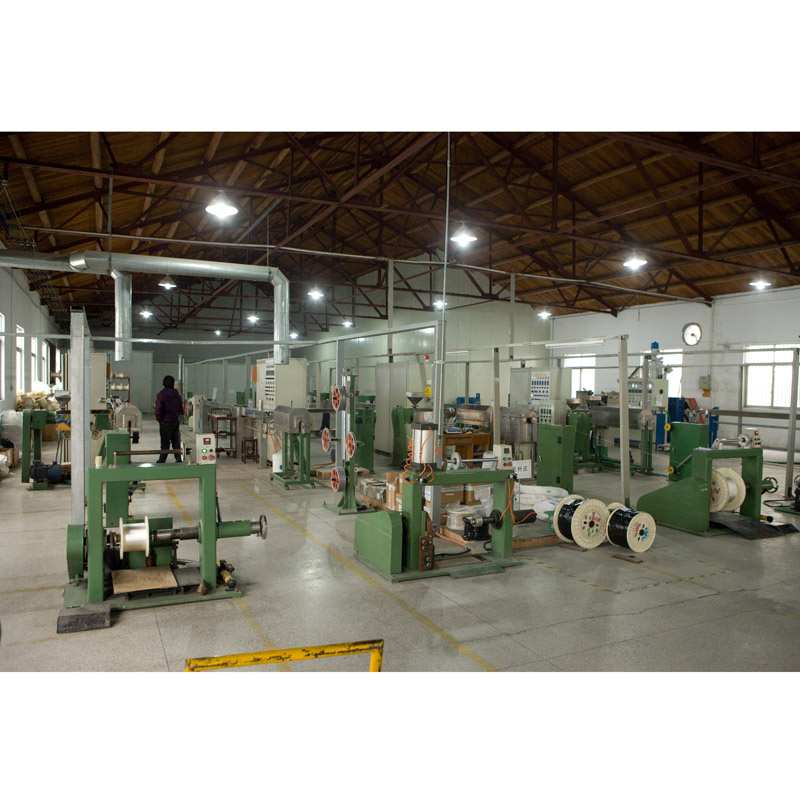

We have abundant technical strength, advanced equipments, functional testing facilities and good quality-ensuring systems and have acquired the certificates of ISO9001-2000 and ISO/TS16949: 2009 for Automotive wires and tubes. Our main products, silicone rubber insulated wires and cables Teflon sires, silicone glass fiber pipers, rubber-inside and fiber-outside pipes are certified by UL, VDE, CSA and CCC and all our products can meet the requirements of RoHS.
Our annual output of heat resistant sleeve is 120, 000Km, all kinds of high temperature cable is 8, 600, 000Km, RF coaxial cable is 150, 000Km, and we can process all kinds of nonstandard cable according to the requirement of clients. With the excellent products, punctual delivery, we'll be your ideal partner.
With high qualify products, reasonable price and perfect after-sales service, we believe that we can achieve win-win situation with you. Looking forward to your cooperation!
