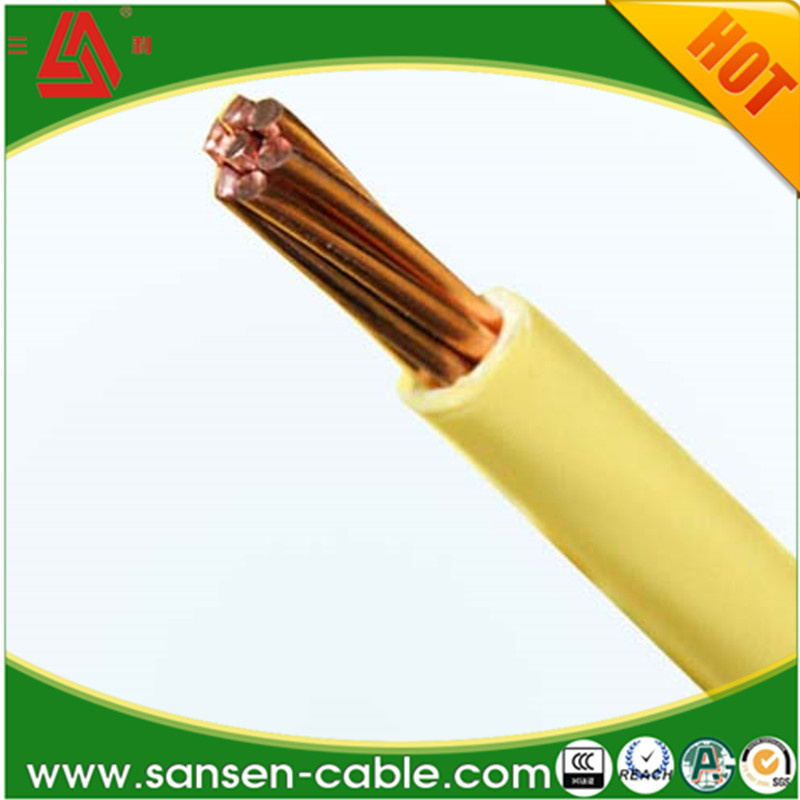

Flexible Copper Conductor H05V-R H05V-K H07V-K H07V-R H03VV-F Building Wire

Name: Flexible Copper Conductor H05V-R H05V-K H07V-K H07V-R H03VV-F Building Wire
Brand: all-electronics-online.com
SKU: 798579955
Availability: InStock
Rating: 4.5 (93 reviews)

Price:	US $ 0.01-0.1/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	H05V-R
Voltage:	300/300V 300/500V 450/750V
Colour:	Red/Black/Blue/Yellow/Green
Type:	Insulated
Application:	Construcation
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Conductor Type:	Stranded or Soild
Brand:	Sansen

Product Description

H05V-U Specification

300/500V,Copper Conductor PVC Insulated Wire
Nominal Cross Section	Conductor Construction		Insulation Thickness	Overall Diameter	Approx. Net Weight
mm2	No.	Diameter	mm	mm	kg/km
1 X 0.5	1	0.8	0.6	2.00	8.16
1 X 0.75	1	0.97	0.6	2.17	10.71
1 X 1.0	1	1.13	0.6	2.33	13.48
300/500V, Copper Conductor Heat Resistant PVC Insulated Connecting Wire at 90ºC
Nominal Cross Section	Conductor Construction		Insulation Thickness	Overall Diameter	Approx. Net Weight
mm2	No.	Diameter	mm	mm	kg/km
1 X 0.5	1	0.8	0.6	2.00	8.16
1 X 0.75	1	0.97	0.6	2.17	10.71
1 X 1.0	1	1.13	0.6	2.33	13.48
1 X 1.5	1	1.38	0.7	2.78	19.70
1 X 2.5	1	1.78	0.8	3.38	31.20

Nominal cross section (mm2)	Number/diameter of core(mm)	Insulation thickness (mm)	Maximum outer diameter(mm)	Reference Weight(km/kg)	Conductor resistance at 20°C≤(Ω/km)
0.5	1/0.80	0.6	2.4	8.44	36
0.75	1/0.97	0.6	2.6	11.02	24.5
1	1/1.13	0.6	2.8	13.85	18.1
1.5	1/1.38	0.7	3.3	20.2	12.1
1.5	7/0.52	0.7	3.4	21.62	12.1
2.5	1/1.78	0.8	3.9	31.9	7.41
2.5	7/0.68	0.8	4.2	34.89	7.41
4	1/2.25	0.8	4.4	46.95	4.61
4	7/0.85	0.8	4.8	50.2	4.61
6	1/2.76	0.8	4.9	66.8	3.08
6	7/1.04	0.8	5.4	71.04	3.08
10	1/3.58	1	6.4	111.62	1.83
10	7/1.35	1	6.8	118.61	1.83
16	7/1.70	1	8	178.68	1.15
25	7/2.14	1.2	9.8	280.51	0.727
35	7/2.52	1.2	11	378.97	0.524
50	19/1.78	1.4	13	508.07	0.387
70	19/2.14	1.4	15	715.76	0.268
95	19/2.52	1.6	17	989.79	0.193
120	37/2.03	1.6	19	1228.03	0.153
150	37/2.25	1.8	21	1509.8	0.124
185	37/2.52	2	23.5	1892.29	0.0991
240	61/2.25	2.2	26.5	2489.14	0.0754
300	61/2.52	2.4	29.5	3114.25	0.0601
400	61/2.85	2.6	33.5	3967.07	0.047

FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.

Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.

We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.

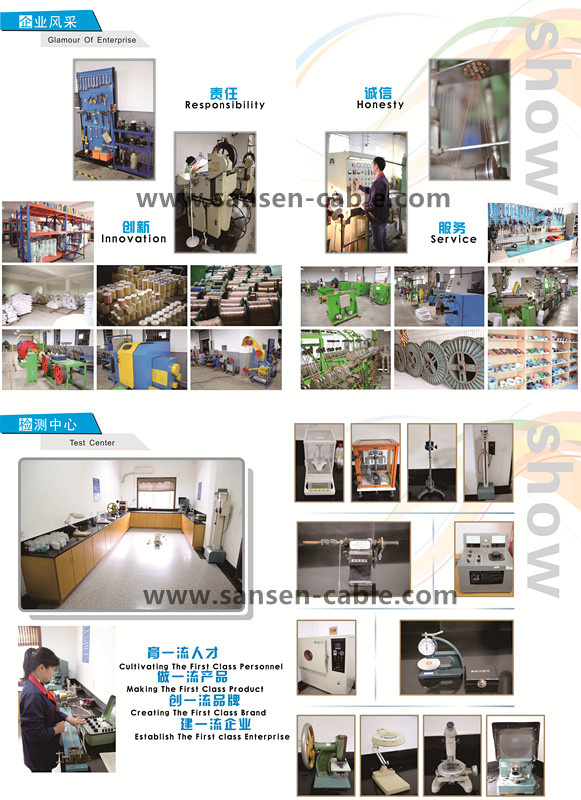

Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.

At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.

We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
