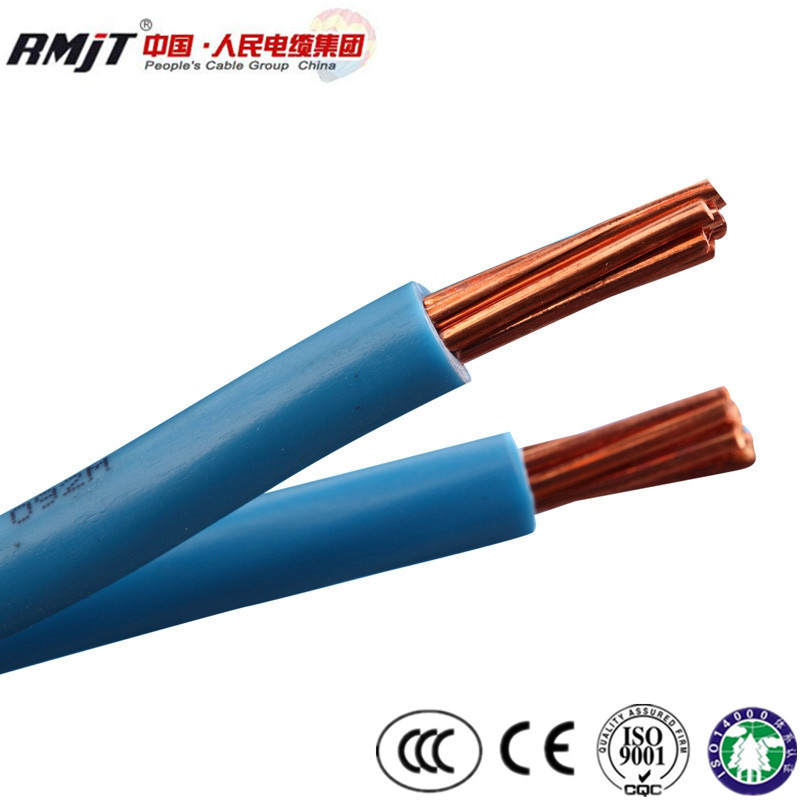

Flexible Copper Conductor H05V-V H05V-R H05V-K Building Electrical Wire with PVC Sheathed

Name: Flexible Copper Conductor H05V-V H05V-R H05V-K Building Electrical Wire with PVC Sheathed
Brand: all-electronics-online.com
SKU: 794765715
Availability: InStock
Rating: 4.5 (125 reviews)

Price:	US $ 50-62/Roll
Min Order:	100/Roll
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Electric Wire
Rated Voltage:	300/500V,450/750V
Standard:	IEC, JIS, BS, Asin, DIN and So on
Color:	Required
Type:	Insulated
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Conductor Type:	Solid or Stranded
Application:	Building or Constrction
Range Of Application:	Home or Building
Brand:	Rmjt

Product Description

Electric wire: Copper or aluminum conductor, pvc insulated wire
Electric wire: THW wire, the cable, H07V-U, H05V-U,H07V-R
The conductor type of electric wire: Solid core and stranded core
Cores of electric wire: single core, two cores, three cores

Section area of electric wire
300/500v:0.5mm2,0.75mm2m1.0mm2
450/750v 1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,35mm2,50mm2,70mm2,95mm2,
120mm2,150mm2,185mm2,240mm2,300mm2m400mm2
300/500v; 2x0.75, 2x1.0, 2x1.5, 2x2.5, 2x4, 5x6, 2x10, 3x0.75, 3x1, 3x1.5, 3x2.5, 3x4, 3x6, 3x10mm2

Application
PVC Wire is used for lighting, electronic equipment, instument and communication equipment with rated voltage 450/750V or less

Specification
1. The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.
2. The long term working temperature should lower then 70oC. The working temperature of BV-90 should lower then 90oC. And the laying temperature should higher then 0oC.
3. The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.

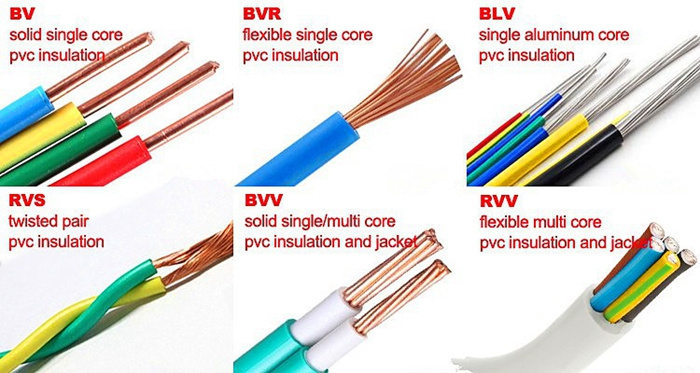

Type & Name:
BV   copper core PVC insulated power wire
BVR copper core PVC insulated flexible power wire
BLV   aluminum core PVC insulated power wire
BVVB copper core PVC insulated PVC sheathed parallel power wire
BLVVB   aluminum core PVC insulated , PVC sheathed wire
RVS copper core PVC insulated twisted fexible wire
RVVB copper core PVC insulated sheath flat flexible wire

Technical Parameters:

AWG/MCM	mm2	Conductor			Insulation						Shealth			Total Weight
		Single Wire		OD.	PVC						Nylon
		No.	Dia.		thick			min	min	OD.	Thick mils	mm	OD.
			mm	mm	mil	mm	mm	mil	mm	mm	mil	mm	mm	kg/km
16	1.31	1	1.29	1.29	15	0.38	0.51	14	0.36	2.05	4	0.1	2.25	16.73
14	2.08	1	1.626	1.626	15	0.38	0.51	14	0.36	2.386	4	0.1	2.586	24.53
12	3.29	1	2.048	2.048	15	0.38	0.51	14	0.36	2.808	4	0.1	3.008	36.61
10	5.26	1	2.589	2.589	20	0.51	0.64	19	0.48	3.609	4	0.1	3.809	58
16	1.67	7	0.551	1.653	15	0.38	0.51	14	0.36	2.413	4	0.1	2.613	21.5
14	2.08	7	0.615	1.845	15	0.38	0.51	14	0.36	2.605	4	0.1	2.805	25.84
12	3.30	7	0.775	2.325	15	0.38	0.51	14	0.36	3.085	4	0.1	3.285	38.51
10	5.26	7	0.978	2.934	20	0.51	0.64	19	0.48	3.954	4	0.1	4.154	60.82
9	6.63	7	1.098	3.294	20	0.51	0.64	19	0.48	4.314	5	0.13	4.574	75.34
8	8.32	7	1.23	3.69	30	0.76	0.9	28	0.71	5.21	5	0.13	5.47	98.69
7	10.47	7	1.38	4.14	30	0.76	0.9	28	0.71	5.66	5	0.13	5.92	120.76
6	13.21	7	1.55	4.65	30	0.76	0.9	28	0.71	6.17	5	0.13	6.43	148.58
5	16.65	7	1.74	5.22	30	0.76	0.9	28	0.71	6.74	6	0.15	7.04	183.78
4	21.12	7	1.96	5.88	40	1.02	1.1	35	0.89	7.92	6	0.15	8.22	235.76
2	33.54	7	2.47	7.41	40	1.02	1.1	35	0.89	9.45	6	0.15	9.75	359.83
16	1.23	19	0.287	1.435	15	0.38	0.51	14	0.36	2.195	4	0.1	2.395	16.72
14	2.04	19	0.37	1.85	15	0.38	0.51	14	0.36	2.61	4	0.1	2.81	25.35
12	3.30	19	0.47	2.35	15	0.38	0.51	14	0.36	3.11	4	0.1	3.31	38.27
10	5.19	19	0.59	2.95	20	0.51	0.64	19	0.48	3.97	4	0.1	4.17	59.86
9	6.50	19	0.66	3.3	20	0.51	0.64	19	0.48	4.32	5	0.13	4.58	73.64
8	8.17	19	0.74	3.7	30	0.76	0.9	28	0.71	5.22	5	0.13	5.48	95.16
7	10.53	19	0.84	4.2	30	0.76	0.9	28	0.71	5.72	5	0.13	5.98	120.74
6	13.19	19	0.94	4.7	30	0.76	0.9	28	0.71	6.22	5	0.13	6.48	145.02
5	16.45	19	1.05	5.25	30	0.76	0.9	28	0.71	6.77	6	0.15	7.07	180.78
4	21.13	19	1.19	5.74	40	1.02	1.1	35	0.89	7.78	6	0.15	8.08	229.38
3	26.40	19	1.33	6.45	40	1.02	1.1	35	0.89	8.49	6	0.15	8.79	280.88
2	33.58	19	1.5	7.26	40	1.02	1.1	35	0.89	9.3	6	0.15	9.6	350.23
1	42.12	19	1.68	8.15	50	1.27	1.38	45	1.14	10.69	7	0.18	11.05	447.22
1/0	53.30	19	1.89	9.14	50	1.27	1.38	45	1.14	11.68	7	0.18	12.04	555.15
2/0	67.07	19	2.12	10.3	50	1.27	1.38	45	1.14	12.84	7	0.18	13.2	687.52
3/0	84.53	19	2.38	11.6	50	1.27	1.38	45	1.14	14.14	7	0.18	14.5	854.27
4/0	107.18	19	2.68	13	50	1.27	1.38	45	1.14	15.54	7	0.18	15.9	1068.65
250	125.72	37	2.08	14.2	60	1.52	1.67	55	1.4	17.24	8	0.2	17.64	1272.29
300	151.06	37	2.28	15.5	60	1.52	1.67	55	1.4	18.54	8	0.2	18.94	1512.81
350	177.29	37	2.47	16.8	60	1.52	1.67	55	1.4	19.84	8	0.2	20.24	1761.4
400	202.53	37	2.64	17.9	60	1.52	1.67	55	1.4	20.94	8	0.2	21.34	1999.42
500	252.89	37	2.95	19.7	60	1.52	1.67	55	1.4	22.74	8	0.2	23.14	2470.99
600	304.24	61	2.52	22	70	1.78	1.94	65	1.65	25.56	9	0.23	26.02	2998.91
650	328.87	61	2.62	22.9	70	1.78	1.94	65	1.65	26.46	9	0.23	26.92	3231.59
750	378.30	61	2.81	24.6	70	1.78	1.94	65	1.65	28.16	9	0.23	28.62	3697.59
1000	506.04	61	3.25	28.4	70	1.78	1.94	65	1.65	31.96	9	0.23	32.42	4896.32

3.Specification:
H05V-U Specification

300/500V,Copper Conductor PVC Insulated Wire
Nominal Cross Section	Conductor Construction		Insulation Thickness	Overall Diameter	Approx. Net Weight
mm2	No.	Diameter	mm	mm	kg/km
1 X 0.5	1	0.8	0.6	2.00	8.16
1 X 0.75	1	0.97	0.6	2.17	10.71
1 X 1.0	1	1.13	0.6	2.33	13.48
300/500V, Copper Conductor Heat Resistant PVC Insulated Connecting Wire at 90ºC
Nominal Cross Section	Conductor Construction		Insulation Thickness	Overall Diameter	Approx. Net Weight
mm2	No.	Diameter	mm	mm	kg/km
1 X 0.5	1	0.8	0.6	2.00	8.16
1 X 0.75	1	0.97	0.6	2.17	10.71
1 X 1.0	1	1.13	0.6	2.33	13.48
1 X 1.5	1	1.38	0.7	2.78	19.70
1 X 2.5	1	1.78	0.8	3.38	31.20

H05V-R Specification

300/500V,Copper Conductor PVC Insulated Wire
Nominal Cross Section	Conductor Construction		Insulation Thickness	Overall Diameter	Approx. Net Weight
mm2	No.	mm	mm	mm	kg/km
1 X 0.75	7	0.37	0.6	2.31	11.3
1 X 1.0	7	0.43	0.6	2.49	14.2

H05V-K Specification

300/500V,Copper Conductor PVC Insulated Flexible Connecting Wire
Nominal Cross Section	Conductor Construction		Insulation Thickness	Overall Diameter	Approx. Net Weight
mm2	No.	Diameter	mm	mm	kg/km
1 X 0.5	28	0.15	0.6	2.16	8.65
1 X 0.75	40	0.15	0.6	2.40	11.22
1 X 1.0	32	0.20	0.6	2.54	14.32
300/500V, Copper Conductor Heat Resistant PVC Insulated Connecting Wire at 90ºC
Nominal Cross Section	Conductor Construction		Insulation Thickness	Overall Diameter	Approx. Net Weight
mm2	No.	Diameter	mm	mm	kg/km
1 X 0.5	28	0.15	0.6	2.16	8.65
1 X 0.75	40	0.15	0.6	2.40	11.22
1 X 1.0	32	0.20	0.6	2.54	14.32
1 X 1.5	30	0.25	0.7	3.00	20.58
1 X 2.5	49	0.25	0.8	3.70	32.24

H07V-R Specification

450/750V,Copper Conductor PVC Insulated Wire
Nominal Cross Section	Conductor Construction		Insulation Thickness	Overall Diameter	Approx. Net Weight
mm2	No.	Diameter	mm	mm	kg/km
1 X 1.5	7	0.52	0.7	2.96	20.4
1 X2.5	7	0.67	0.8	3.61	32.3
1 X4.0	7	0.85	0.8	4.15	47.8
1 X6.0	7	1.04	0.8	4.72	67.7
1 X10	7	1.35	1.0	6.05	113.1
1 X 16	7	1.70	1.0	7.1	170.9
1 X 25	7	2.14	1.2	8.82	268.5
1 X 35	7	2.52	1.2	9.96	362.8
1 X 50	19	1.78	1.4	11.7	492.2
1 X 70	19	2.14	1.4	13.5	694.2
1 X 95	19	2.52	1.6	15.8	959.2
1 X 120	37	2.03	1.6	17.41	1197.1
1 X 150	37	2.25	1.8	19.35	1472.9
1 X 185	37	2.52	2.0	21.64	1846.1
1 X 240	61	2.25	2.2	24.65	2416.5
1 X 300	61	2.52	2.4	27.48	3023.6
1 X 400	61	2.85	2.6	30.85	3851.7

H07V-K Specification

450/750V,Copper Conductor PVC Insulated Flexible Wire
Nominal Cross Section	Conductor Construction		Insulation Thickness	Overall Diameter	Approx. Net Weight
mm2	No.	Diameter	mm	mm	kg/km
1 X 1.5	30	0.25	0.7	3.00	20.6
1 X2.5	49	025	0.8	3.70	32.2
1 X4.0	56	0.30	0.8	4.21	48.
1 X6.0	84	0.30	0.8	5.57	71.2
1 X10	84	0.40	1.0	7.30	124.4
1 X 16	126	0.40	1.0	8.00	175.8
1 X 25	196	0.40	1.2	10.10	272.5
1 X 35	276	0.40	1.2	11.87	373.9
1 X 50	396	0.40	1.4	13.93	532.8
1 X 70	360	0.50	1.4	16.12	737.9
1 X 95	475	0.50	1.6	19.24	978.1
1 X 120	608	0.50	1.6	19.95	1222.5
1 X 150	756	0.50	1.8	23.34	1529.7
1 X 185	925	0.50	2.0	25.54	1870.1
1 X 240	1221	0.50	2.2	27.85	2443.4
1 X 300	1525	0.50	2.4	32.49	3032.9
1 X 400	2013	0.50	2.6	35.35	3958.6

HO3VV-F and AO3VV-F Specification

Rated Voltage	Copper Conductor PVC Insulated PVC Sheathed Round Flexible Connecting Wire
	Nominal Cross Section	Conductor Construction	Insulation Thickness	PP Tape	Sheath Thickness	Overall Diameter	Approx. Net Weight
	mm2	No./mm	mm	No./mm	mm	mm	kg/km
300/300V	2 X0.5	16/0.20	0.5	1/0.05	0.6	5.87	34.80
	2 X 0.75	24/0.20	0.5	1/0.05	0.6	6.50	43.40
	3 X 0.5	16/0.20	0.5	1/0.05	0.6	6.22	44.01
	3 X 0.75	24/0.20	0.5	1/0.05	0.6	6.90	55.64
300/500V	2 X 0.5	16/0.20	0.6	1/0.05	0.7	5.78	36.69
	2 X 0.75	24/0.20	0.6	1/0.05	0.8	6.78	47.02
	2 X 1.0	32/0.20	0.6	1/0.05	0.8	6.78	54.79
	2 X 1.5	30/0.25	0.7	1/0.05	0.8	7.71	72.31
	2 X 2.5	49/0.25	0.8	1/0.05	0.8	9.51	111.90
	3 X 0.5	16/0.20	0.6	1/0.05	0.7	6.11	46.72
	3 X 0.75	24/0.20	0.6	1/0.05	0.8	6.74	59.71
	3 X 1.0	32/0.20	0.6	1/0.05	0.8	7.17	71.03
	3 X 1.5	30/0.25	0.7	1/0.05	0.8	8.17	95.26
	3 X 2.5	49/0.25	0.8	1/0.05	1.2	10.48	156.81
	3 X 4.0	50/0.30	0.8	1/0.05	1.2	11.38	199.81
	4 X 1.0	32 X 0.20
	4 X 1.5	48 X 0.20
	4 X 2.5	77 X 0.20
	4 X 4.0	56 X 0.30
	4 X 6.0	84 X 0.30
	4 X 10	84 X 0.40
	4 X 16	126 X 0.40
	5 X 1.5	48 X 0.20
	5 X 2.5	77 X 0.20
	5 X 4.0	56 X 0.30
	5 X 6.0	84 X 0.30
	5 X 10	84 X 0.40
	5 X 16	126 X 0.40

H03VVH2-F Specification

300/500V,Copper Conductor PVC Insulated PVC Sheathed Flat Wire
Nominal Cross Section	Conductor Construction	Insulation Thickness	Sheath Thickness	Overall Diameter	Approx. Net Weight
mm2	No./mm	mm	mm	mm x mm	kg/km
2 X 0.75	1/0.97	0.6	0.9	3.97 x 6.14	39.0
2 X 1.0	1/1.13	0.6	0.9	4.13 x6.46	45.6
2 X1.5	1/1.37	0.7	0.9	4.57x7.34	60.5
2 X2.5	1/1.76	0.8	1.0	5.36x8.72	89.9
2 X4	1/2.24	0.8	1.0	5.84x9.68	123.5
2 X4	7/0.85	0.8	1.0	6.15x10.30	130.6
2 X6	1/2.74	0.8	1.1	6.54x10.88	169.4
2 X6	7/1.04	0.8	1.1	6.92x11.64	179.2
2 X10	7/1.35	1.0	1.2	9.45x14.50	286.5
2 X16	7/1.70	1.0	1.2	9.50x16.60	412.3
3 X0.75	1/0.97	0.6	0.9	3.97x8.31	55.2
3 X1.0	1/1.13	0.6	0.9	4.13x8.79	65.0
3 X1.5	1/1.38	0.7	0.9	4.58x10.14	87.7
3 X2.5	1/1.76	0.8	1.0	5.36x12.08	129.9
3 X4	1/2.24	0.8	1.1	6.04x13.72	184.7
3 X 4	7/0.85	0.8	1.1	6.35x14.65	195.4
3 X6	1/2.74	0.8	1.1	6.54x15.22	247.7
3 X 6	7/1.04	0.8	1.1	6.92x16.36	262.0
3 X10	7/1.35	1.0	1.2	8.45x20.55	420.8

Size of conductor		Nominal thickness of insulation mm	Nominal thickness of sheath mm	Mean overall dimensions		Approx. net weight per km kg
Nominal cross- sectional area mm2	Number and diameter of wires no/mm	Nominal thickness of insulation mm	Nominal thickness of sheath mm	Lower Limit mm	Upper Limit mm	Approx. net weight per km kg
0.75	24/0.20	0.6	0.8	6.0	7.6	63
1.0	32/0.20	0.6	0.8	6.4	8.0	73
1.25	40/0.20	0.7	0.8	7.0	8.6	84
1.5	30/0.25	0.7	0.8	7.4	9.0	95
2.5	50/0.25	0.8	1.0	8.9	11.0	145

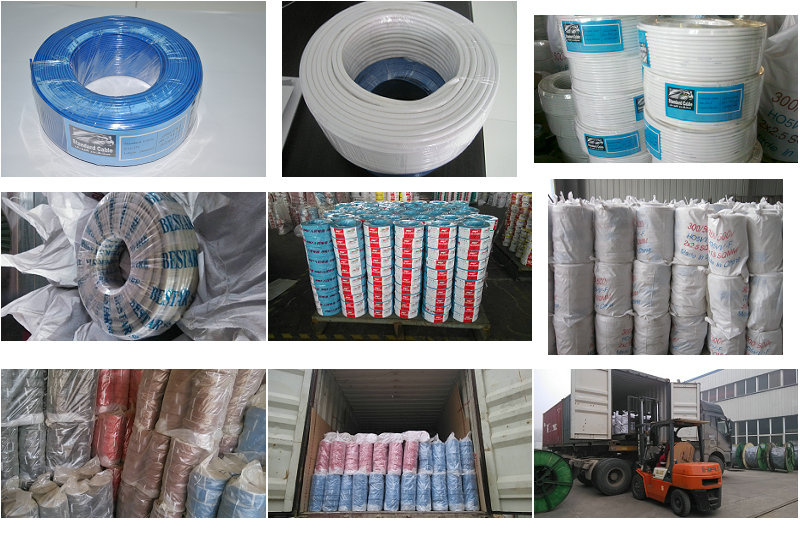

4.Package:
Packing in plastic reel, paper reel ,wooden drum or as customer's requirement.
Flexible Copper Conductor H05V-R H05V-K H07V-K H07V-R H03VV-F Building Wire

Flexible Copper Conductor H05V-R H05V-K H07V-K H07V-R H03VV-F Building Wire

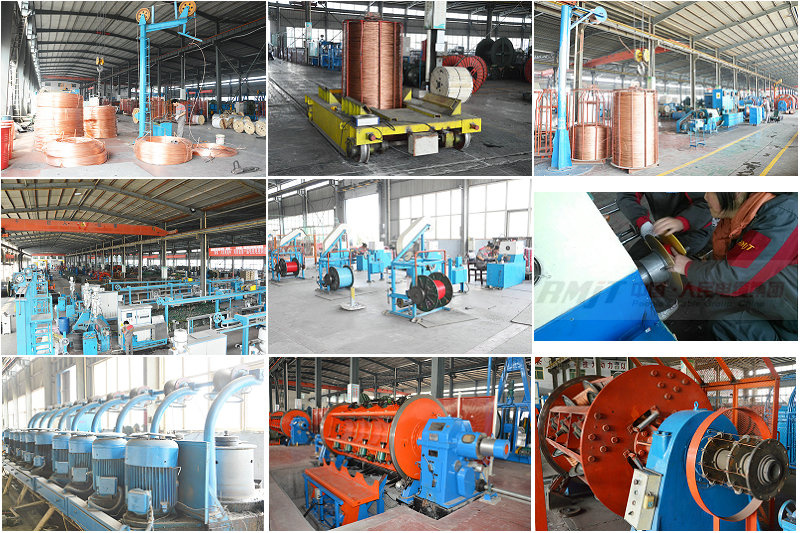

5.Our factory:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Flexible Copper Conductor H05V-R H05V-K H07V-K H07V-R H03VV-F Building Wire

Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years,
so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service,till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!

FAQ:

I didn't find the cable which I need in this page?
If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.

Are you a trading company or manufacture?
RMJT is a professional manufacturer in Henan, China.

What is the MOQ?
Mostly we sell from stock for normal items, you can buy any quantity unless its customed-made.

Can you offer me a free sample?
Yes, after price confirmation, you can require for samples to check our quality.sample is free but the freight charge should be paid.

How long get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days

How is your package?
Normally packed with coils and cartons, and wooden/steel wooden drums, other ways can be done according you.

How is the payment?
T/T, L/C is accepted.

What is the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.

As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "

With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.

Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
