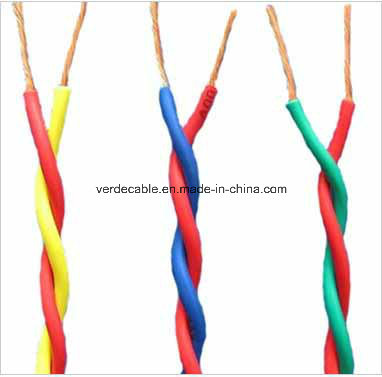

Flexible Copper Conductor PVC Insulated Twisted Electrical Cable

Name: Flexible Copper Conductor PVC Insulated Twisted Electrical Cable
Brand: all-electronics-online.com
SKU: 769487805
Availability: InStock
Rating: 5 (65 reviews)

Price:	US $ 0.1-1.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RVS
Markets:	South America,Southeast Asia,Africa,Mid East
Produceing Experience:	15 Years
Size:	0.75, 1.0, 1.5,2.5, 4,6, 10,16,
OEM:	Yes
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Application:	Household,Building,Equipment Inner Connection

Product Description

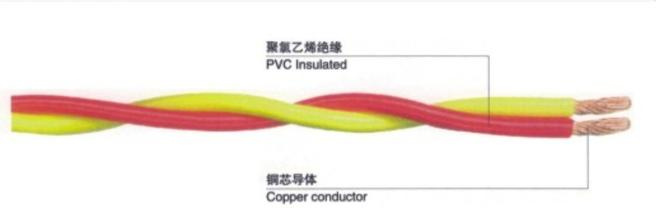

Stranded Copper Conductor PVC Insulated FlexibleTwisted Electrical Cable

1. Basis information:
· U0/U: 450/750V
· Standard applied: IEC 60227,BS 6004 VDE 0281
· Max. working temp.:70°C
· Conductor: Class 1/2 plain annealed copper wires, solid or stranded
· Insulation: PVC
· Cross section area: 0.75~630sqmm
· Core Color: All colors
· Package: 100 meters per roll or as per requirement
· OEM can be available
· Flame retardant or fire resistance or Low Smoking and Halogen free or other property can be available

2.Application
It applies to the connecting line of home appliances, instrumentation, power lighting with AC rated voltage 300/300v

3.Technical Data

Nominal cross-section ( mm2)	Stranding Nos/dia (mm)	Maximum diameter (mm)	Max DC Resistance (Ω/Km. 20°)
2×0.5	28/0.15	6.0	40.1
2×0.75	42/0.15	6.2	26.7
2×1	32/0.20	6.6	19.5
2×1.5	32/0.2	7.0	13.3
2×1.5	48/0.20	7.0	13.3
2×2.5	49/0.25	8.2	7.98
2×4	56/0.30	10.2	4.95

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:

Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.

Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.

We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.

New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.

We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.

Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.

Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
