| Prod Model: |
utilises the Rogowski principle |
| Frequency: |
25-20k Hz 45-600Hz |
| Insulation Class: |
Cat III |
| Customized: |
Customized |
| Accuracy: |
<1%(45-65Hz) |
| Current Range: |
10A ~30ka / 10A ~6000A |
| Power Supply: |
10-30VDC, 30mA Max. |
| Coil Structure: |
Toroidal |
| Color: |
Customized |
| Max Output: |
3.0V AC Max |
| Standards Safety: |
ISO9001: 2001, 600V Cat III |
| Application: |
Rectifier |
| Phase: |
Single |
| Coil: |
Amorphous Alloy Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Chuangyin |
Product Description

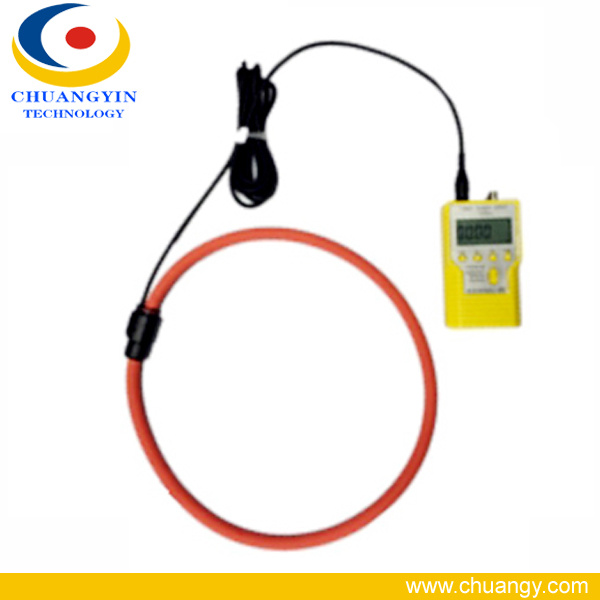

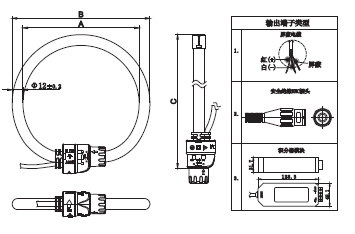

The 'RCT02 Clamp-on Flexible Rogowski coil current transformer' are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.
Features:
Flexible and light weights_
Easy & quick installation in tight spaces
No danger from open-circuited secondary
No core saturation or damage if overloaded
excellent linearity
Multi- size are available
Applications:
Power quality monitoring
Power meters
Smart logger
Energy sub-meters
Distributed measurement systems

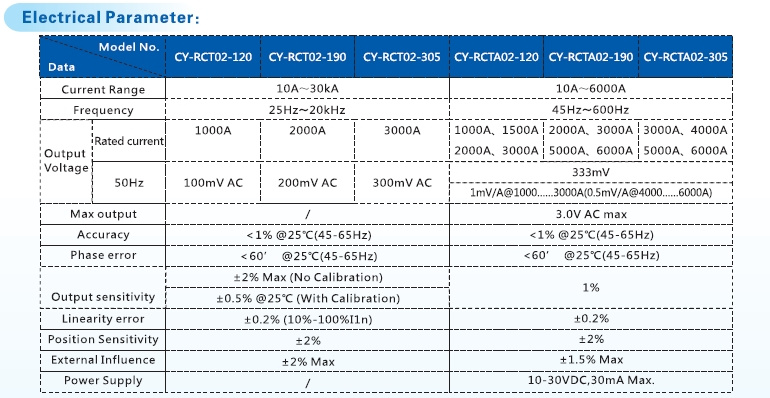

Electrical Characteristics
Current Range : 3000A
Calibrated output VRMS at 1000 ARMS / 60 Hz : 100mV
Accuracy (at 25°C, 60 Hz) :
±0.5% of readingInterchangeability variance :
±0.5% of readingLinearity (10% to 100% of range) :
±0.2% of readingInternal Resistance : 157 ±15Load Resistance..............................… :
≥ 100 kBandwidth (-1dB)............................. : 10Hz to 20kHzPhase Error (45 - 65Hz) :
±1ºTemperature Coefficient :
±0.05% of reading /°CPosition Sensitivity : ±2% of reading
External Field (with cable > 100mm from the head) :
±0.25% of rangeWorking Voltage (see Safety Standards section) : 1000V AC RMS or DC (Probe): 30V max (Output)General Characteristics
Probe Material :
Alcryn 2070 NC, LATENE 7H2W V0Probe Cable Length / Conductor Diameter… : 610mm (24") / 194 mm (7.6")Probe Cable Diameter : 9.9mm (nominal)Output Cable Length : 10m un terminated Operating Temperature Range : -20 to +80°C Storage Temperature Range : -40 to +90°C Operating Humidity : 15% to 85% (non condensing) Safety Standards
EN 61010-1:2001EN 61010-031:2002EN 61010-2-032:2002 1000 VRMS, Category III, 600 VRMS, Category IV, Pollution Degree 2Use of the probe on uninsulated conductors is limited to 1000 V ACRMS or DC and frequenciesbelow 1 kHz.Note:The above parameter is only for reference as typical data, customer-made is subject to customers' request. SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD. ( CY Group )Certification: KEMA, ISO9001, UL, SGS, CE.( Your reliable partner for CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT )Rogowski coil Arvin Q.Business Development ExecutiveMob: +86 13925284622
