| Prod Model: |
silicone |
| Nane: |
Silicone Rubber Heater |
Product Description
Specifications for Silicone Rubber Heater | Temperature Rating | 250°C maximum operating |
| Size/Shape Limitations | Min size 20mm*20mm |
| Thickness | ~0.06 inch(Single-Ply)~0.12 inch(Dual-Ply) |
| Voltage | Any AC or DC |
| Wattage | Customer specified(Normal maximum of 0.8-1 watts per square mm) |
| Power lead wire | Silicone rubber, SJ Power Cord, or Teflon insulated stranded wire |
| Attachment | Hooks, lacing eyelets, Or Velcro closure. Temperature control(Thermostat) |
Description | 1. Thinness, lightness, sticky and flexibility
2. Improve heat transfer, accelerate warming and decrease power under the process of operation
3. Heat fast and high thermal conversion efficiency |
Features for Silicone Rubber Heater
(1) Heating fast and long time using
(2) Flexibility and customized shape
Dual Voltage, Zoning and Three Phase for Silicone Rubber Heater
Due to the flexibility in circuit design of Silicone Rubber Heater, multiple heating circuits can be designed to accommodate dual voltage and multiple zones. On dual voltage heaters, three leads, including a common in a different color, are provided for wiring the heater in series for the higher voltage and parallel for the lower voltage. 120/240 Vac or 240/480 Vac can be achieved. Multiple circuit areas can be zoned to achieve different heating effects. Three-phase circuits can also be designed for high current applications.
Our Services
One year warranty
Fast delivery and competitive price
FREE assistance for design to achieve an ideal thermal heating solution
Customized size,shape and voltage&wattage |
Products show

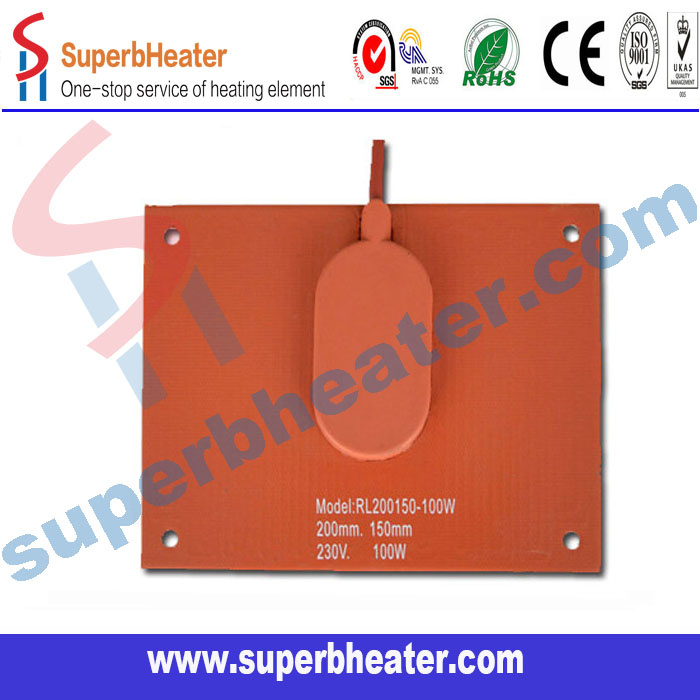

Silicone rubber heater
Fast heating,high thermal efficiency
slightness and thinness
long working life
Approved by SGS
Introduction silicone rubber heater:

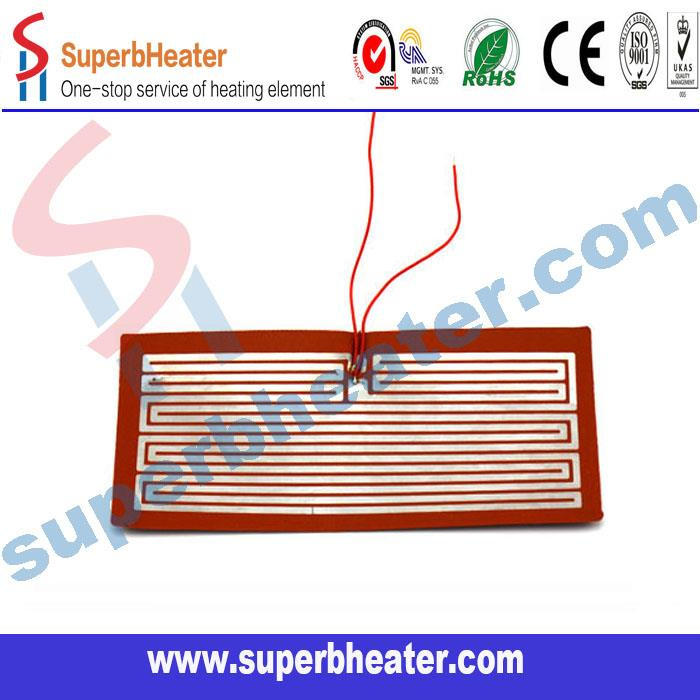

silicone rubber heater is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment. Due to its high reliability, the product is highly competitive when comparing with other electric heating film products which normally have paste materials such as graphite paste or resistor paste, etc. coated on insulation materials. As a kind of soft red film which can be applied closely on different curved surfaces, the silastic heater can be fabricated in varies shapes and powers.
Our company designs, develops and manufactures silicone rubber heaters, technically eliminating the traditional "hard" defect, and they can be easily close to the heated object, and their shapes can be changed upon requests, providing a small temperature difference and efficient uniform heating surface. The products are widely used inhealth care, instrumentation, mechanical equipment, monitoring equipment and tubular and planar heat insulation.
Characteristics:
1. Fast heating with a coefficient of heat conductivity of only 1W/m.k. Due to its small thermal capacity, prompt turn on/off can be achieved.
2. High thermal efficiency: The temperature of electric heating film itself is only tens of centidegrees higher than that of the liquid when heating, which is 2-3 times energy saving than ordinary electric stoves.
3. Water, acid and alkali resistance, high-strength of electric insulation.
4. High mechanical strength with 100kg/cm² mechanical pressure.
5. Small size: Small space occupied when applying this heating product.
6. Easy application: Its self-insulation and free-of-open-fire property greatly help simplify the techniques of heat preservation and thermal insulation.
7. Its wide range of temperature,-60°C~250°C, can not be simply achieved by other electrical appliances.
8. Long service time: Under normal use, the product almost can be permanently and continuously used because nickel and chrome materials are durable to any corrosion, and the silastic has a high surface resistance up to 100kg/cm², which is uncomparable for any other electric heaters.
9. Made in any size, the temperature of the product can be precisely adjusted by temperature controller. Technical parameters of silastic
heaters:
| | Stangard | High Temperature |
Continuous temperature | 150.00°C | 250.00°C |
The maximun temperature | 250.00°C | 280.00°C |
Dimensions | Maximum | 500.00mmx5000.00mm |
Minimum | 25.00mmx25.00mm |
Thickness | 1.50mm |
Wire length | Stangard 200.00mm |
Technical Data:
1. Temperature range: -40.00~250.00°C
2. Electric resistance precision: ±10%( bigger value selected)
3. Power density: 0.10~1.50w/cm²
4. Mechanical pressure: 100.00kg/cm²
5. Minimum bending radius: 3.20mm
Application:
1. Industrial equipment, pipelines, barrels, tanks, etc. 2. Outdoors telecommunication equipment
3. Medical equipment and devices 4. Outdoors electronic devices 5.Thermal imaging of imaging equipment
6. Case protection under cold and moist environment 7. Industrial ovens and thermal processing equipment
8. Ventilator supports 9. Laminating equipment 10. Vessels
