| Prod Model: |
twist cable 2.5mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Voltage: |
450V-750V |
| Standard Length: |
100m/Roll |
| Working Temp: |
0°c-70°c |
| Conductor: |
Bare Copper |
| Cores: |
as Client's Requirement |
| Color: |
Red/Black/Blue/Yellow/Green or as Required |
| Jcaket: |
PVC |
| Package: |
Fillm Packing |
| Delivery: |
15-20days After Payment |
| Model: |
Twist Cable 2.5mm |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Material Shape: |
Twisted Cable |
Product Description

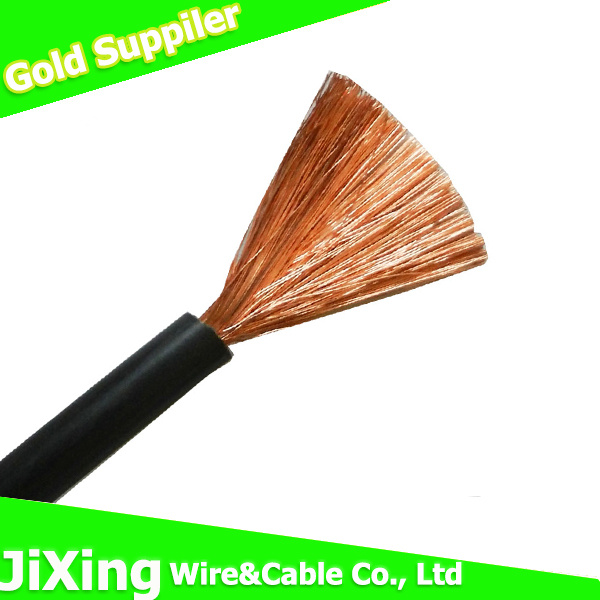

Flexible electrical copper wiring cable
Description:
Related temperature: 70C
Rated voltage: 300/500V
Reference standard:
DIN VDE 0281-3-2001 HD21.3S3: 1995+A1: 1999
Tinned or bare, stranded or solid copper conductor
PVC/T12 insulation
Application:
For power supply and lighting
H07V-U, H07V-R
Description:
Related temperature: 70C
Rated voltage: 300/500V
Reference standard:
DIN VDE 0281-3-2001 HD21.3S3: 1995+A1: 1999
Tinned or bare, stranded or solid copper conductor
PVC/T11 insulation
Application:
For power supply and lighting
H07V-K
Description:
Related temperature: 70C
Rated voltage: 300/500V
Reference standard:
DIN VDE 0281-3-2001 HD21.3S3: 1995+A1: 1999
Tinned or bare, stranded or solid copper conductor
PVC/T12 insulation
Application:
For power supply and lighting
H03VVH2-F, H03VV-F, H05VVH2-F, H05VV-F
Description:
Related temperature: 70C
Rated voltage: 300/300V &300/500V
Reference standard:
DIN VDE 0281-3-2002 HD21.5S3: 1994+A1: 1999+A2: 2001
Tinned or bare, stranded or solid copper conductor
PVC/T12 insulation
PVC/TM2 JACKET
Application:
Internal & exterior wiring for electronic appliance, Power instruments and auto equipments.
Model and Name
Type |
Name |
Laying place and requirement |
Long term working Temperature
Celsius degree |
60227IEC01
(BV)
60227IEC 05
(BV)
|
Copper conductor PVC insulated cable (electrical wire)
|
Fixed laid indoors
Conduit etc. |
70 |
BLV |
Aluminum conductor PVC insulated cable (electrical wire) |
60227IEC07
(BV-90) |
Heat resistant copper conductor PVC insulated cable (electrical wire)
at 90 Celsius degree |
Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits. |
90 |
BVR |
Copper conductor PVC insulated flexible cable (electrical wire)
|
Be for laying permanent place where flexible required. |
70 |
60227IEC10
(BVV) |
Copper conductor PVC insulated PVC sheathed round cable (electrical wire) |
Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
70 |
BLVV |
Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire)
|
BVVB |
Copper conductor PVC insulated PVC sheathed flat cable (electrical wire)
|
BLVVB |
Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire)
|
60227IEC02
(RV)
60227IEC06
(RV) |
Copper conductor PVC insulated flexible connector cable (electrical wire)
|
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
70 |
60227IEC42(RVB) |
Copper conductor PVC insulated flat flexible connector cable (electrical wire)
|
RVS
|
Copper conductor PVC insulated flexible twisting connector cable (electrical wire)
|
60227IEC52(RVV)
60227IEC53
(RVV) |
Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire)
|
60227IEC08
(RV-90)
|
Copper conductor heat resistant PVC insulated flexible connector cable (electrical wire)
at 90 Celsius degree |
Mainly used at the places where heat resistance is required |
90 |
