| Prod Model: |
H07V-K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electrical Wire 2.5sq.Mm: |
Max. DC Resistance @ 20 Degree 7.41 Ohm/Km |
| Electrical Wire 4sq.Mm: |
Max. DC Resistance @ 20 Degree 4.61 Ohm/Km |
| Type: |
Insulated |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Class 5,Flexible |
| Range Of Application: |
Heating or Underground |
Product Description

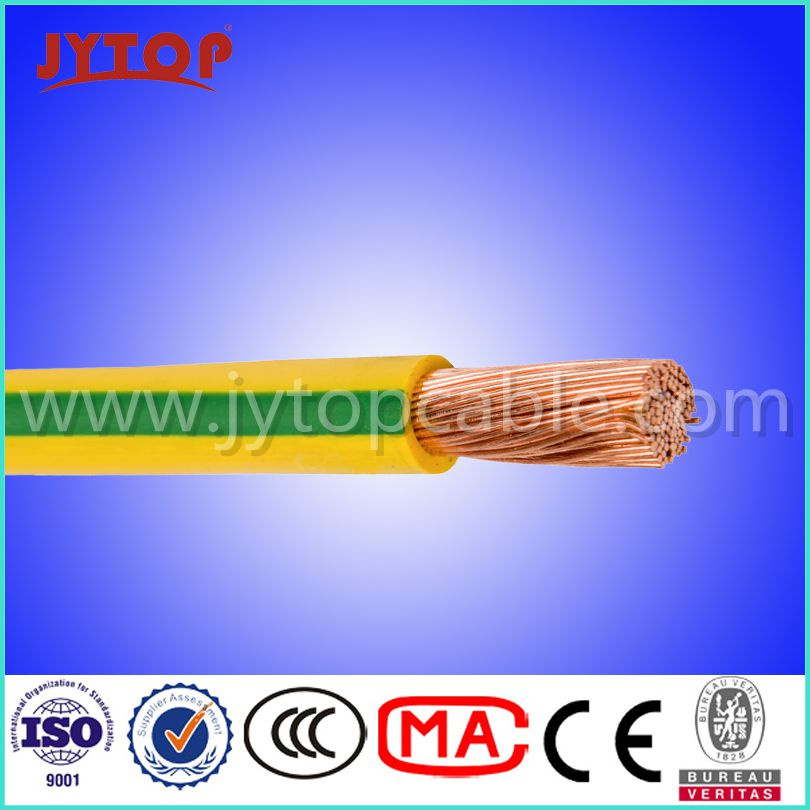

FLEXIBLE H07V-K H05V-K ELECTRICAL WIRE PVC INSULATED BUILDING WIRE ELECTRIC WIRE
Flexible copper conductor PVC insulated electrical wire Class 5 conductor PVC insulated building wire electric wire
Construction
1. Flexible copper conductor
2. PVC insulation
Application
Switchbord cabling and installations in machines
Domestic and industrial installations
| Size of conductor | Nominal thickness of insulation
mm | Mean overall diameter
Upper limit
mm | Approx. net weight per km
kg |
Nominal
cross-sectional area
mm 2 | Number and diameter of wires
no. /mm |
| 1.0 | 32/0.20 | 0.6 | 3.0 | 16 |
| 1.5 | 30/0.25 | 0.7 | 3.5 | 21 |
| 2.5 | 50/0.25 | 0.8 | 4.2 | 33 |
| 4 | 56/0.30 | 0.8 | 4.8 | 50 |
| 6 | 84/0.30 | 0.8 | 6.3 | 70 |
| 10 | 80/0.40 | 1.0 | 7.6 | 120 |
| 16 | 126/0.40 | 1.0 | 8.8 | 175 |
| 25 | 196/0.40 | 1.2 | 11.0 | 290 |
| 35 | 276/0.40 | 1.2 | 12.5 | 400 |
| 50 | 396/0.40 | 1.4 | 14.5 | 565 |
| 70 | 360/0.50 | 1.4 | 17.0 | 770 |
| 95 | 475/0.50 | 1.6 | 19.0 | 1010 |
| 120 | 608/0.50 | 1.6 | 21.0 | 1260 |
| 150 | 756/0.50 | 1.8 | 23.5 | 1580 |
| 185 | 925/0.50 | 2.0 | 26.0 | 1900 |
| 240 | 1221/0.50 | 2.2 | 29.5 | 2500 |
Why Choose us?
For over 20 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional armoured cable, PVC cable, Aluminum cable manufacturer has been producing customized cable for a wide range of applications based on high quality, excellent service and competitive market prices. This is an elite team with experienced personnel and strong technical support. Our achievements benefit by having access to the largest market for cheap labor and abundant resources in China and our determination to exceed our clients' expectations.
PRODUCTS & STANDARDS
We can produce more than 2,000 types of cables and wires, such as
Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW, Aluminum Clad Steel Wire/Strand, Bare Copper Conductors, Copper Clad Steel Wire/Strand, Copper Clad Aluminum(CCA), Galvanized Steel Wire/Strand, etc.
Overhead Insulated Cable: Covered Line Single Core Cable and Aerial Bundled Cable (ABC). ABC includes Duplex, Triplex, Quadruplex and more Cores Service Drop Cable.
PVC Insulated Wire up to 450/750V
PVC or XLPE Insulated Power Cable from 1kV to 36kV
Control Cable
Welding Cable
Rubber Cable
We can produce cables according to the standards of IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ and meet customers' special requirements.
ACHIEVEMENTS & COMMITMENT
Our cable has been exported to South-East Asia, South Asia, Middle-East, Europe, North and South America, Africa, Australia & New Zealand and so on. Zhengzhou Jinyuan Wire and Cable Co., Ltd.'s commitment is to be recognized as a zero-defect world class manufacturer in cable industry through continuous improvement of our quality, processes, and products, and by our determination to exceed our clients' expectations.
Welcome to contact us for more information about the h07v-k cable or other cables.
