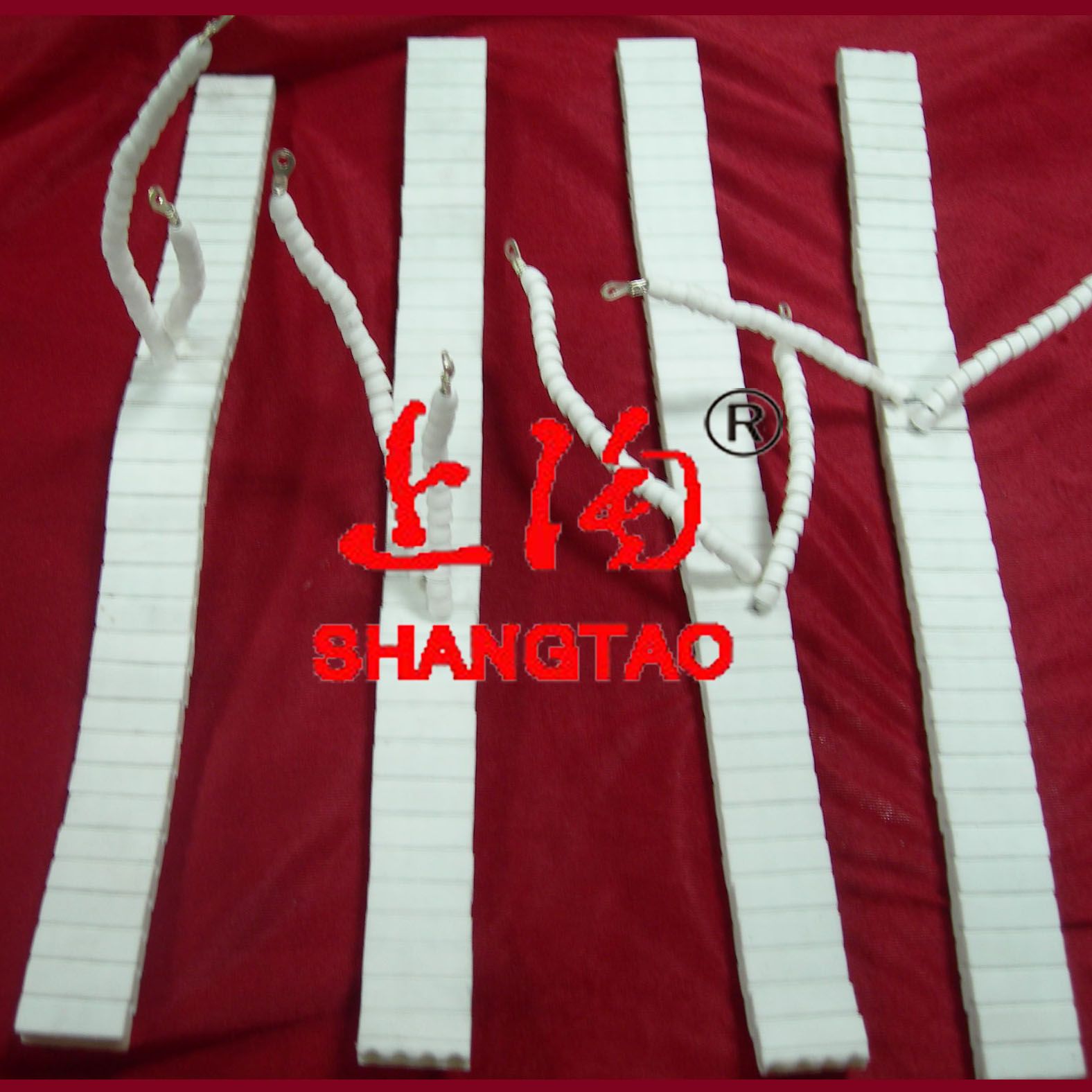

Flexible Insulated Ceramic Preheater Pad Elements (FPE)

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Shangtao
Color:	White, Red
Power:	1kw, 10kw, 15kw
Size:	500X500mm, 300X500
Application:	Heater
Structure Material:	Ceramic
Heat Transfer Surface:	Plate Heat Exchanger
Principle:	Mixing Heat Exchanger

Product Description

The pad made of alumina ceramic as high quality raw material. Is formed to various shapes by special technics after firing in high temperature. Good thermal shock resistance, good insulation.

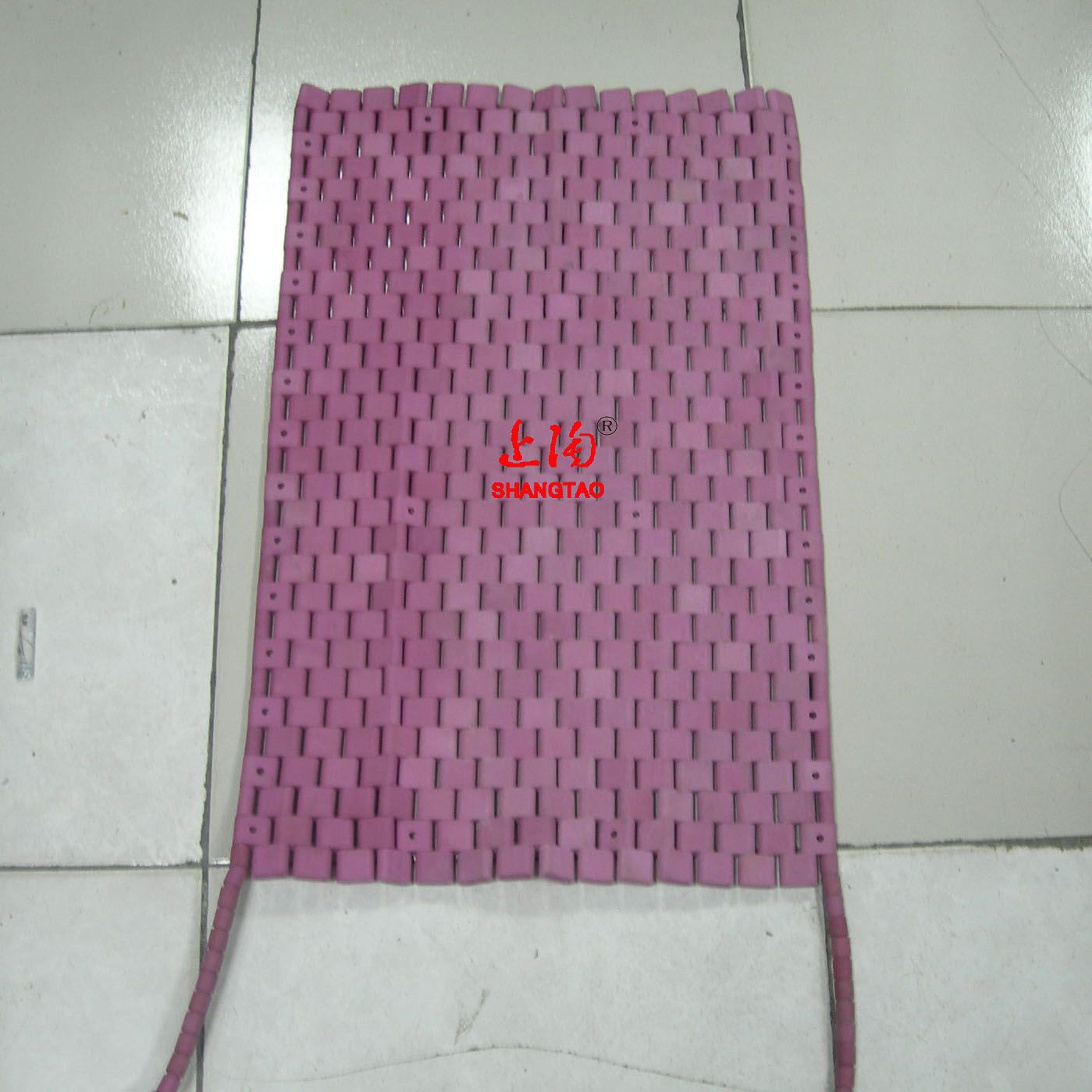

Flexible ceramic pad heaters are designed for most preheat and post heat treatment (stress relieving) requirements on weld joined materials. They can be used to construct a simple, inexpensive furnace when combined with the proper insulation as well as in many other applications where a flexible heater is required.
They are designed for repeated heating applications. Their modular design permits a variety of element shapes, sizes, and thermal capacities to choose from. They can be used bare (as supplied) or with the application of rigid or flexible insulation to retain heat and speed up the heat treating jobs


The flexible preheated elements is used for preheating of pipes, pressure vessels etc. The elements are supplied with superwool blanket enclosed in mesh. The blanket is attached to a stainless steel plate which protects from weld splatter. The plate is provided with hooks where magnets can be attached, this makes the elements very easy to mount (elements can also be fasten by banding). The fpe can be used on flat surfaces as well as curved. It is designed to provide preheating up to a temperature of 700° C.

All ceramic heating elements can be customized. Please contact us for more information.


600x100x30
60v
2, 7kw

800x100x30
60v
2, 7kw

Item	Part
Middle pad,Middle hole pad,Male pad	25x25mm
Female pad	25x20mm
Short  tail	10x16mm
Long tail	10x24mm


Large size:

Item	Part
Middle pad,Middle hole pad,Male pad	30x28mm
Female pad	30x25mm
Short  tail	12x18mm
Long tail	12x25mm



Insulation:	Alumina Ceramics (>90%)
Heating Conductor:	Ni-Cr wire(Cr20Ni80), 19 single strands
Temperature:	Max. 1050 C
Power:	1.35 / 2.7 kW
Voltage:	30 / 60 V
Amperage:	45A
