Flexible Insulation Paper Shs Prepreg for Motor and Transformer

Name: Flexible Insulation Paper Shs Prepreg for Motor and Transformer
Brand: all-electronics-online.com
SKU: 802789875
Availability: InStock
Rating: 4.7 (124 reviews)

Price:	US $ 11.95-26.95kg
Min Order:	200kg
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YX212
Application:	Transformer
Type:	Insulation Paper
Chemistry:	Organic Insulation
Thermal Rating:	H 180
Material:	Nonwoven and Polyester
Color:	Red
Brand:	Yuxiang\Yohann

Product Description

H CLASS (180ºC)
High Mechanical Properties
Good Adhesion After Heating

General description

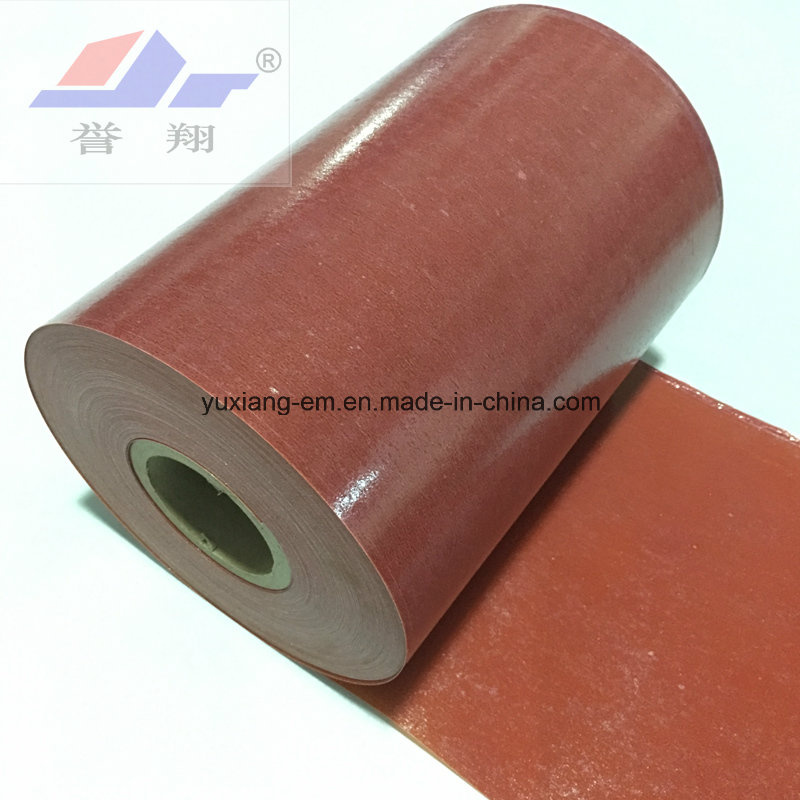

YX212 SHS-P is a B-stage flexible laminates made of Dacron-PI laminates and epoxy resin.

Application
YX212 SHS-P is suitable for insulation in electrical motors and transformers with a maximum operating temperature of 180ºC.It is used as insulation materials for low or medium voltage rotating machines: ground and slot. It can be used, as well, as intermediate layer in transformers.

Typical properties

Item	Unit	Spec
Thickness	Mm	0.18	0.20	0.23	0.25
Thickness Tolerance	Mm	±0.030	±0.035
Resin Content	g/m2	≥50
Dissoluble Resin Content	g/m³	≥45
Volatile	%	≥1.5
Tensile Strength (DM)	N/10mm	≥70	≥80		≥100
Dielectric Strength	MV/m	≥40

Shanghai Yuxiang electrical material Co., Ltd established in Pudong district of Shanghai in 2004.

The headquarters and manufacturing base has moved to Shanghai Nanxiang in 2008. The area of factory is about 5000 Square meters. There are lamination, slitting, coating and stamping lines in our factory.

Yuxiang is one of the most famous electrical flexible lamination coating production supplier in China, and has a very good reputation in the industry.

Yuxiang adhering to the business philosophy of "Beyond Customer's Expectations", providing all kinds of insulation products for the motors, generators, transformers, electronic products, solar energy backs and new energy vehicles, and also providing professional technology consulting, inspection and service for the insulation products.

We established Shanghai Xiyaxin Electronic Materials Co., Ltd and Shanghai Honggong New Materials Co., Ltd in order to serve our customers. These two company is specialized in all kinds of electronic products, electronic materials, insulation materials, chemical products sales and import and export business.

Besides, Honggong is primary dealer of DuPont™ Nomex® Insulation paper in China, provides Nomex® Paper product and service.
