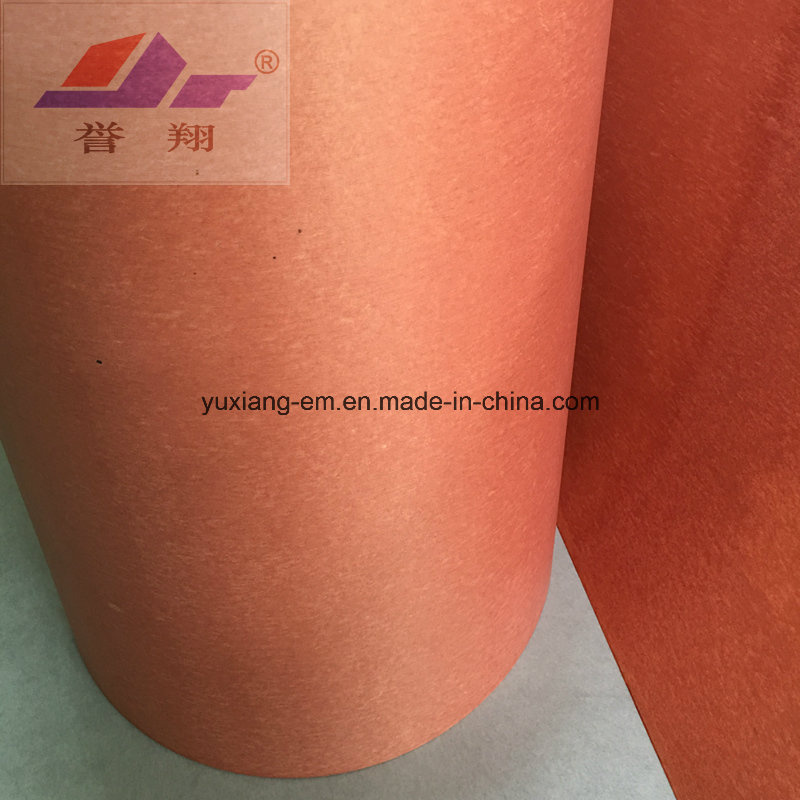

Flexible Laminates Electrical Insulation Paper DMDMD (F Class)

Name: Flexible Laminates Electrical Insulation Paper DMDMD (F Class)
Brand: all-electronics-online.com
SKU: 802830735
Availability: InStock
Rating: 4.8 (110 reviews)

Price:	US $ 3.55-7.25kg
Min Order:	200kg
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DMDMD
Application:	Transformer
Type:	Insulation Paper
Chemistry:	Hybrid Insulation
Thermal Rating:	F 155
Material:	Nonwoven and Polyester
Color:	Red
Brand:	Yuxiang\Yohann

Product Description

Class F (155ºC)
Good mechanical properties
Designed for automatic insertion machine

General description
Yuxiang® DMD is composed of 3 layers of non-woven fabric and 2 layers of polyester film, with high heat-resistant adhesive for gluing pressing of 5 soft composite material.

Application
Yuxiang® DMD is mainly used in high power motor and high voltage transformer insulation commonly used for the insulation of the motor and slot insulation, can also be used for transformer insulating and so on.

Typical properties

DMDMD	Color	Thickness	Resin content	Tensile strength	Tensile strength	Breakdown voltage	Temperature Class

				(MD)	(TD)
		mm	g/m2	N/cm	N/cm	KV
0.9mm	Red	0.9±10%	1150.0±10%	≥500.0	≥400.0	≥30.0	155ºC
Test method	GB/T 5591.2-2002 or IEC 60626-2:1995

Shelf life
The shelf life of Yuxiang® DMDMD is in excess of 2 years when stored at room temperature.

Form of delivery
Jumbo rolls: 25~200kg/roll, 1580mm width, 76mm paper cores
Strips: 6mm~1580mm width according to customer requirements, maximum roll diameter 400mm.

Shanghai Yuxiang electrical material Co., Ltd established in Pudong district of Shanghai in 2004.

The headquarters and manufacturing base has moved to Shanghai Nanxiang in 2008. The area of factory is about 5000 Square meters. There are lamination, slitting, coating and stamping lines in our factory.

Yuxiang is one of the most famous electrical flexible lamination coating production supplier in China, and has a very good reputation in the industry.

Yuxiang adhering to the business philosophy of "Beyond Customer's Expectations", providing all kinds of insulation products for the motors, generators, transformers, electronic products, solar energy backs and new energy vehicles, and also providing professional technology consulting, inspection and service for the insulation products.

We established Shanghai Xiyaxin Electronic Materials Co., Ltd and Shanghai Honggong New Materials Co., Ltd in order to serve our customers. These two company is specialized in all kinds of electronic products, electronic materials, insulation materials, chemical products sales and import and export business.

Besides, Honggong is primary dealer of DuPont™ Nomex® Insulation paper in China, provides Nomex® Paper product and service.
