Flexible Laminates Insulation Paper DMD Prepreg

Name: Flexible Laminates Insulation Paper DMD Prepreg
Brand: all-electronics-online.com
SKU: 799148475
Availability: InStock
Rating: 4.4 (38 reviews)

Price:	US $ 3.05-6.5kg
Min Order:	200kg
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DMD Prepreg
Application:	Transformer
Type:	Insulation Paper
Chemistry:	Organic Insulation
Thermal Rating:	F 155
Material:	Nonwoven and Polyester
Color:	Red
Brand:	Yuxiang\Yohann

Product Description

Class F(155ºC)
Good mechanical properties
Good bonding performance
Reduce the noise of the transformer

General description
Yuxiang® DMD-P is a prepreg material which coating the b-stage epoxy resin on both sides of the DMD flexible composite.
Typical Application
Yuxiang® DMD-P is mainly used for layer insulation dry-type transformers, transformer copper ( aluminum ) foil glued together, thus reducing the noise of transformer.

Typical properties

Product	Construction	Thickness tolerance	Thickness	Weight	resin content		Volatile matter content		Tensile strength			BDV
Product	Construction	Thickness tolerance	Thickness	Weight	resin content		Volatile matter content			MD	TD
			mm	g/m2		g/m2		%		N/cm			KV
DMD-P	2-1-2	±10%	0.18	220.0	≥	45.0	≤	2.0	≥	90.0	70.0	≥	5.0
DMD-P	2-2-2	±10%	0.20	255.0	≥	45.0	≤	2.0	≥	130.0	100.0	≥	8.0
DMD-P	2-3-2	±10%	0.23	290.0	≥	45.0	≤	2.0	≥	140.0	110.0	≥	10.0
DMD-P	2-4-2	±10%	0.25	325.0	≥	45.0	≤	2.0	≥	160.0	130.0	≥	12.0
DMD-P	2-5-2	±10%	0.28	360.0	≥	45.0	≤	2.0	≥	200.0	150.0	≥	14.0
DMD-P	2-6-2	±10%	0.30	395.0	≥	45.0	≤	2.0	≥	210.0	200.0	≥	16.0
DMD-P	2-7.5-2	±10%	0.35	451.0	≥	45.0	≤	2.0	≥	220.0	210.0	≥	17.0
DMD-P	2-10-2	±15%	0.40	535.0	≥	45.0	≤	2.0	≥	280.0	240.0	≥	19.0
DMD-P	2-12-2	±15%	0.45	610.0	≥	45.0	≤	2.0	≥	300.0	290.0	≥	20.0
DMD-P	2-14-2	±20%	0.50	685.0	≥	45.0	≤	2.0	≥	350.0	320.0	≥	25.0

Shelf life
≤15ºC 12 months
≤25ºC 6 months
Form of delivery

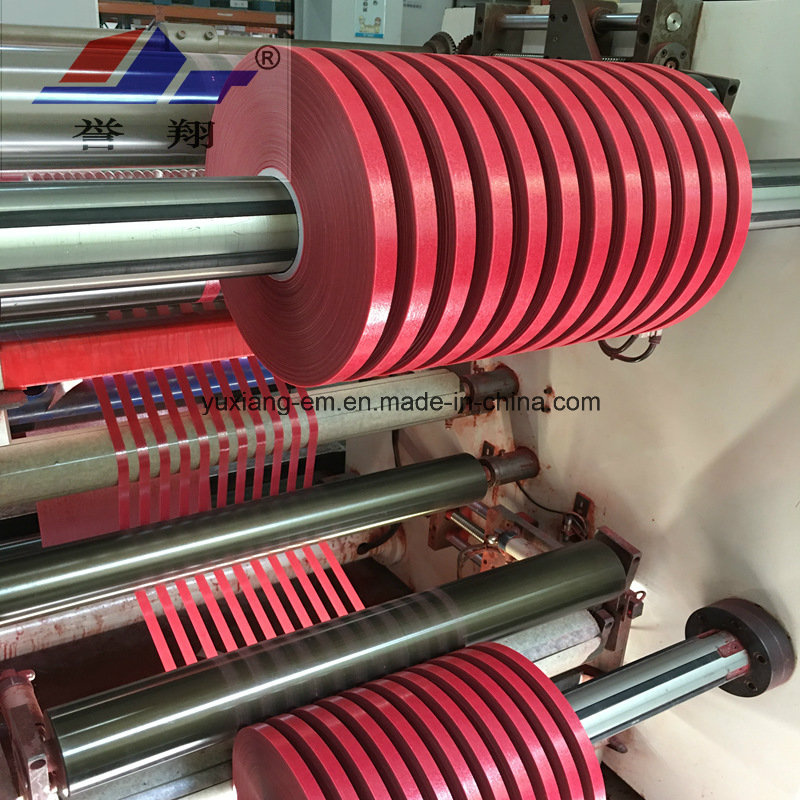

Jumbo rolls: 25~200kg/rol, 76mm paper coresStrips: 6mm~914mm width according to customer requirements, maximum roll diameter 400mm.
