| Prod Model: |
MPS9335C 10-300KVA Modular UPS |
| Transfer Time: |
0ms,15ms(Eco Mode) |
| Current Crest Ratio: |
3:1 |
| Inverter Output Voltage: |
380/400/415VAC 3-Phase 4-Wire |
| Frequency Range: |
40-70Hz |
| Input Frequency Range: |
50/60Hz |
| Capacity: |
30-300kVA |
| Frequency: |
High Frequency Online UPS |
| UPS Application: |
Industry |
| Parallel Working: |
4 PCS Modular UPS |
| LCD Display: |
13 Types Languages |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Sorotec |
Product Description

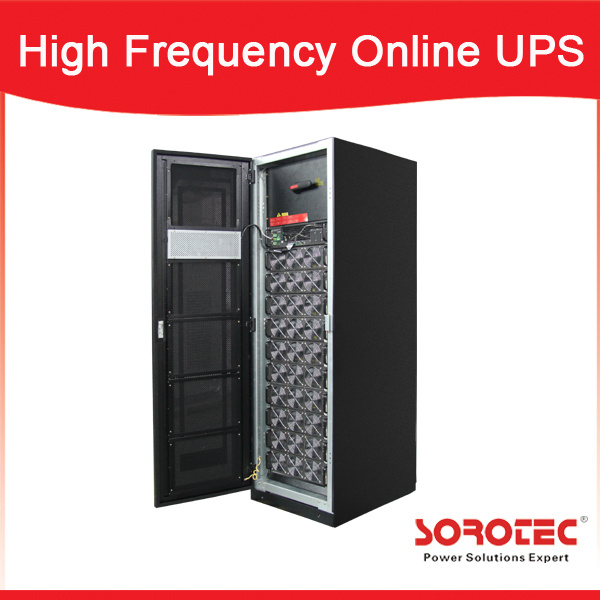

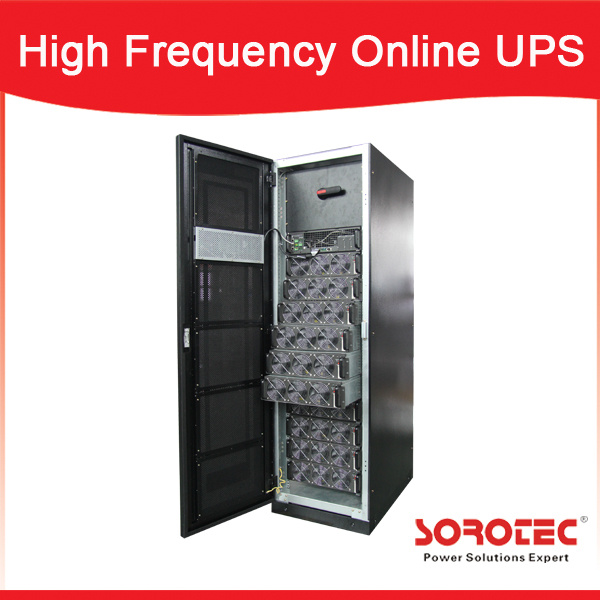

Flexible Modular Parallel Redundancy Online UPS 30kVA - 300kVAProduct Descriptions:SOROTEC MPS9335C 10KVA-300KVA (3Ph in /3Ph out) Series is a high frequency Online UPS with flexible Modular Structure. Special for large power loads to achieve Online Capacity Expasion and Maintenance. Easy to removed at runtime and installed without affecting the system operation and output.When users want to add load to the UPS,only adding the required number of modulars for expansion.It help customer to save the costs for initial equipment purchasing and future expansion.
When user estimated UPS capacity,often undestimated or high expected.MPS9335C series power can
solve the above problems effectively.
Key Features: 1.
Superior energy saving and environment-friendly: Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99,input THDi<3%
2.
Superior capability of powering load:Output PF is 1.0, no need of power deration with load of leading or lagging PF
3.
Easy-to-install:Top or bottom cabling, no need of input cabling cabinet.
4.
Easy-to-maintain:Full front access, UPS, failed part can be replaced shortly
5.
Easy-to-modify:The number of battery cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover, the battery cell can be replace in time when it fails without interrupting the normal operation of UPS.
6.
6-inch extra large LCD can display 12 language(Chinese,English,Russian,Spanish,French and so on )
Applications :IDC Internet Data Center, computing center, ISP (Internet Service Provider ), Telecom, Finance bank and securities, Tax, hospital system, industrial automation, precision equipment, etc.
Technical Specifications of Modular UPS, MPS9335 30-300KVA
Model | MPS9335C 30-300KVA |
| Capacity | 30-300KVA |
| Main input | |
| Input voltage | 380V/400V/415AC(Optional South America 208v) |
| Input Frequency Range | 50/60Hz |
| Power Factor | Full load>0.99 ,Half load >0. 98 |
| THDi | THDi <3% |
| Input power soft-start fantion | 5-30s settable |
| Input Voltage Ranges | 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40% |
| Frequency Range | 40-70Hz |
| Battery | |
| Battery Voltage | ±240VDC(Default),12V Battery30-40pcs can be choose |
| Charge Voltage accuracy | ± 1% |
| Bypass | |
| Bypass Input voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Ranges | Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software |
| Overload Capacity | 150%,long term operation,150%1000% 100ms |
| Output | |
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Accuracy | ± 0.5%(balanced load), ± 1% (unbalanced load) |
| THDi | THD<1%(linear load), THD<3%(nonlinear load) |
| Power Factor | 1.0 |
| Three Phase Angle accuracy | 120°c ± 0.5°c |
| Current Crest Ratio | 3:1 |
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms |
| Transfer Time | 0ms,15ms(ECO Mode) |
| System | |
| Frequency | 50Hz/60Hz (Settable) |
| Mains synchronization range | ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz |
| Protection Level | IP20 |
| Communication Ports | RS232,RS485,dry contact,SNMP card,EPO,generator port |
| System efficiency | > 96% at load above 50%, >95% at load above 25% |
| Operation Temperature | 0-40 °c |
| Storage Temperature | -25 °c -70 °c (without battery) |
| Humidity | 0-95%(no-condensing) |
| Noise(dB) | 55-62dB,Adjusted with load |
| | 5 module cabinet | module :RMS050/10, RMS100/20, RMS150/30 | 150KG |
| | 10 module cabinet | module :RMS100/10, RMS200/20, RMS300/30 | 150KG |
| | module :PM10 | 10KVA power module :20KG |
| Weight | module :PM20 | 20KVA power module :21KG |
| | module :PM30 | 30KVA power module :32KG |
| Dimendion(W XD XH)mm | 5 module cabinet | 600X800X1400 |
| 10 module cabinet | 600X800X2100 |
| power module | 440X132X660(10KVA/20KVA/30KVA) |
