Flexible Pi Heating Film Kapton Polyimide Heater with Flex Circuits 200W

Name: Flexible Pi Heating Film Kapton Polyimide Heater with Flex Circuits 200W
Brand: all-electronics-online.com
SKU: 837439625
Availability: InStock
Rating: 4.7 (128 reviews)

Price:	US $ 2-10/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY-PH005
Color:	Orange
Max Temperature:	250 Degree

Product Description

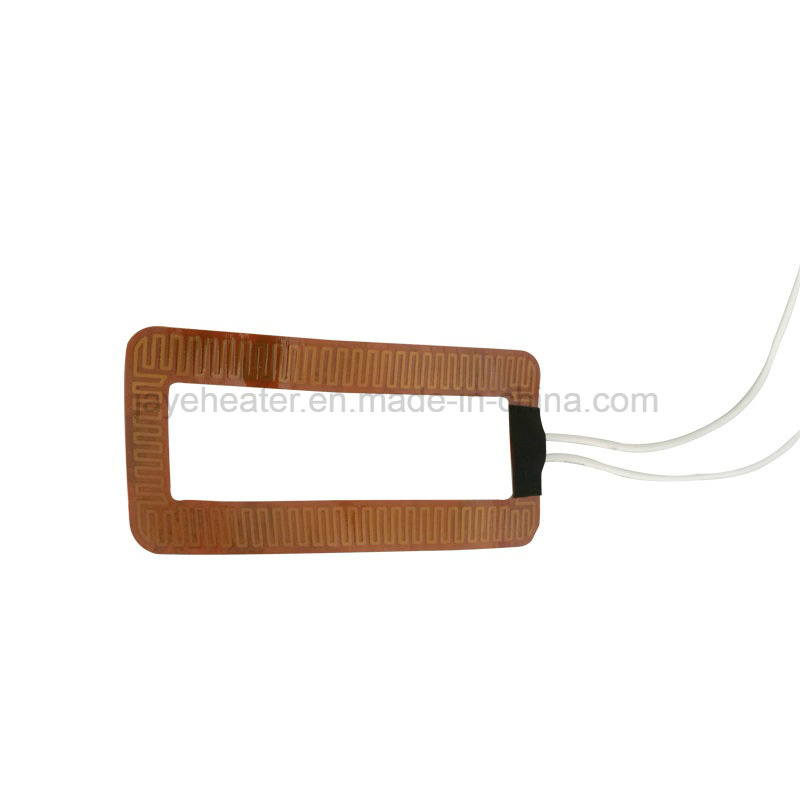

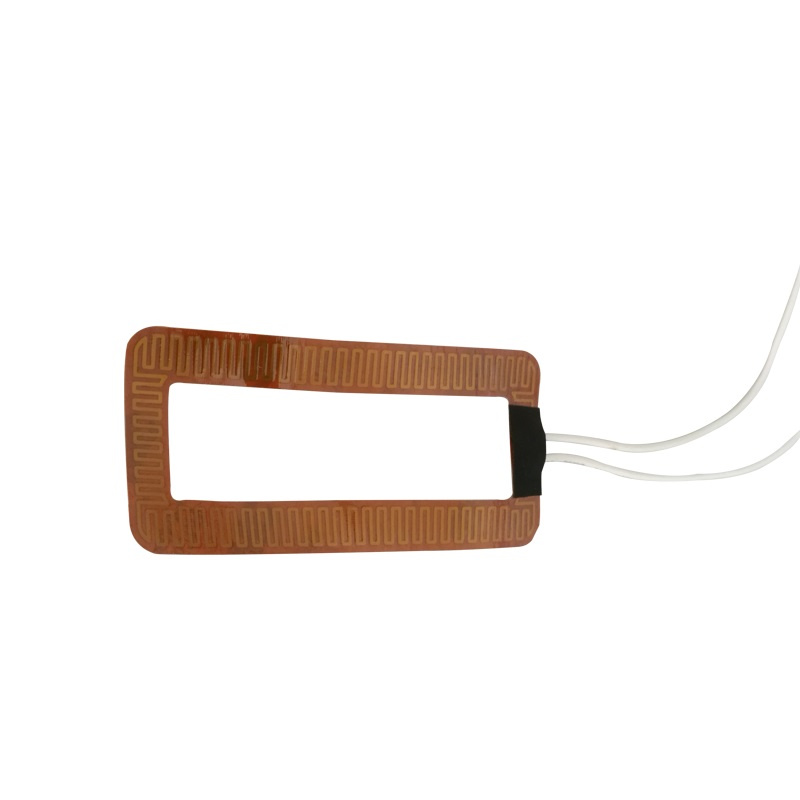

PI polyimide film heater

Polyimide thermo foil heater are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.

Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation.

Flexible heating film is a clear amber colored polyimide film. The process for making flexible heating film is similar to that of Etched Foil Silicone heaters. It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -185 degree celsius to 200 degree Celsius
Customize 12V,24V,36V 3D printer flexible heating film with CE certification,and we usually say it is polyimide heaters.

Parameters

Description	Parameter
Voltage range	1.5v~400v
Power density range	0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2)
Using temperature range	-60~200°C(-140~392°F)
Width range	10mm~500mm(0.39"~19.68")
Length range	10mm~1800mm(0.39"~70.86")
Thickness range	Standard:0.126~0.266mm(0.005"~0.01")
Plug	Chinese,British, American, European and so on
Quality guarantee	1 year
Life	more than 4 years(normal useful)

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
