| Prod Model: |
flexible cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Produceing Experience: |
15 Years |
| Size: |
Customized According to Your Request |
| Customized: |
Yes |
| OEM: |
Yes |
| Export Experience: |
Malaysia,Indonesia,UAE,South Africa,Russia,South a |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Moving Usage,Fixed Usage |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
Product Description

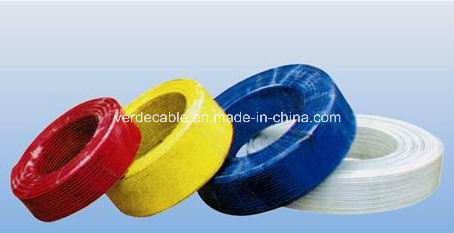

Hot sale to Southeast Asia, Australia PVC Insulated Flexible wireRated voltage 300/500V,450/750V Flexible Wire cable
Conductor class: class5 class6
Conductor material:Stranded Copper or Stranded Tinned Copper
Insulation:PVC
Specification:
Core Nos.: 1core, 2core, 3core, 4core,5core
Nominal Section Area:0.5mm2,0.75mm2,1.0mm2,1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2........240mm2
more size and specification as per your customized
Color:
Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's request
Packing:
1.100meter per roll then put into plastic bags or carton
2. at least 500meter per drum
Technical data
1).Single core Flexible cable (H07V-K Cable)
2) Technical data as follows
| Standard:GB/T 5023-2008,IEC60227,228 |
| Description:general single core Flexible wire |
| Type in National standard:60227 IEC 02(RV) 450/750V |
Size
(mm2) | Conductor class | Conductor Structure
Nos /dia (mm) | Nominal Thickness of Insulation
mm | Outer insulation diameter
mm | D.C Resistance of conductor
Ω/km | Calculated Weight
kg/km |
| 1.5 | 5 | 30/0.25 | 0.7 | 3.1 | 13.3 | 20.9 |
| 2.5 | 5 | 49/0.25 | 0.8 | 3.7 | 7.98 | 32.5 |
| 4 | 5 | 56/0.30 | 0.8 | 4.3 | 4.95 | 48.6 |
| 6 | 5 | 84/0.30 | 0.8 | 5.2 | 3.30 | 70.6 |
| 10 | 5 | 77/0.40 | 1.0 | 6.7 | 1.91 | 122.9 |
| 16 | 5 | 119/0.40 | 1.0 | 7.8 | 1.21 | 176.3 |
| 25 | 5 | 189/0.40 | 1.2 | 9.7 | 0.780 | 272.0 |
| 35 | 5 | 264/0.40 | 1.2 | 11.3 | 0.554 | 374.5 |
| 50 | 5 | 378/0.40 | 1.4 | 13.1 | 0.386 | 534.5 |
| 70 | 5 | 336/0.50 | 1.4 | 15.6 | 0.272 | 739.2 |
| 95 | 5 | 456/0.50 | 1.6 | 17.6 | 0.206 | 969.9 |
| 120 | 5 | 576/0.50 | 1.6 | 19.3 | 0.161 | 1186.2 |
| 150 | 5 | 720/0.50 | 1.8 | 22.8 | 0.129 | 1508.5 |
| 185 | 5 | 888/0.50 | 2.0 | 24.3 | 0.106 | 1862.5 |
| 240 | 5 | 1184/0.50 | 2.2 | 26.6 | 0.0801 | 2372.9 |
|
|
|
|
|
|
|
|
| Standard:GB/T 5023-2008;GB/T 19666-2005,IEC60227,228 |
| Description:PVC insulated Fire Resistant Flexible Wire Cable |
| Type:NH-RV 450/750V |
| Size | Conductor class | Conductor Structure
Nos /dia (mm) | Nominal Thickness of Insulation
mm | Outer insulation diameter
mm | D.C Resistance of conductor
Ω/km | Calculated Weight
kg/km |
| 1.5 | 5 | 30/0.25 | 0.7 | 3.56 | 13.3 | 25.6 |
| 2.5 | 5 | 49/0.25 | 0.8 | 4.2 | 7.98 | 38.2 |
| 4 | 5 | 56/0.30 | 0.8 | 4.77 | 4.95 | 55.0 |
| 6 | 5 | 84/0.30 | 0.8 | 5.66 | 3.30 | 77.8 |
| 10 | 5 | 77/0.40 | 1.0 | 7.16 | 1.91 | 131.8 |
| 16 | 5 | 119/0.40 | 1.0 | 8.26 | 1.21 | 186.5 |
| 25 | 5 | 189/0.40 | 1.2 | 10.16 | 0.780 | 283.8 |
| 35 | 5 | 264/0.40 | 1.2 | 11.76 | 0.554 | 388.3 |
| 50 | 5 | 378/0.40 | 1.4 | 13.56 | 0.386 | 549.8 |
| 70 | 5 | 336/0.50 | 1.4 | 16.1 | 0.272 | 756.5 |
| 95 | 5 | 456/0.50 | 1.6 | 18.1 | 0.206 | 988.1 |
| 120 | 5 | 576/0.50 | 1.6 | 19.8 | 0.161 | 1205.7 |
| 150 | 5 | 720/0.50 | 1.8 | 23.3 | 0.129 | 1529.9 |
| 185 | 5 | 888/0.50 | 2.0 | 24.8 | 0.106 | 1883.5 |
| 240 | 5 | 1184/0.50 | 2.2 | 27.1 | 0.0801 | 2394.5 |
|
|
|
|
|
|
|
Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:
Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.
Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.
We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.
New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.
We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.
Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.
Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
