Flexible Rogowski Coil Current Transformer (Cy-Rct02)

Name: Flexible Rogowski Coil Current Transformer (Cy-Rct02)
Brand: all-electronics-online.com
SKU: 777454505
Availability: InStock
Rating: 4.3 (137 reviews)

Price:	US $ 8.9-10/Piece
Trade Terms:	FOB,CFR
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-RCT02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	25-20k Hz 45-600Hz
Insulation Class:	Cat III
Customized:	Customized
Accuracy:	<1%(45-65Hz)
Current Range:	10A ~30ka / 10A ~6000A
Power Supply:	10-30VDC,30mA Max.
Coil Structure:	Toroidal
Color:	Customized
Max Output:	3.0V AC Max
Standards Safety:	ISO9001: 2001 ,600V Cat III
Application:	Rectifier
Phase:	Single
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chuangyin

Product Description

The 'RCT02 Flexible Rogowski coil current transformer' are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.

Features:
Flexible and light weights_
Easy & quick installation in tight spaces
No danger from open-circuited secondary
No core saturation or damage if overloaded
excellent linearity
Multi- size are available

Applications:
Power quality monitoring
Power meters
Smart logger
Energy sub-meters
Distributed measurement systems

Dimensions:
Unit:mm

Dimensions (mm)	CY-RCT02-120 CY-RCTA02-120	CY-RCT02-190 CY-RCTA02-190	CY-RCT02-305 CY-RCTA02-305
Window A	120	190	305
Coil OD B	145	205	335
Coil Length C	400	600	1000
Output connection	1.UL2586-ESB 224AWG L=150cm (As required) 2.Coax terminated with safety male BNC connector L=300cm (As required) 3.UL2586-ESB 224AWG L=150cm (As required) with integrator

Electrical Parameter:

Model No. Date		CY-RCT02-120	CY-RCT02-190	CY-RCT02-305	CY-RCTA02-120	CY-RCTA02-190	CY-RCTA02-305
Current Range		10A--30kA			10A--6000kA
Frequency		25Hz--20kHz			45Hz--600Hz
Output voltage	Rated current	1000A	2000A	3000A	1000A/1500A/2000A/3000A	2000A/3000A/5000A/6000A	3000A/4000A/5000A/6000A
	50Hz	100mV AC	200mV AC	300mV AC	333mV
					1mV/A@1000------3000A (0.5mV/A@4000------6000A)
Max output		/			3.0V AC Max
Accuracy		<1% @25(45--65Hz)			<1% @25(45--65Hz)
Phase error		<60 @25(45--65Hz)			<60 @25(45--65Hz)
Output sensitivity		+ - 2% Max(No Calibration)			1%
		+ - 0.5% @25(45--65Hz)
Linearity error		+ - 0.2% (10%--100% I1n)			+ - 0.2%
Position sensitivity		+ - 2%			+ - 2%
External Influence		+ - 2% Max			+ - 1.5% Max
Power Supply		/			10-30VDC,30mA Max.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

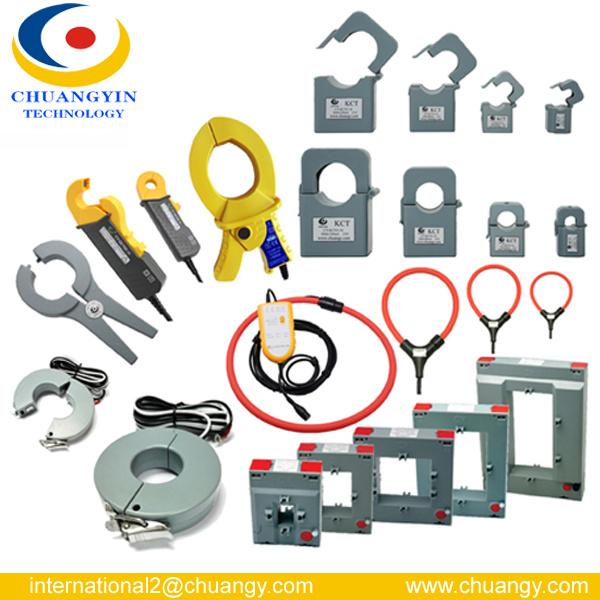

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.
